Square Stainless Steel Storage Tank
- Voltage:
- customized
- Material:
- SUS304/316L
- Processing Types:
- liquid
- Power(w):
- 0.75-75KW
- Heating:
- electric ,steam
- Dimension(I*w*h):
- customized
- Technics:
- Forged
- Type:
- hold-up vessel
- Customization:
- Available
- After-sales Service:
- Online/Spare Parts/Life-Long Aftersale Service
- Warranty:
- 1 Year
- weight (kg):
- 800 KG
PRODUCT OVERVIEW

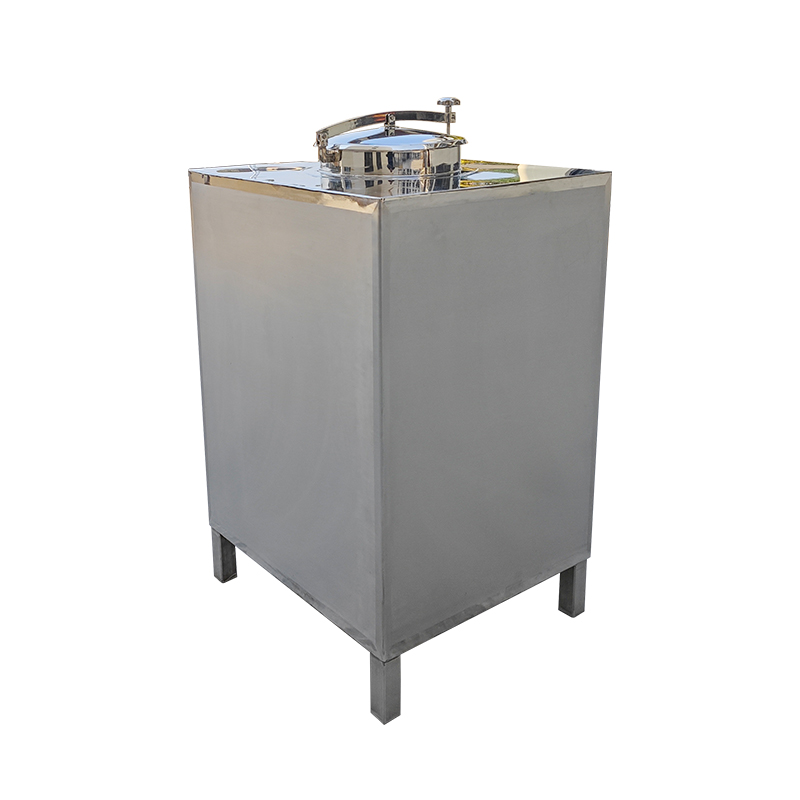

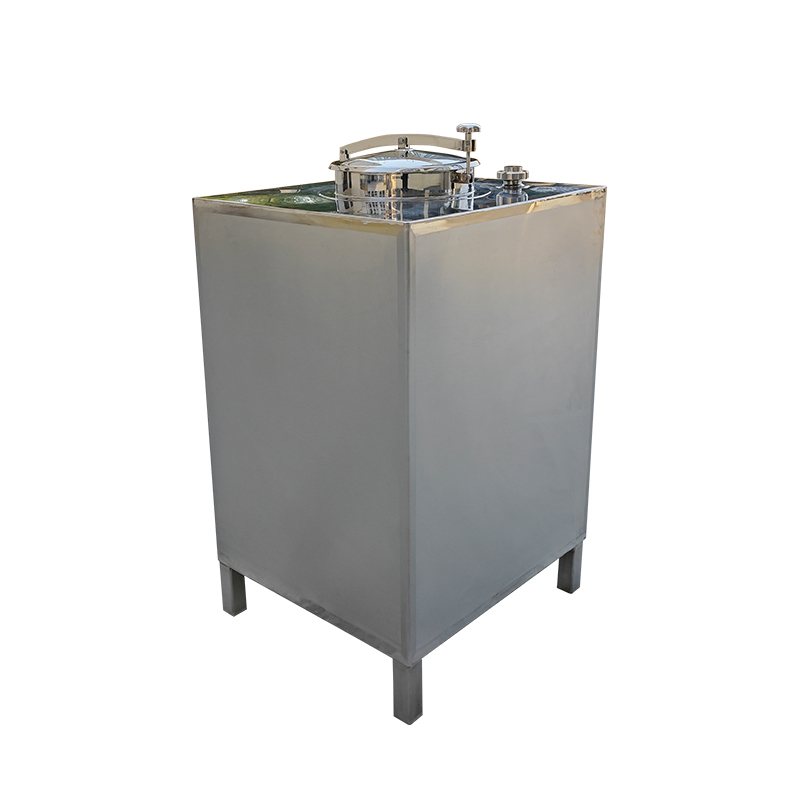

A square stainless steel storage tank. The rectangular body saves floor space where the layout is tight or where tanks must be packed closely. A round quick-opening manway lid sits on top, three round connections are grouped on the front face, and the bottom outlet is fitted with a ball valve. The tank stands on short legs. Suited to small-batch storage and blending in food, beverage and personal care production.
STRUCTURE AND CONSTRUCTION

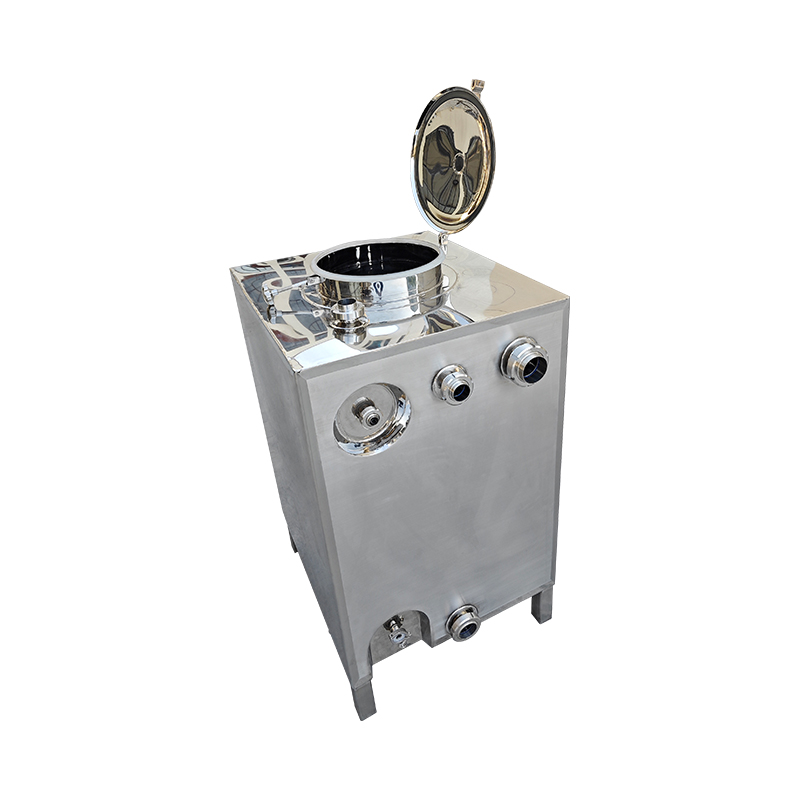

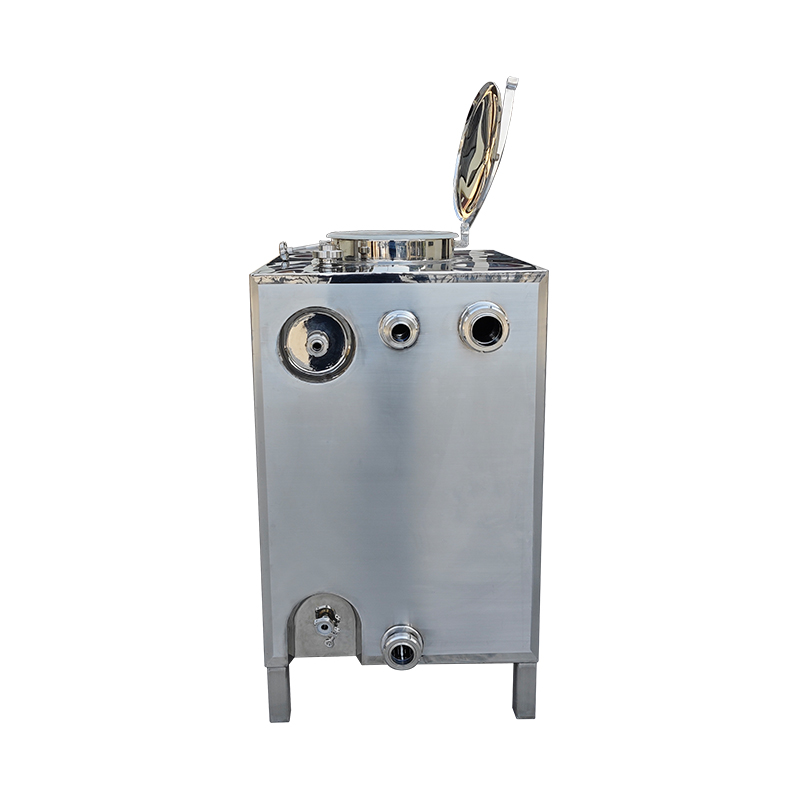

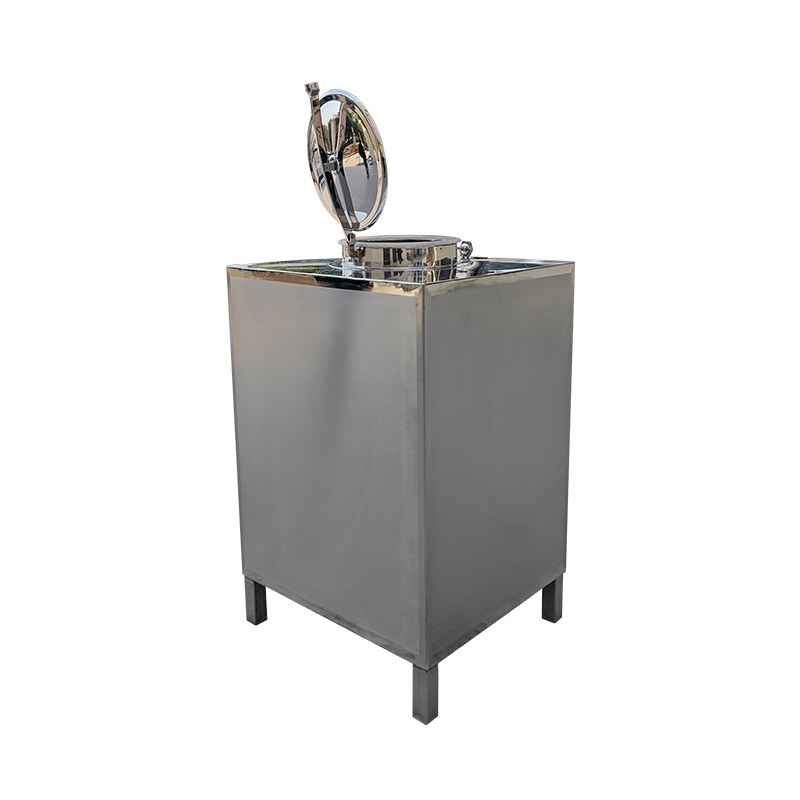

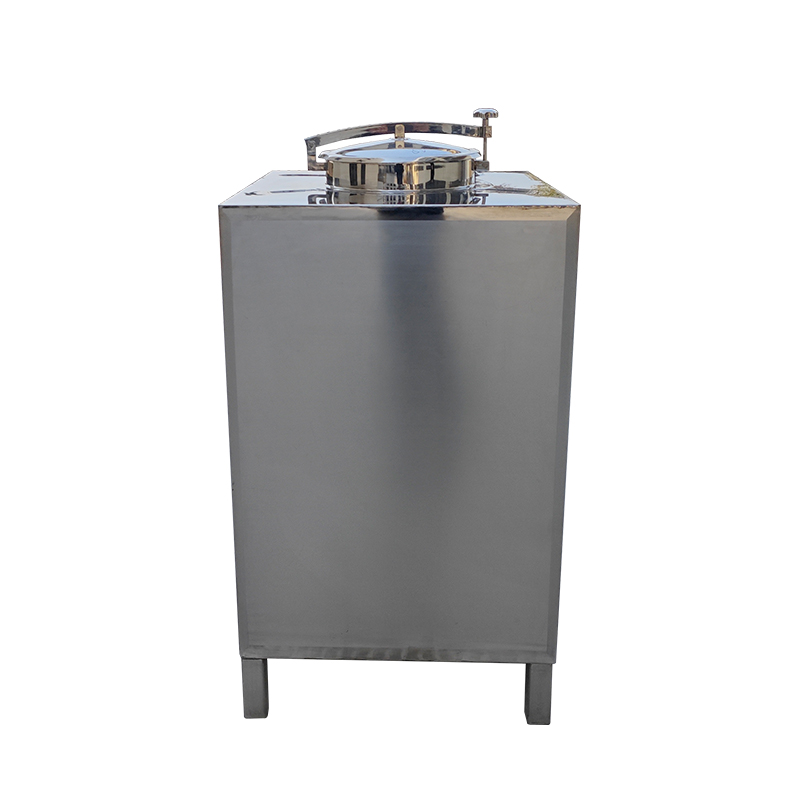

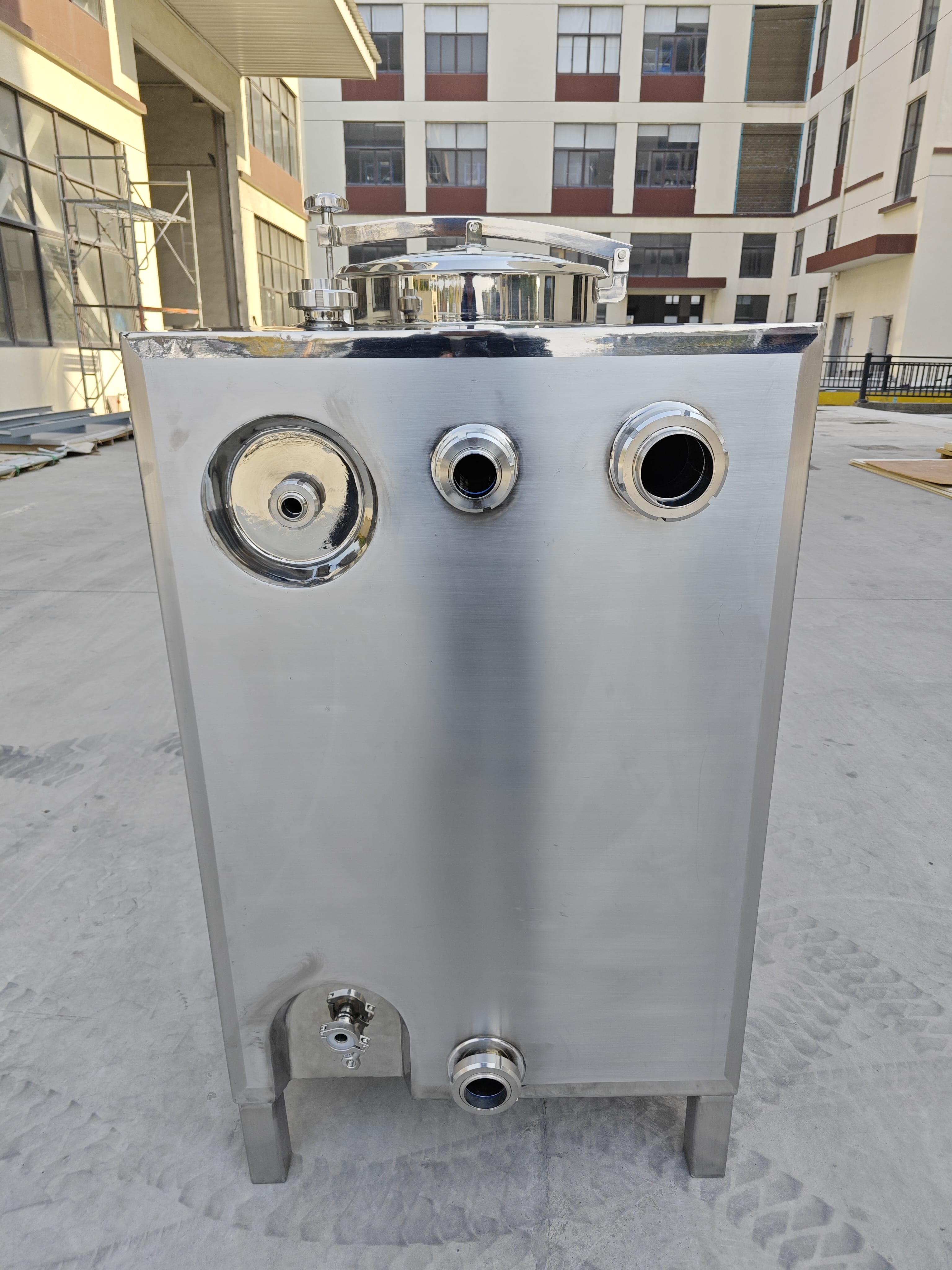

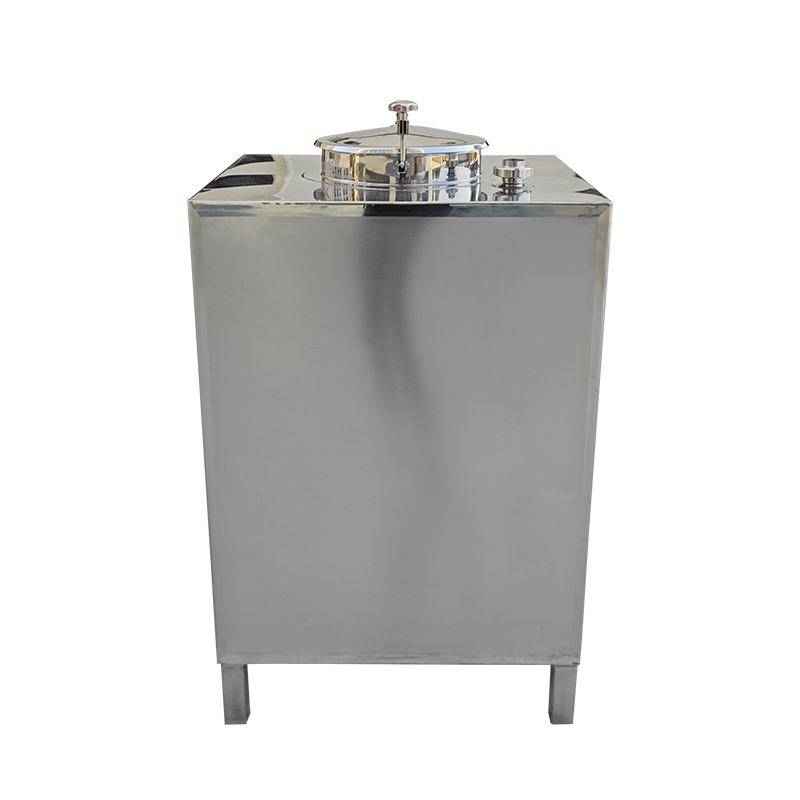

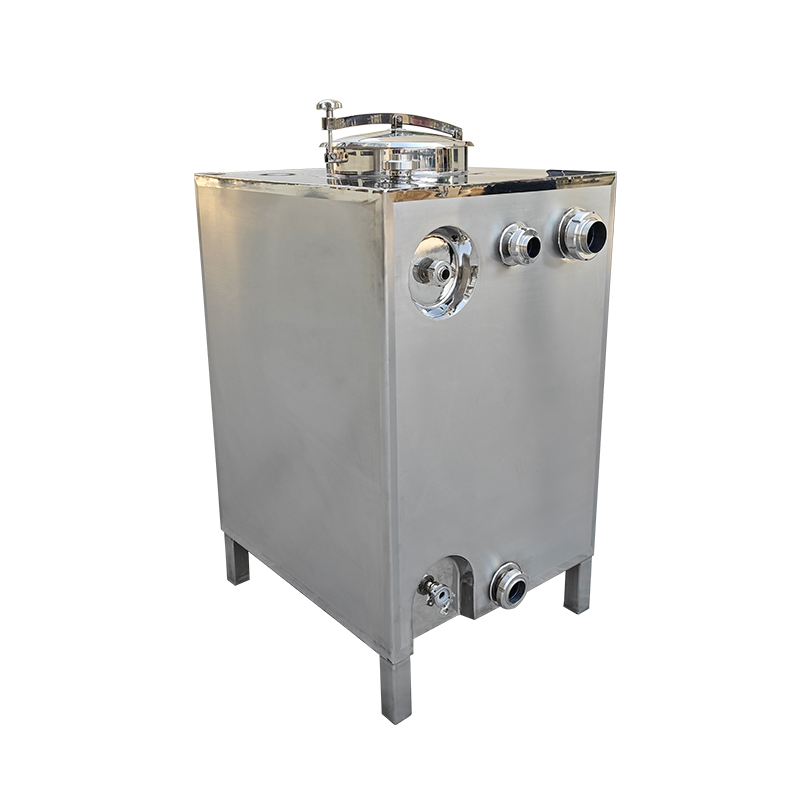

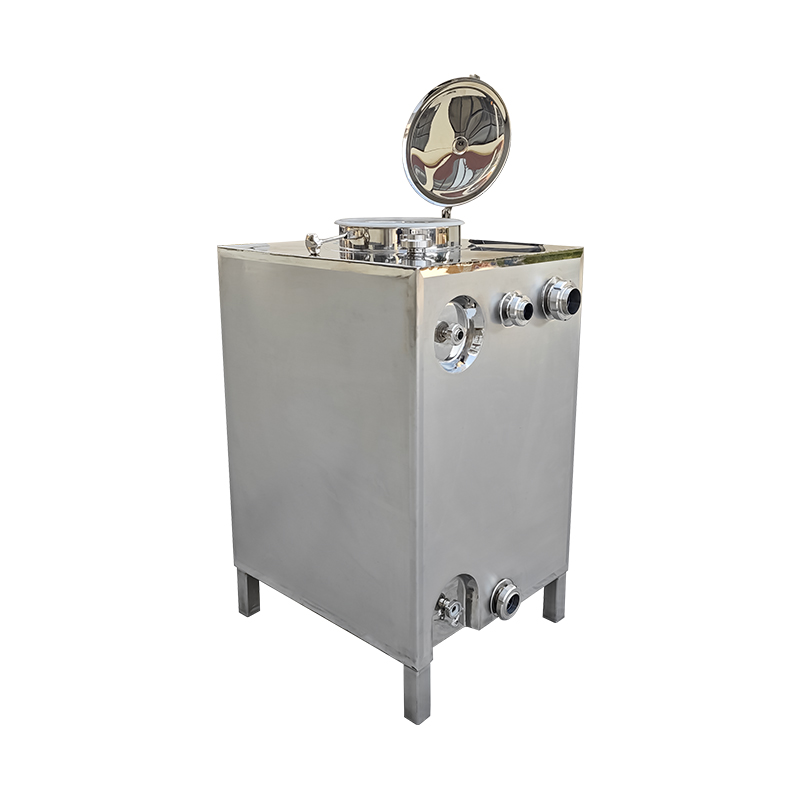

The body is rectangular. Product-contact surfaces are SS304 or SS316L. The round quick-opening manway lid on top is closed with swing bolts and gives access for charging, cleaning and inspection. Three round connections are grouped on the front face, two of them capped, and the bottom outlet is fitted with a ball valve. The tank stands on four short square-tube legs. Insulation, heating and additional connections can be added as required.
VISIBLE CONFIGURATION (FROM PHOTOS)
| Body form | Square (rectangular) body |

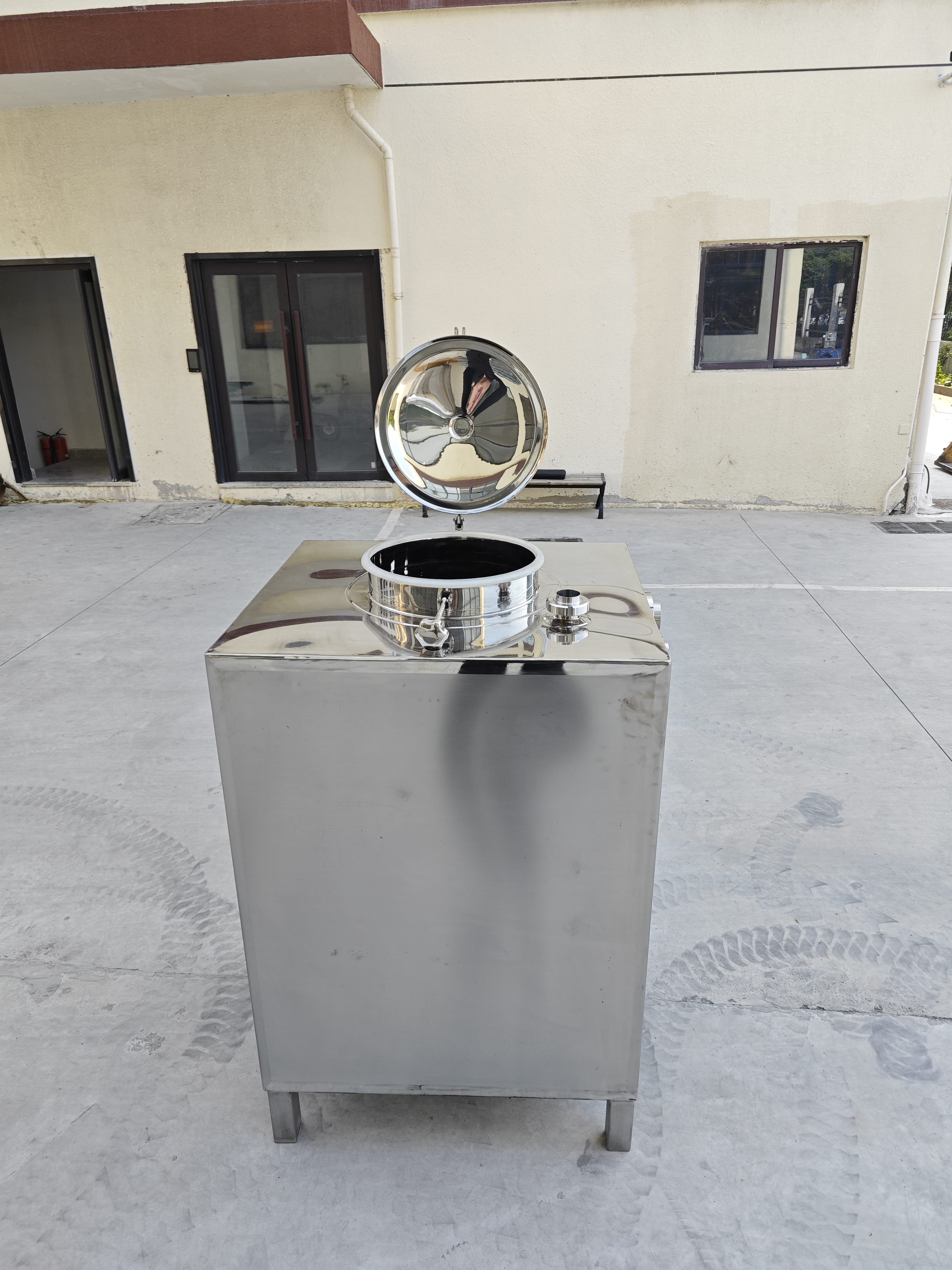

| Top | Round quick-opening manway lid, swing-bolt clamped, with handle |

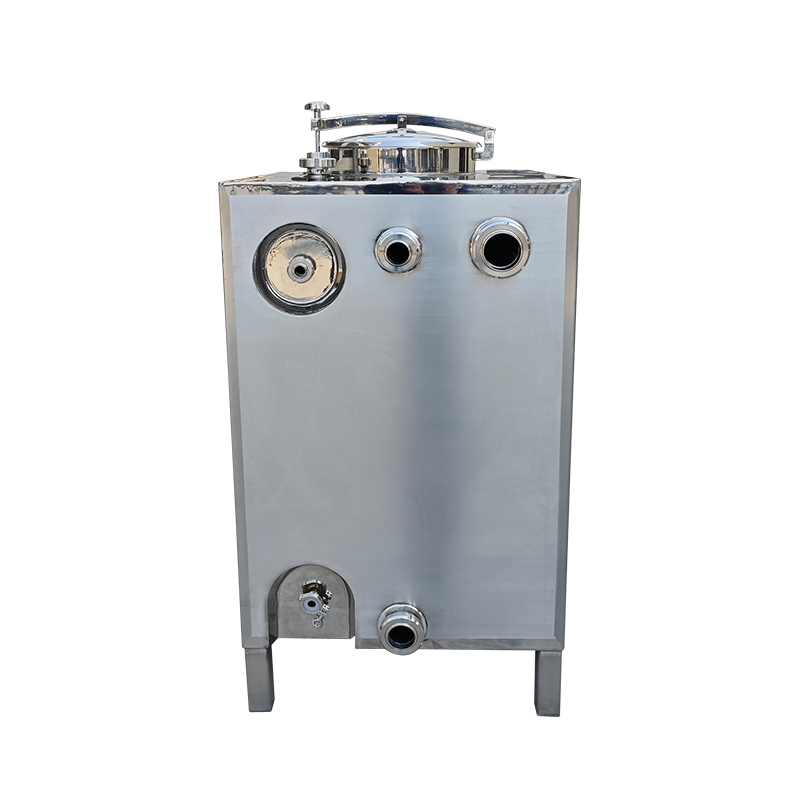

| Front ports | Three round connections, two of them capped |
| Outlet | Bottom outlet with ball valve, plus one further connection |
| Support | Four short square-tube legs |
| Finish | Mirror-polished outer surface |
Note: the items above are structural features that can be confirmed from the product photographs. Volume, tank dimensions, wall thickness, design pressure and heating power are confirmed per order.
