Electric Heating Stainless Steel Storage Tank
- Capacity:
- 50-15000L
- Voltage:
- 220/380v,customized
- Material:
- stainless steel SS304 or SS316L
- Power(w):
- 22kw
- Customization:
- Available
- After-sales Service:
- Online/Spare Parts/Life-Long Aftersale Service
- Warranty:
- 1 Year
- Function:
- blending,storage and mixing
- Heating Method:
- by gas,by steam,by electric
- weight (kg):
- according to different capacity
PRODUCT OVERVIEW

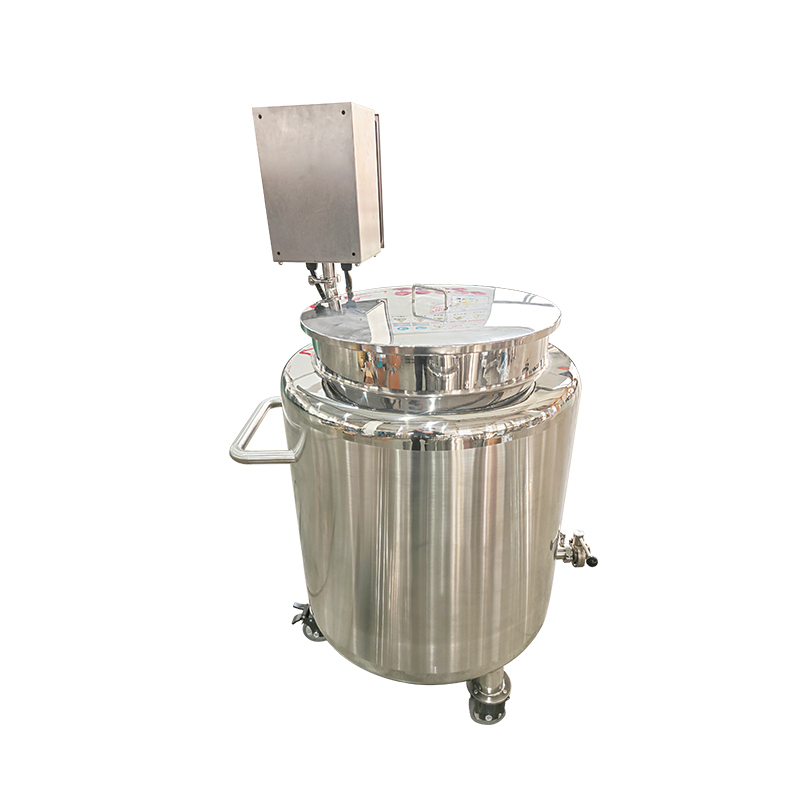

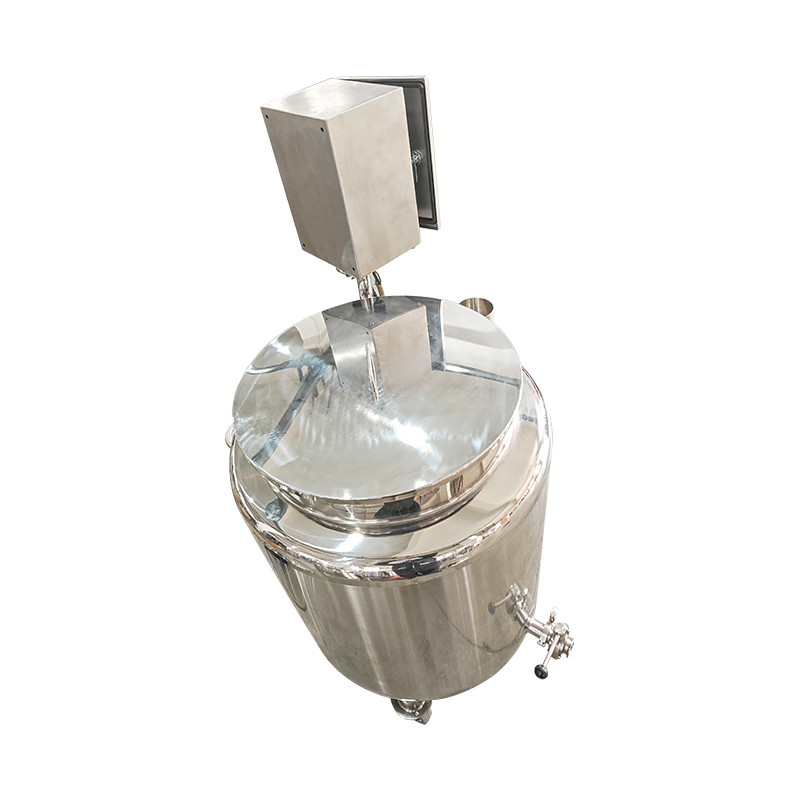

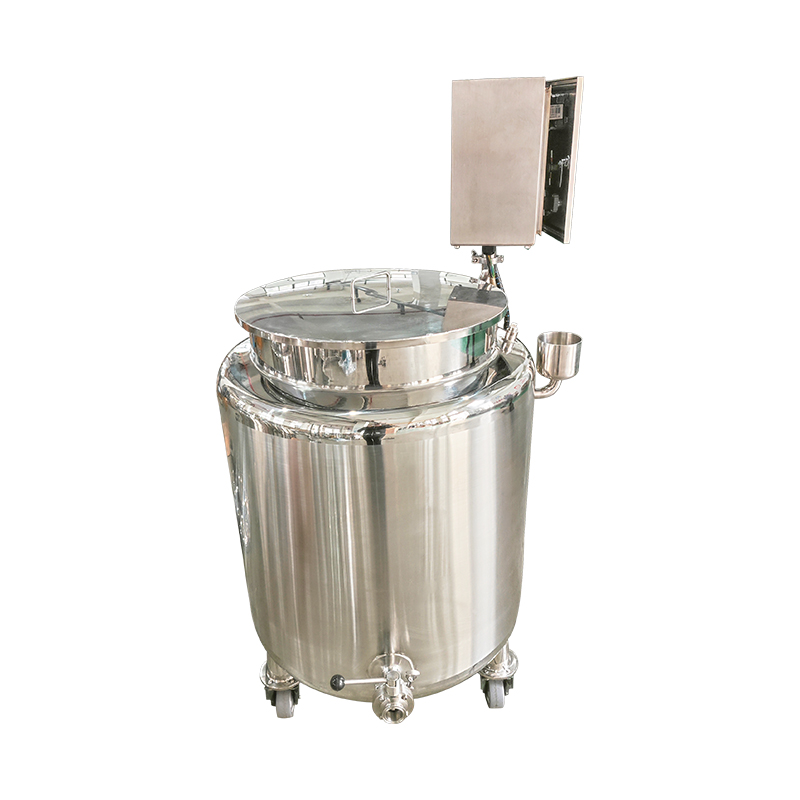

An electric heating storage tank built in three layers: an inner product-contact shell, a heating layer and an insulated stainless-clad outer shell. Temperature is set and displayed on a stainless steel control box mounted on the tank side. Suited to products that must be held warm or heated during storage, such as syrups, oils, detergents and cosmetic liquids. The mobile version can be moved between production areas.
STRUCTURE AND CONSTRUCTION

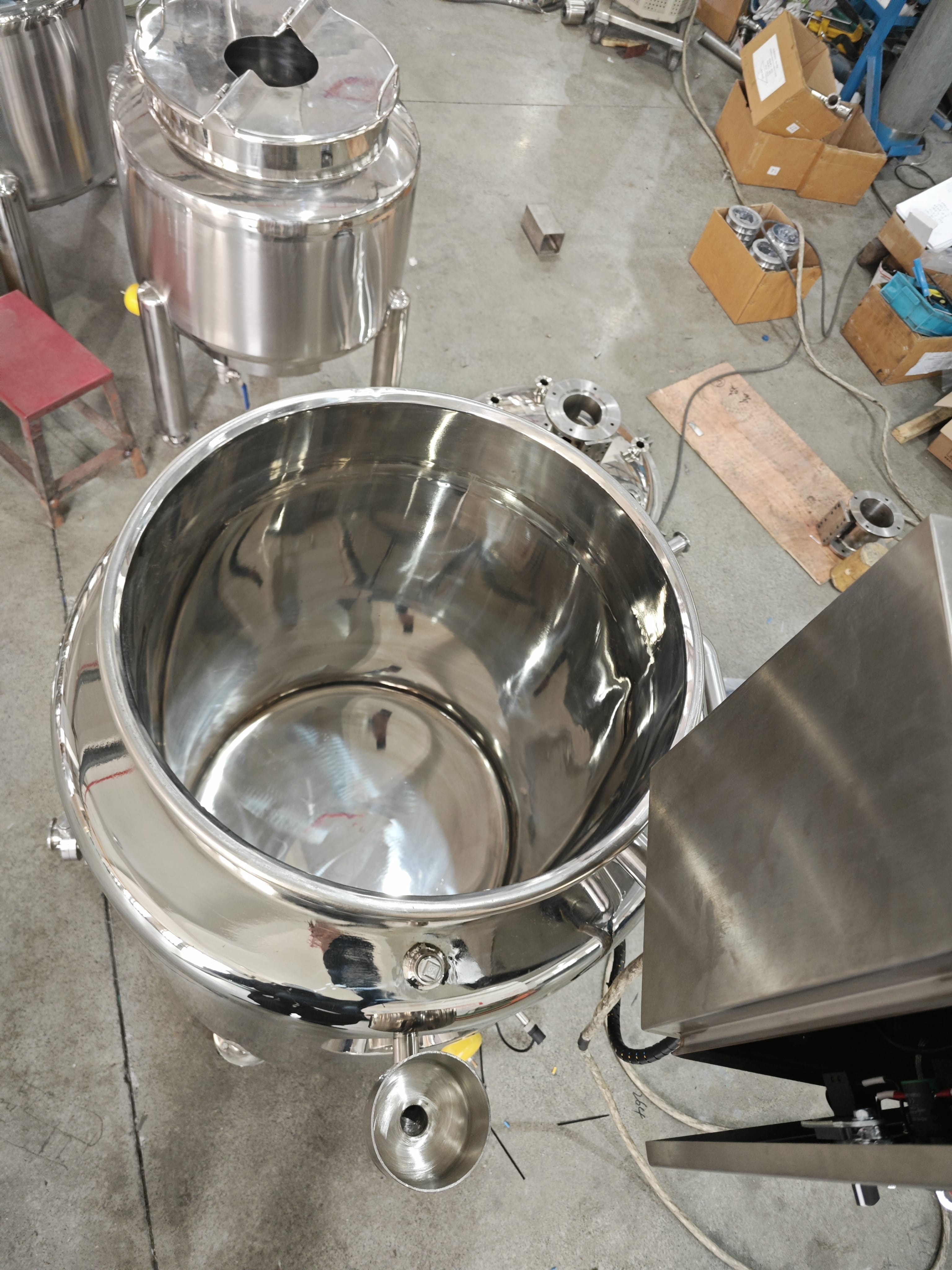

Three-layer construction: the inner shell contacts the product, the heating layer raises and holds temperature, and the insulation reduces heat loss while lowering the outer surface temperature. A stainless steel control box with a digital temperature controller and switch indicators is mounted on the tank. The tank is fitted with a quick-opening clamped lid, side handles and a bottom outlet valve, and can be supplied on castors or on fixed legs.
VISIBLE CONFIGURATION (FROM PHOTOS)
| Body form | Vertical cylinder with a clad, layered shell |
| Top | Round quick-opening lid, latch clamped, with handle |
| Connections | Upward-facing port on the upper body; small clamp connection below |
| Outlet | Lower outlet with ball valve |
| Electrical | Electrical terminals with yellow caps at the bottom, cabled to the control box |

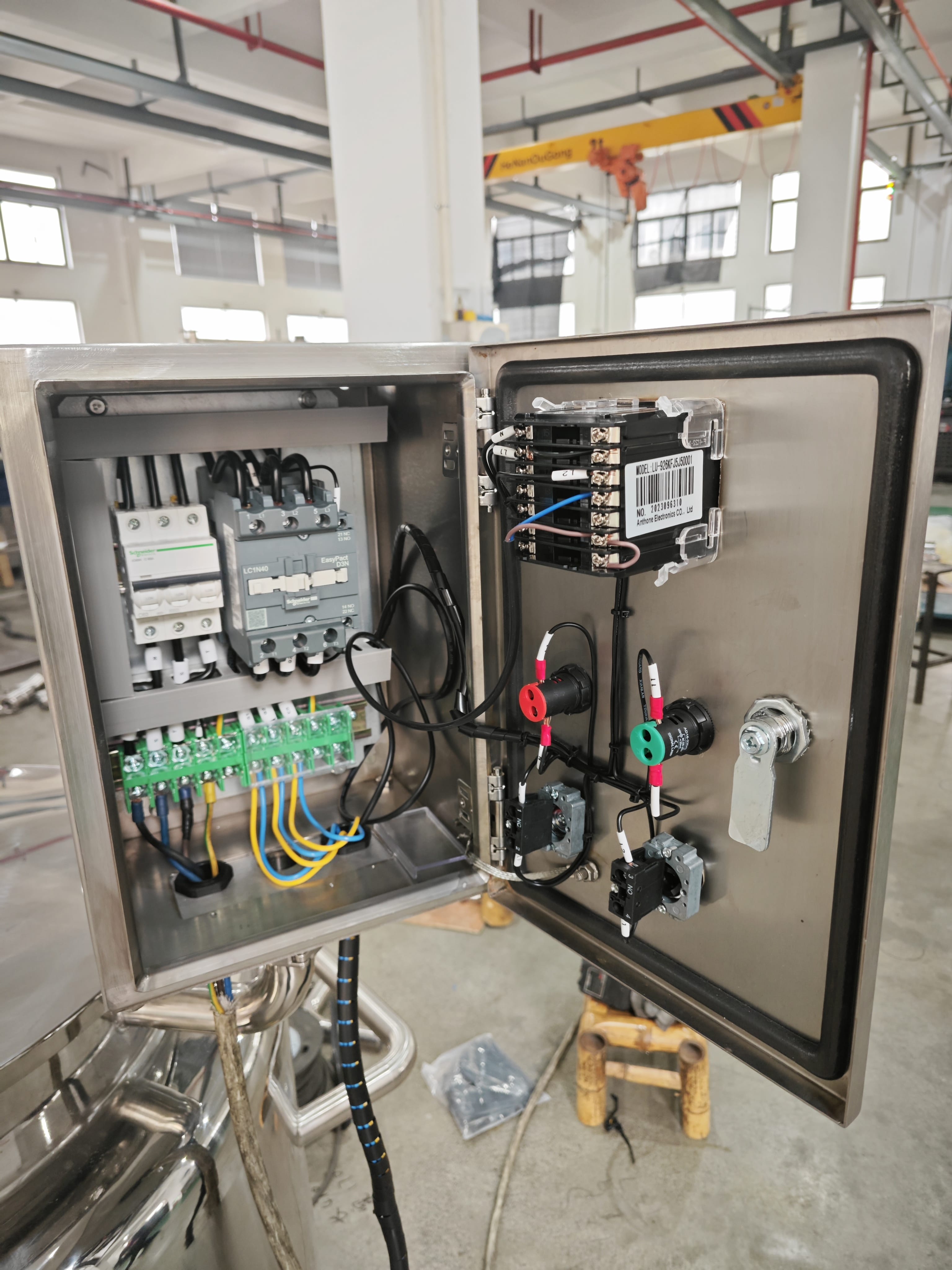

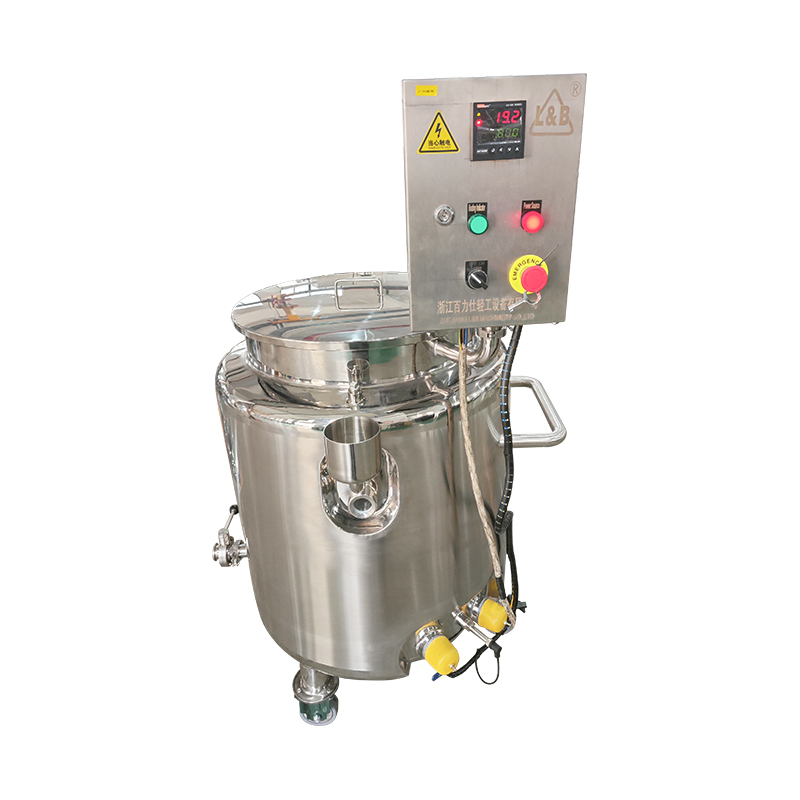

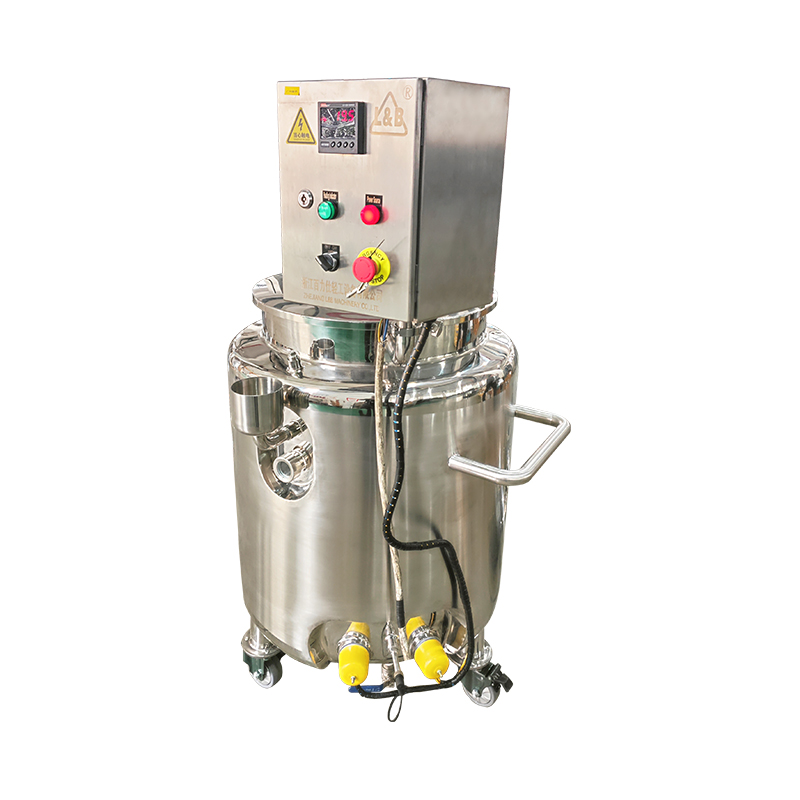

| Control box | Side-mounted stainless box with digital controller, push buttons and indicator lights |
| Support | Tubular legs with castors |
| Finish | Mirror-polished outer surface |
Note: the items above are structural features that can be confirmed from the product photographs. Volume, tank dimensions, wall thickness, design pressure and heating power are confirmed per order.
