Large Vertical Stainless Steel Storage Tank
- Material:
- Stainless steel SS304 SS316
- Processing Types:
- Water
- Feature:
- Adjustable Legs, Double Wall, Temperature Control
- Power(w):
- as per need
- Dimension(I*w*h):
- as per need
- Type:
- vertical,horizontal
- Customization:
- Available
- After-sales Service:
- Online/Spare Parts/Life-Long Aftersale Service
- Warranty:
- 1 Year
- Key Selling Points:
- Easy to Operate
- weight (kg):
- 300
PRODUCT OVERVIEW

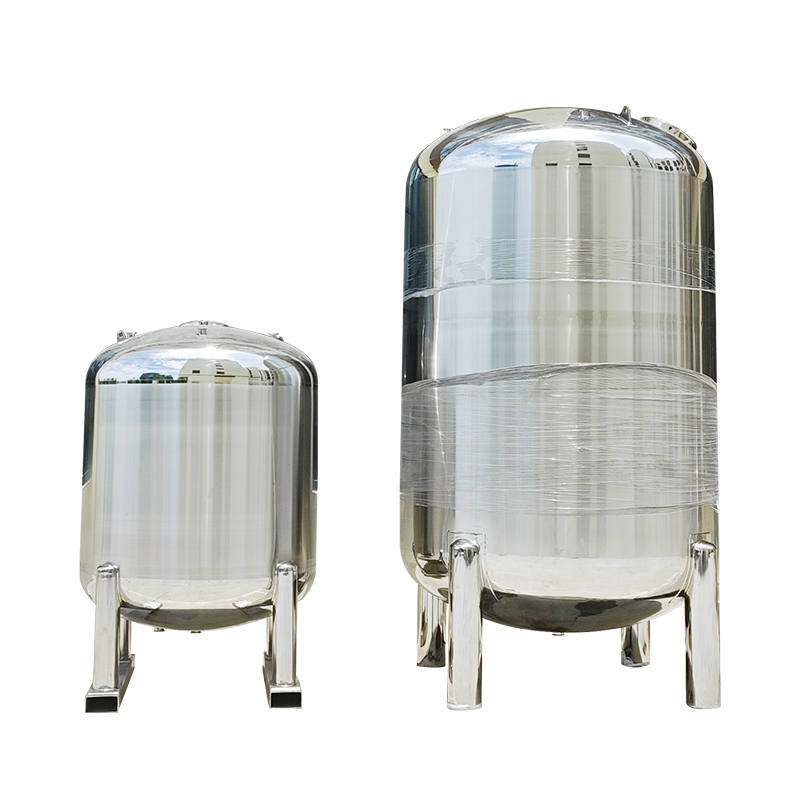

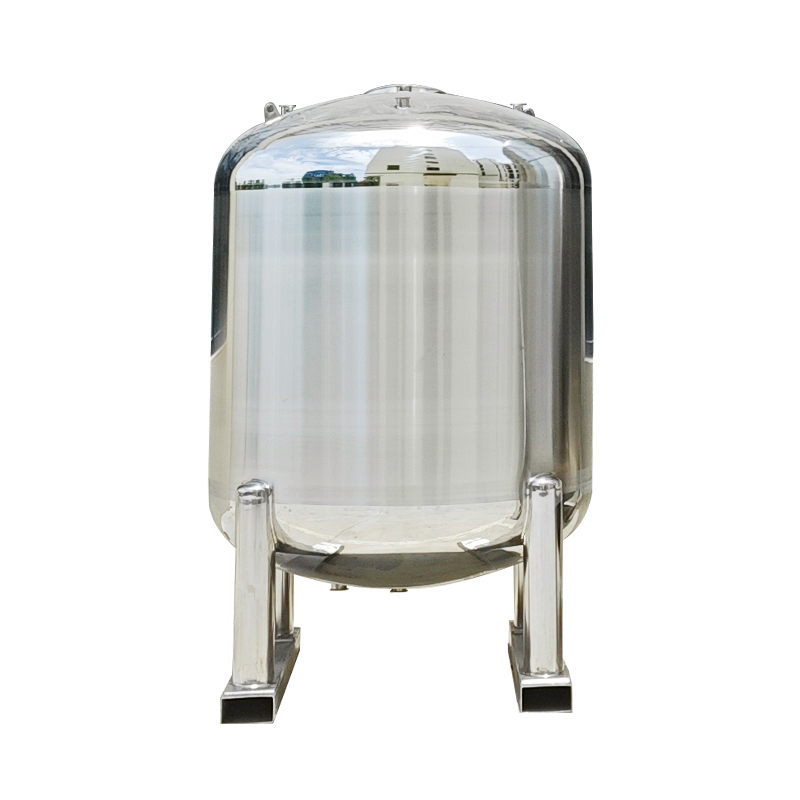

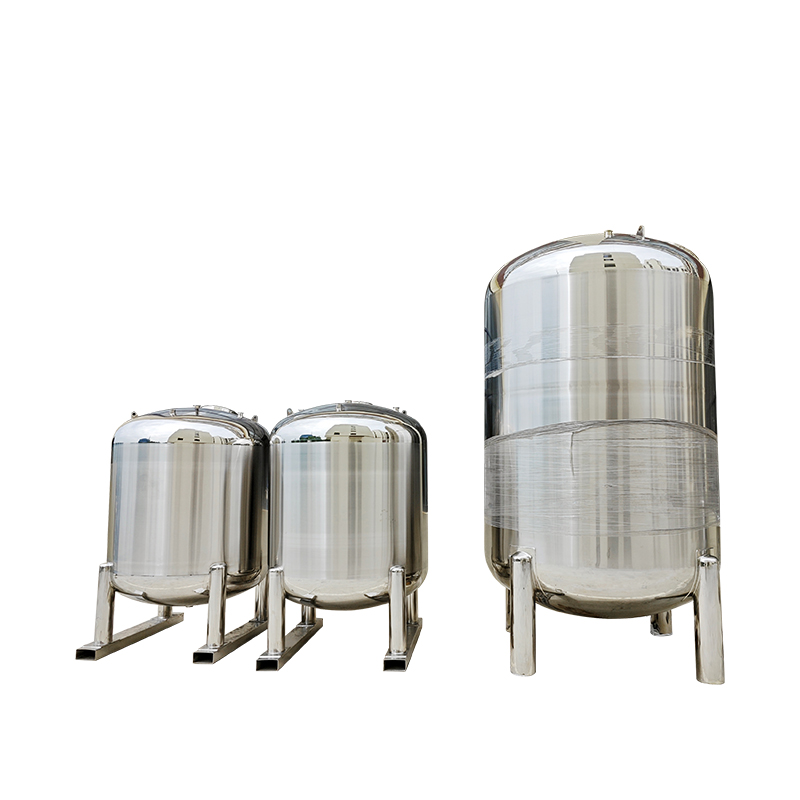

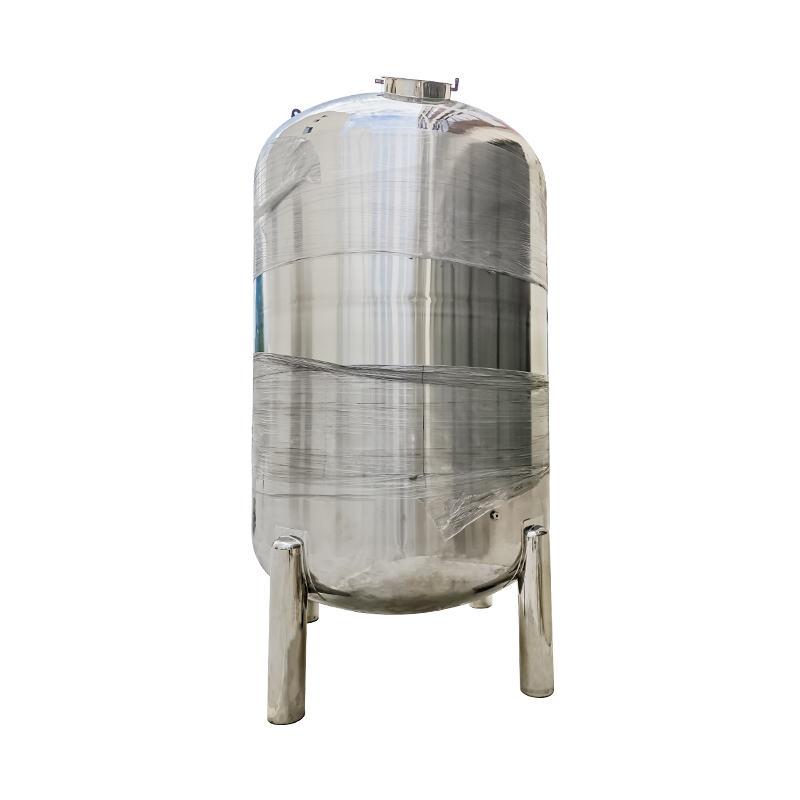

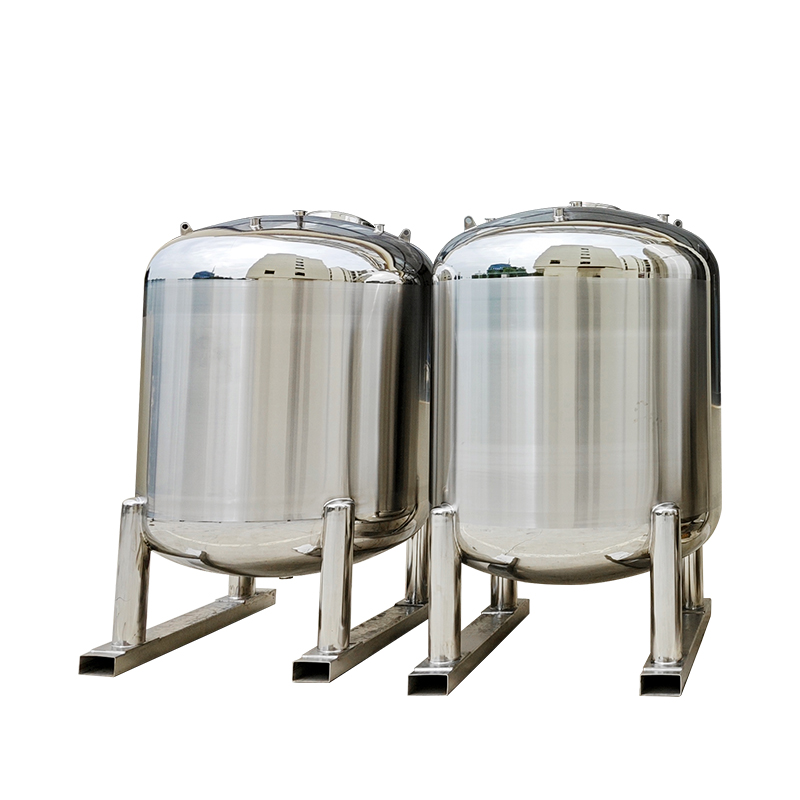

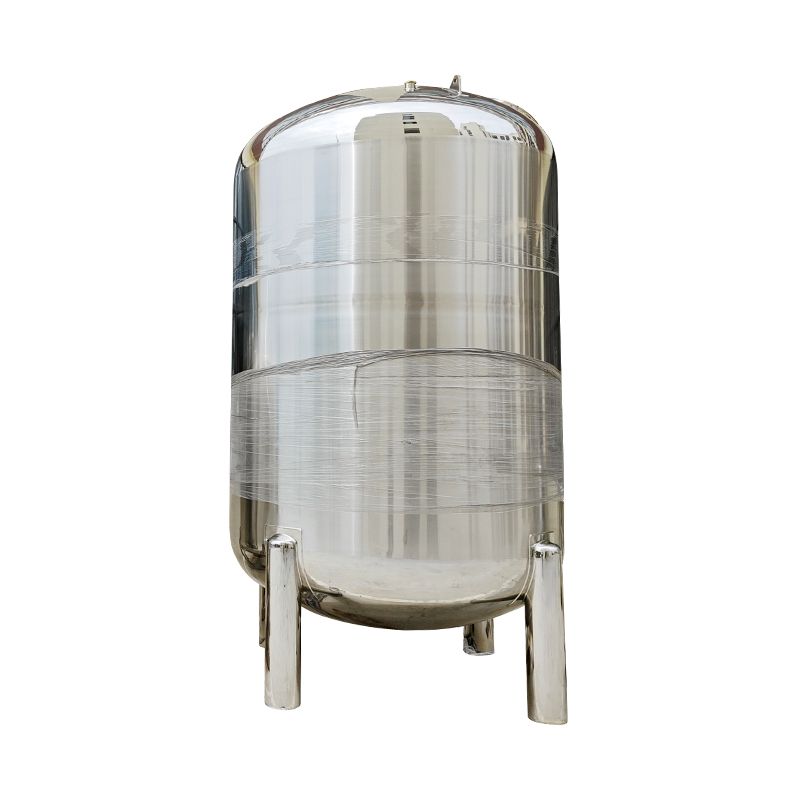

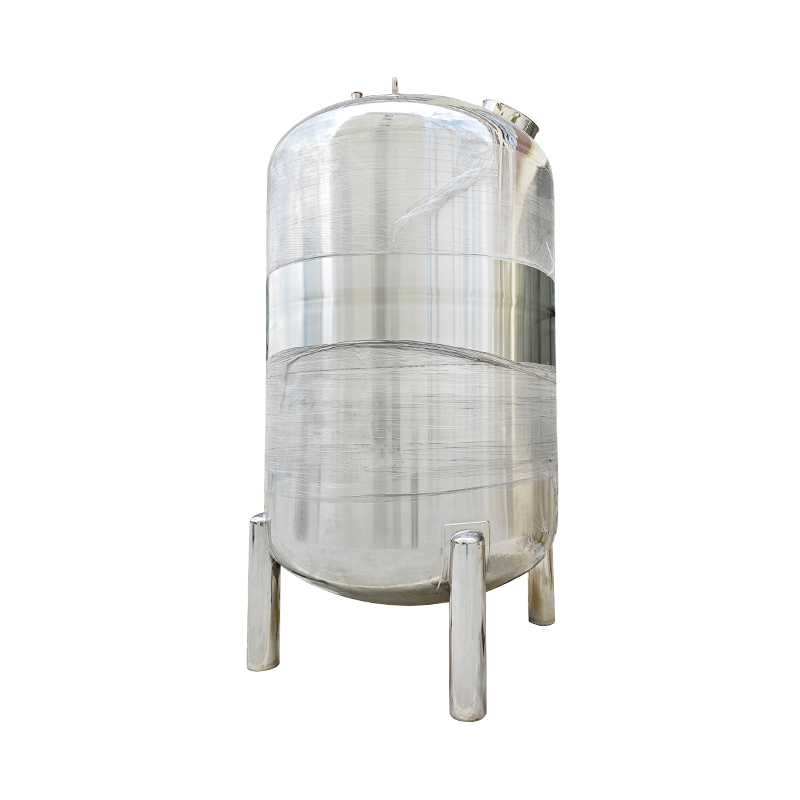

A large vertical stainless steel storage tank with a banded shell for insulation or jacketing, standing on four legs. Used for holding large product volumes, typically as a buffer, holding or blending tank in food, beverage, dairy and chemical plants. Volume and connections are built to the customer's site conditions and process requirements.
STRUCTURE AND CONSTRUCTION
A vertical cylindrical body with a banded shell; jackets or insulation are fitted between the bands. Product-contact surfaces are SS304 or SS316L. The body is closed with heads at the top and bottom and supported on four legs. Temperature sensing, level indication, a manway, a CIP spray ball and product connections can be configured to the process.

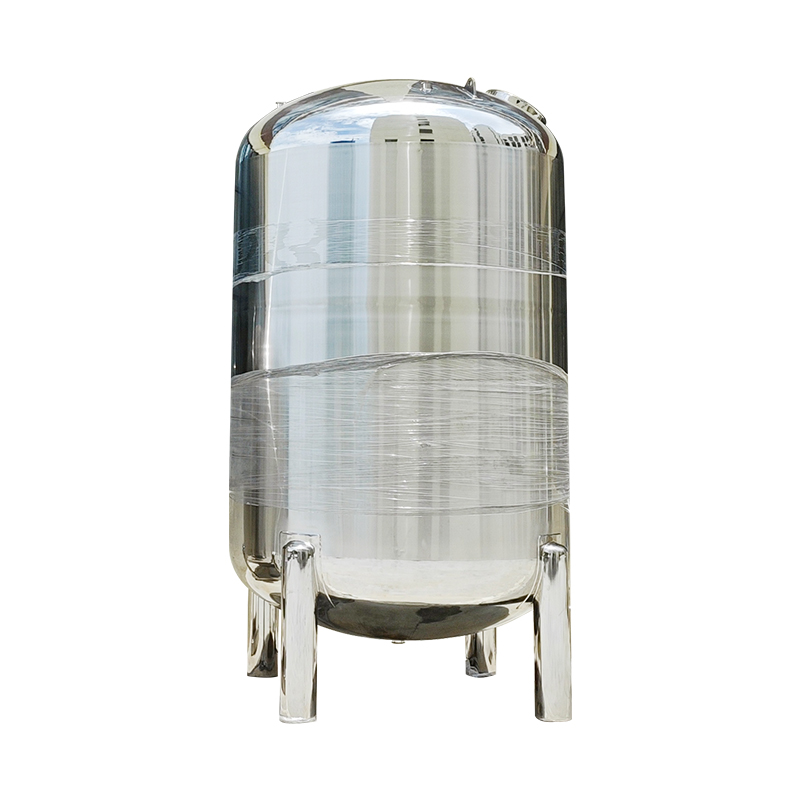

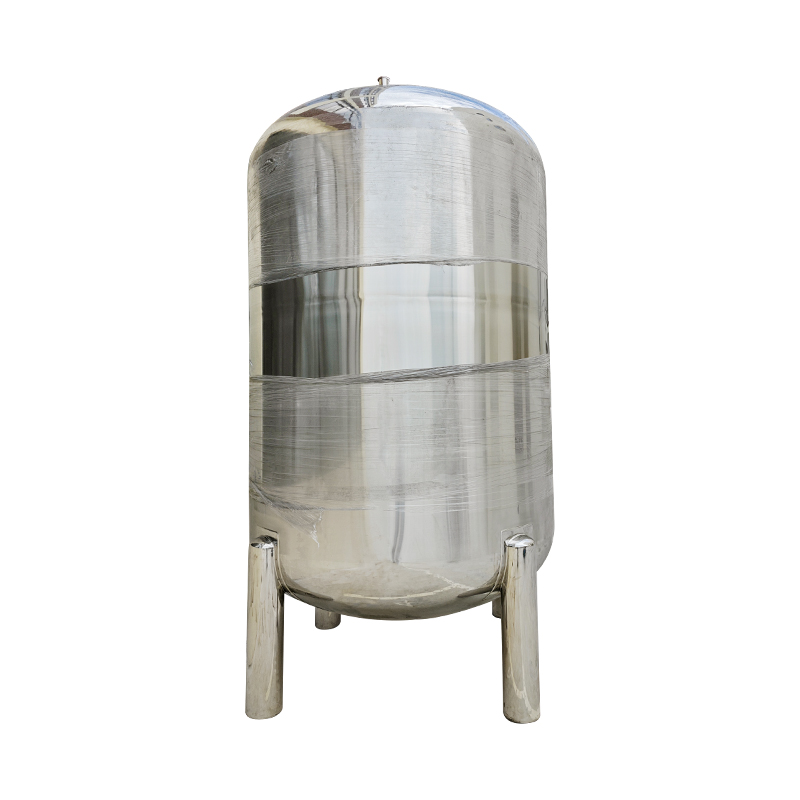

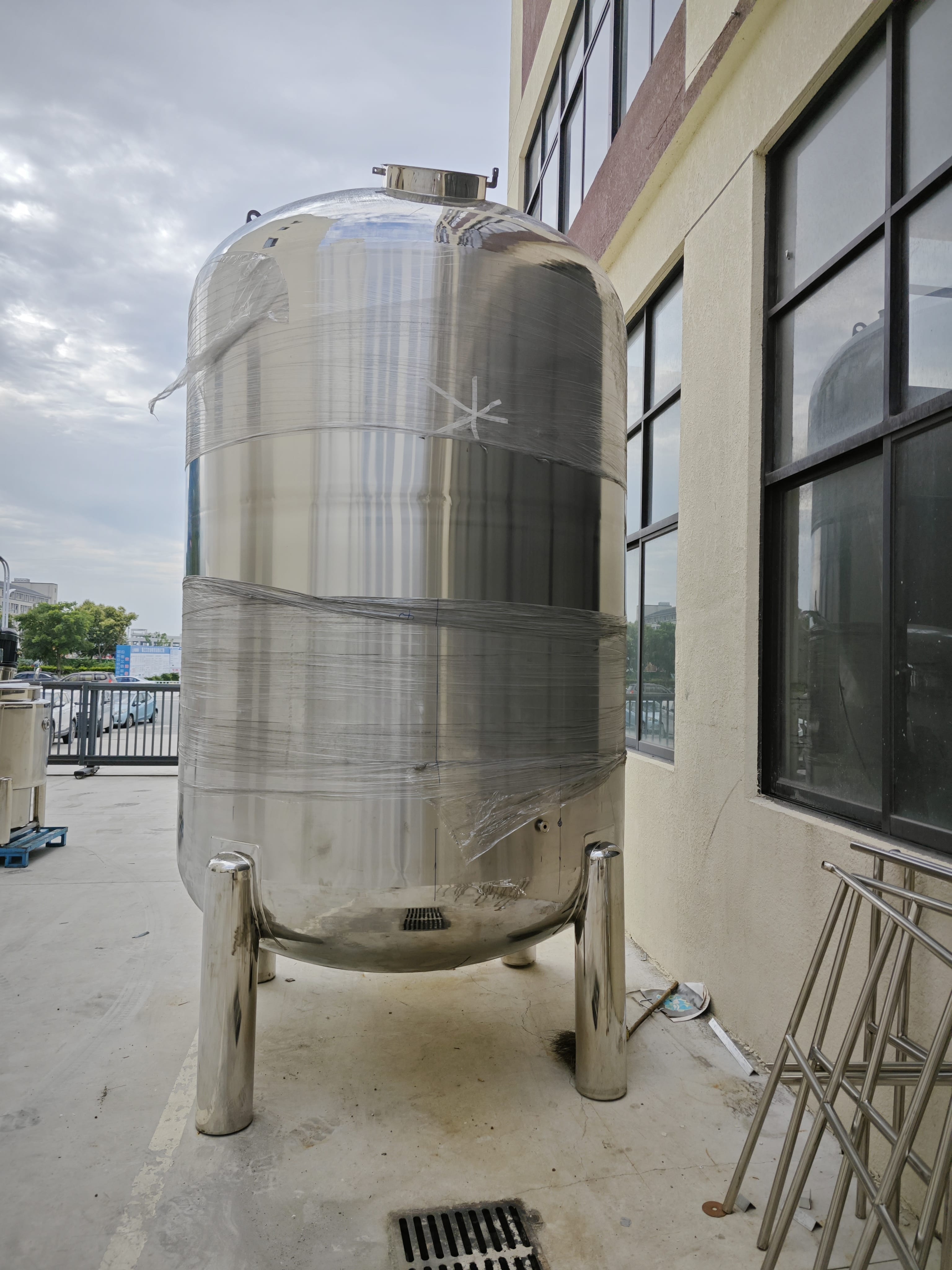

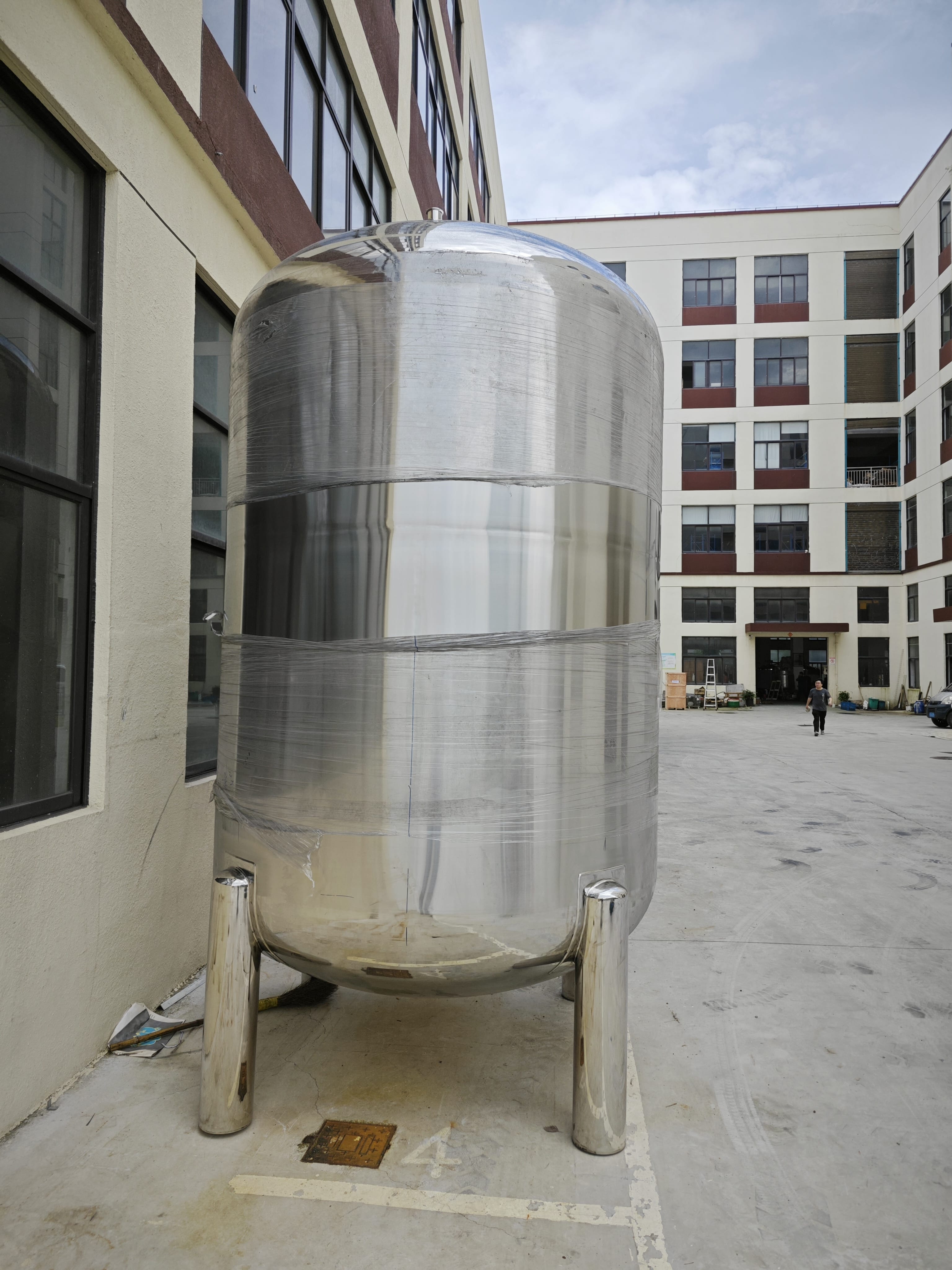

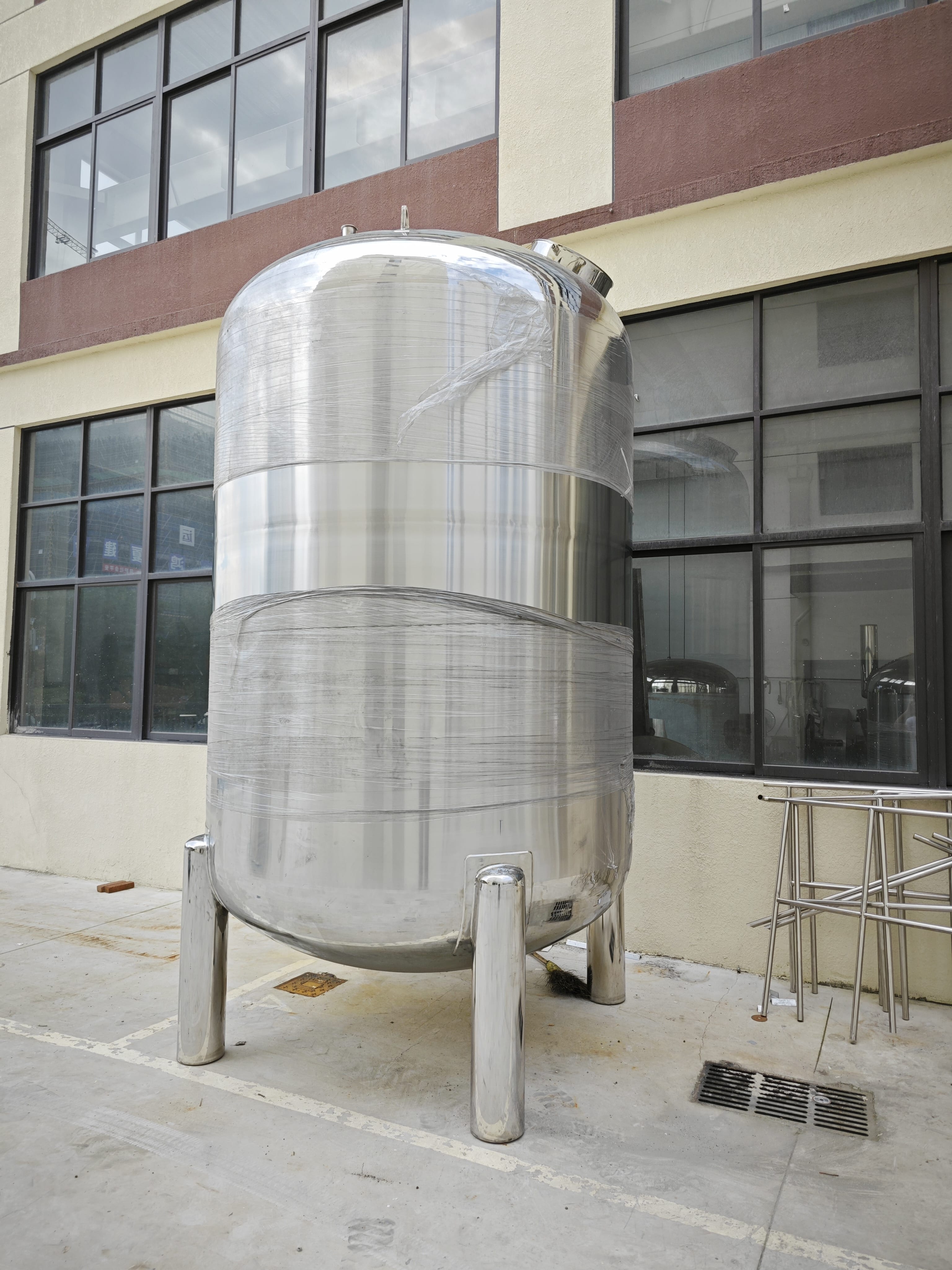

VISIBLE CONFIGURATION (FROM PHOTOS)
| Body form | Vertical cylinder with a banded shell |
| Top | Dished head with a small nozzle |
| Outlet | Dished bottom with a centre outlet |
| Support | Four tubular legs, floor standing |
| Finish | Mirror-polished outer surface |
Note: the items above are structural features that can be confirmed from the product photographs. Volume, tank dimensions, wall thickness, design pressure and heating power are confirmed per order.
