Mobile Conical Bottom Storage Tank
- Voltage:
- customized
- Material:
- SUS304/316L
- Processing Types:
- liquid
- Feature:
- Double Wall, Temperature Control, expandable system, Adjustable Legs
- Power(w):
- 0.75-75KW
- Heating:
- electric ,steam
- Dimension(I*w*h):
- Customized
- Technics:
- Forged
- Type:
- hold-up vessel
- Customization:
- Available
- After-sales Service:
- Online/Spare Parts/Life-Long Aftersale Service
- Warranty:
- 1 Year
- weight (kg):
- 800 KG
PRODUCT OVERVIEW

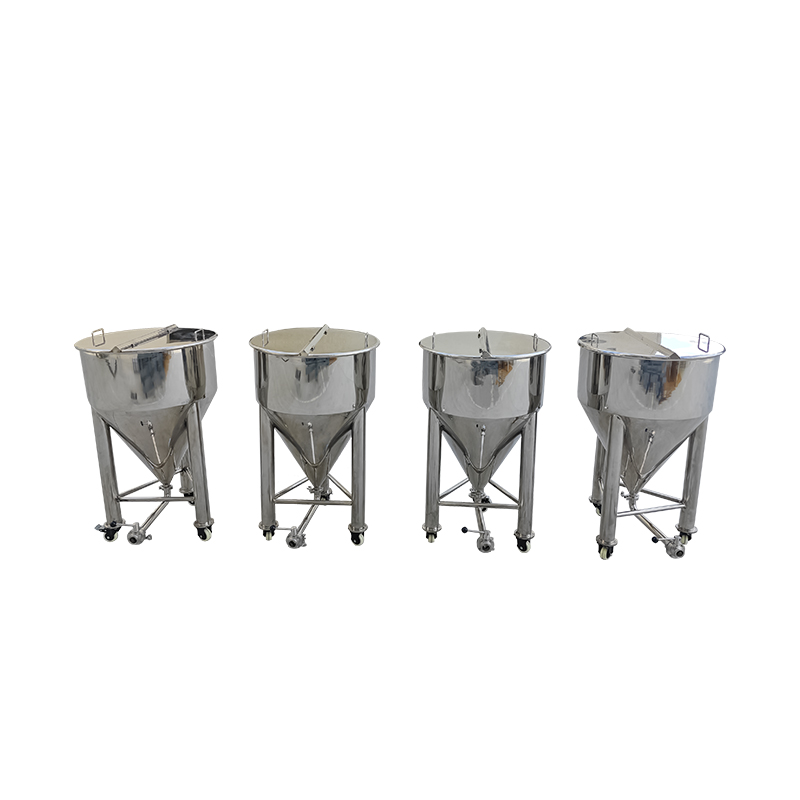

A mobile stainless steel storage tank with a conical bottom. The cone helps product drain fully and reduces residue, which suits products containing particles or with higher viscosity. Castors allow the tank to be moved between production areas. Used for storage and transfer in food, beverage and chemical production.
STRUCTURE AND CONSTRUCTION

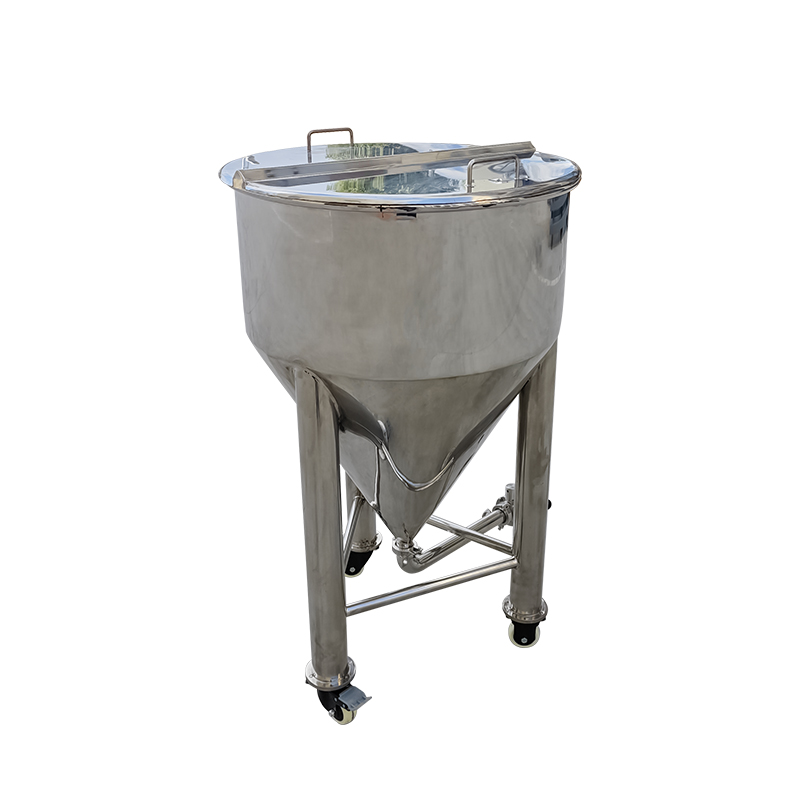

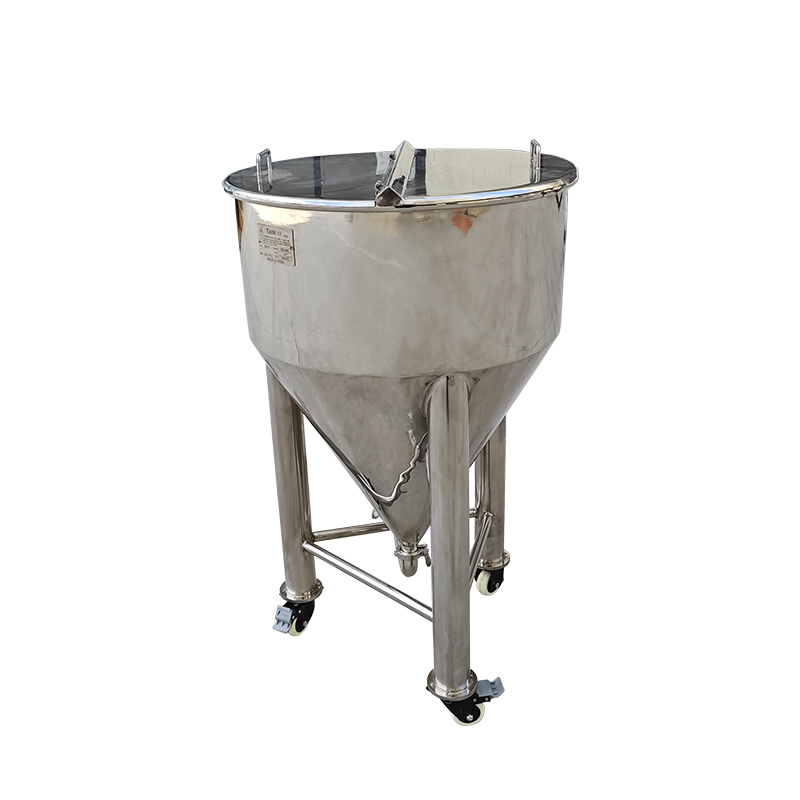

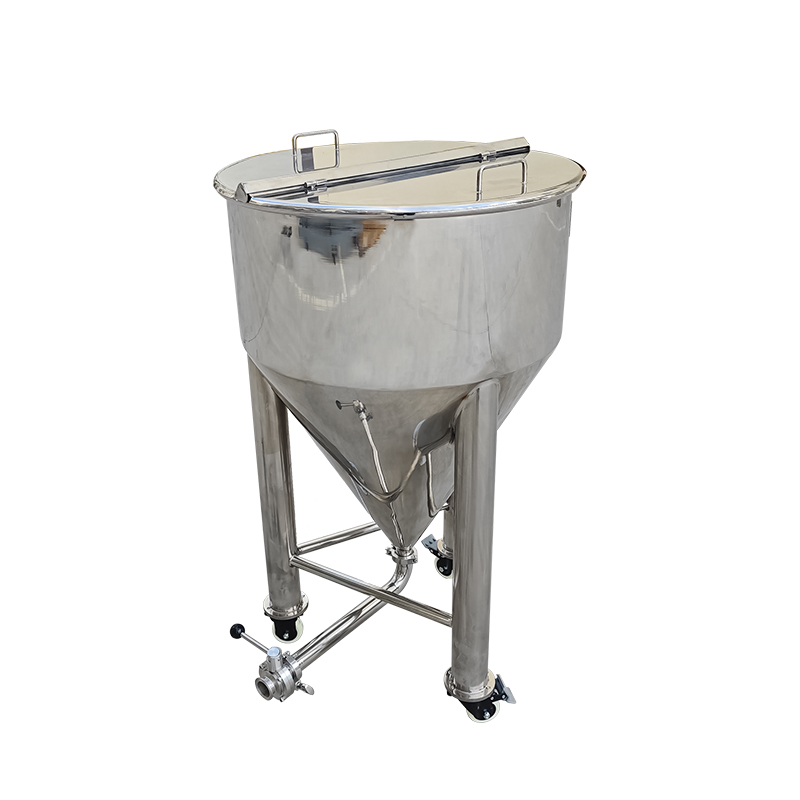

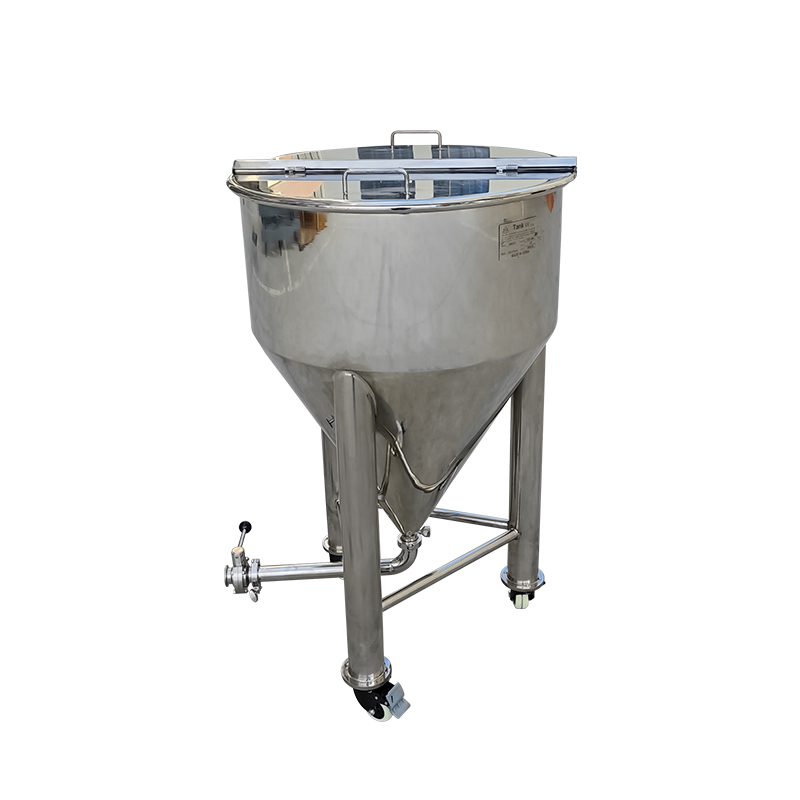

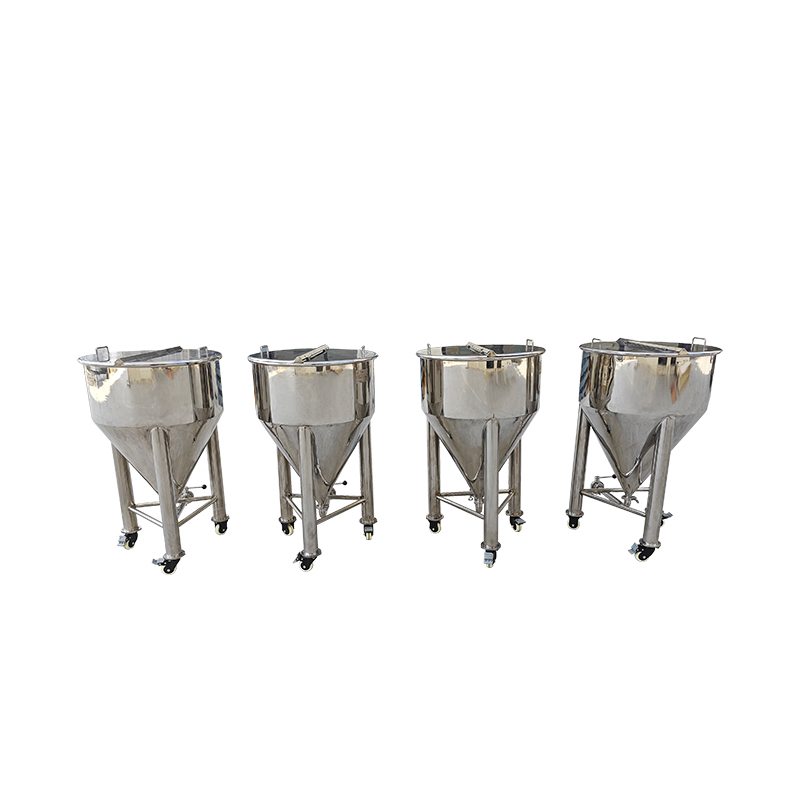

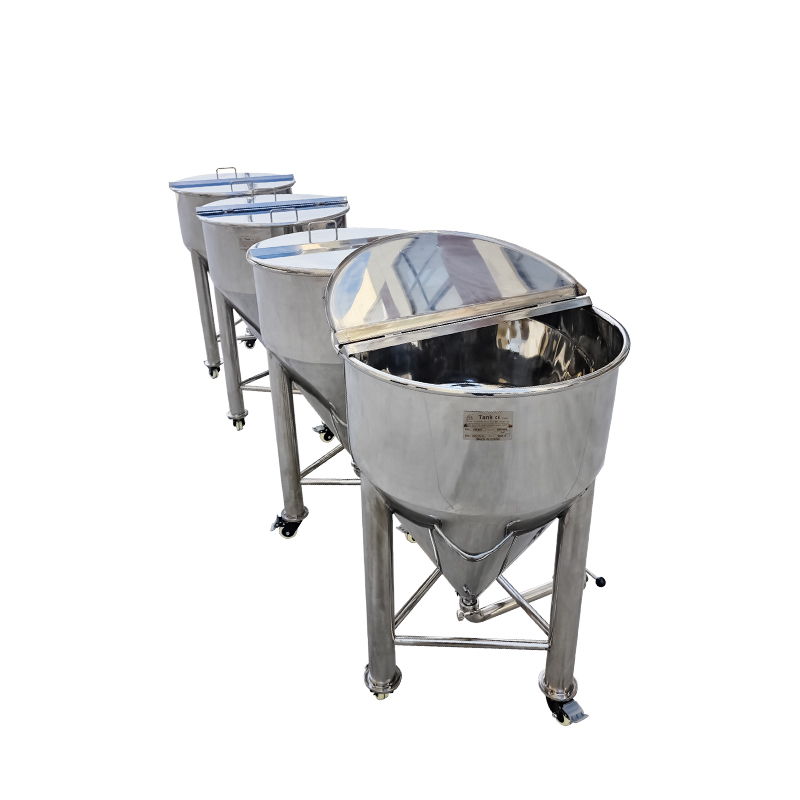

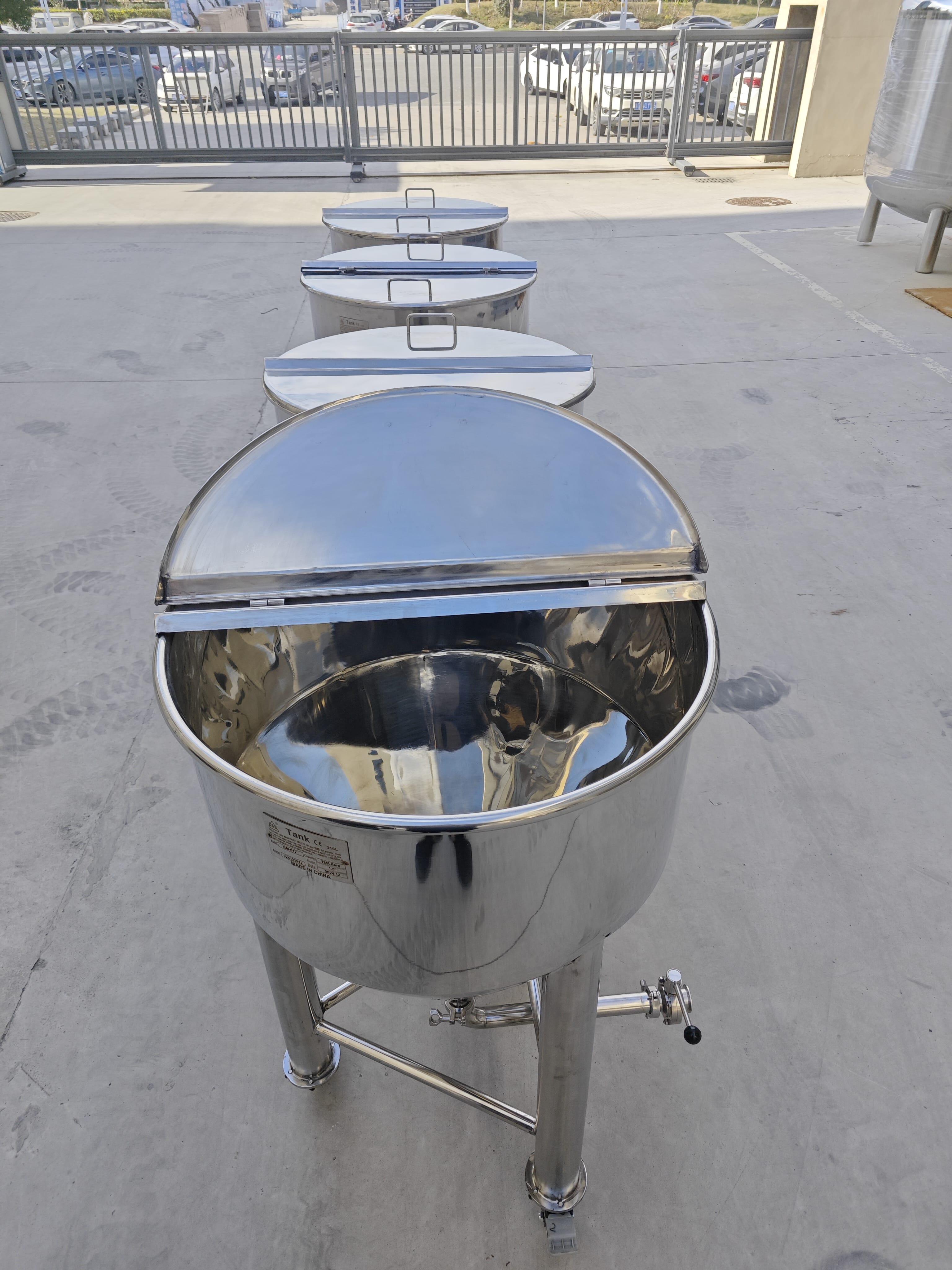

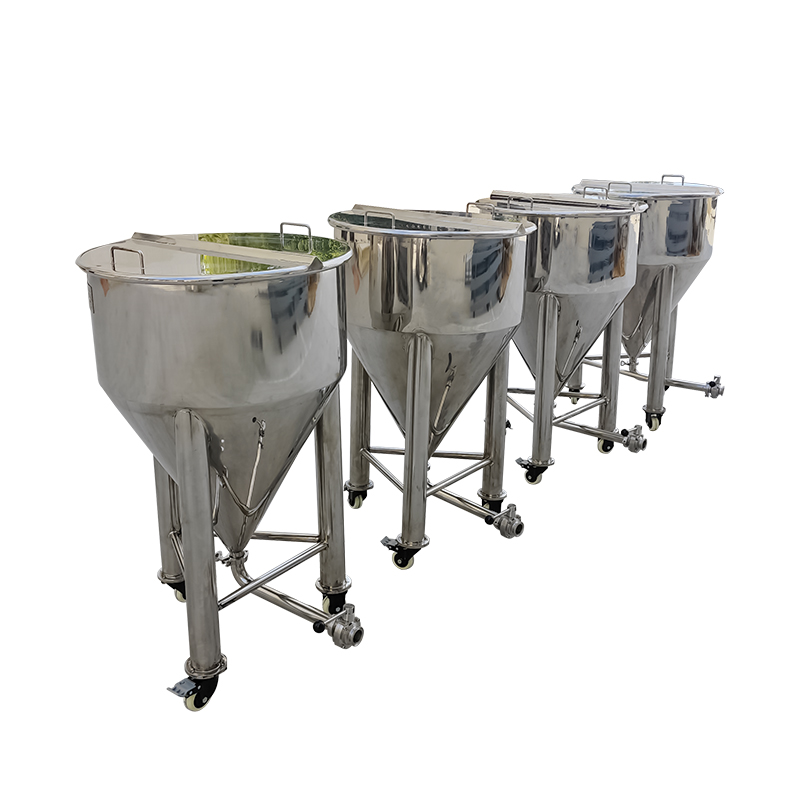

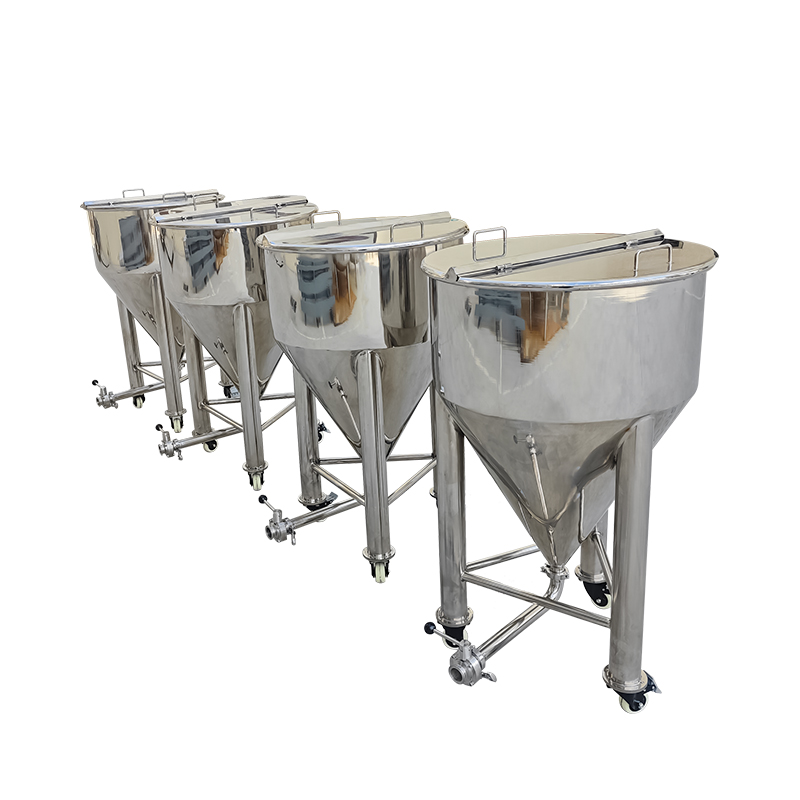

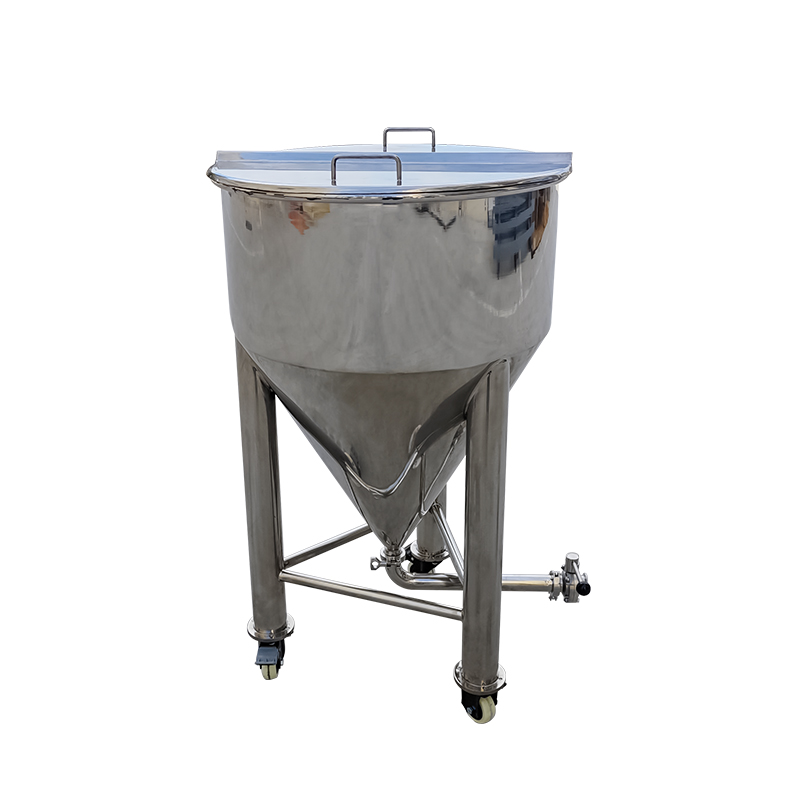

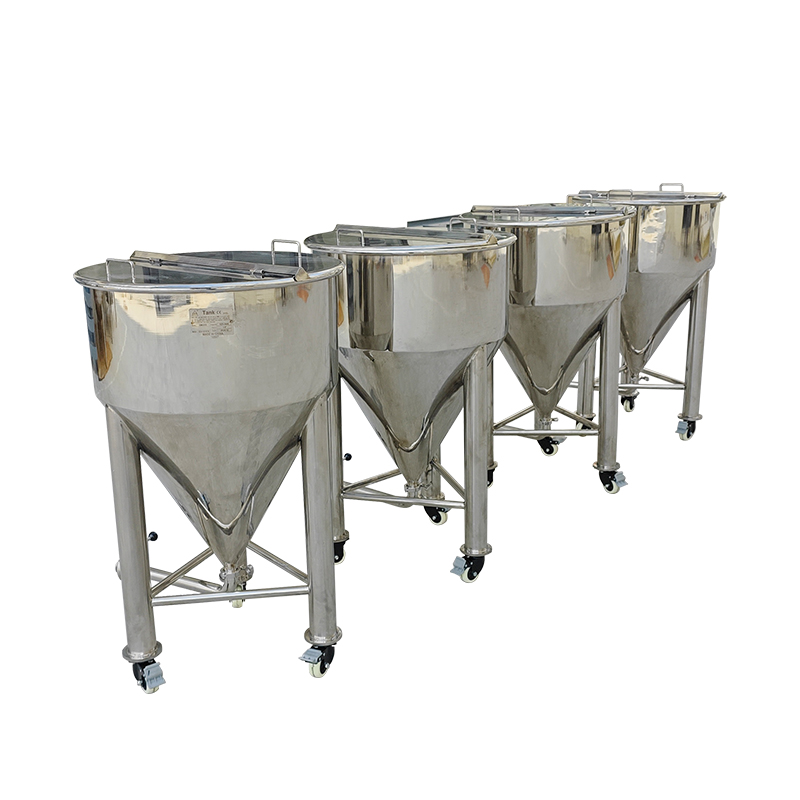

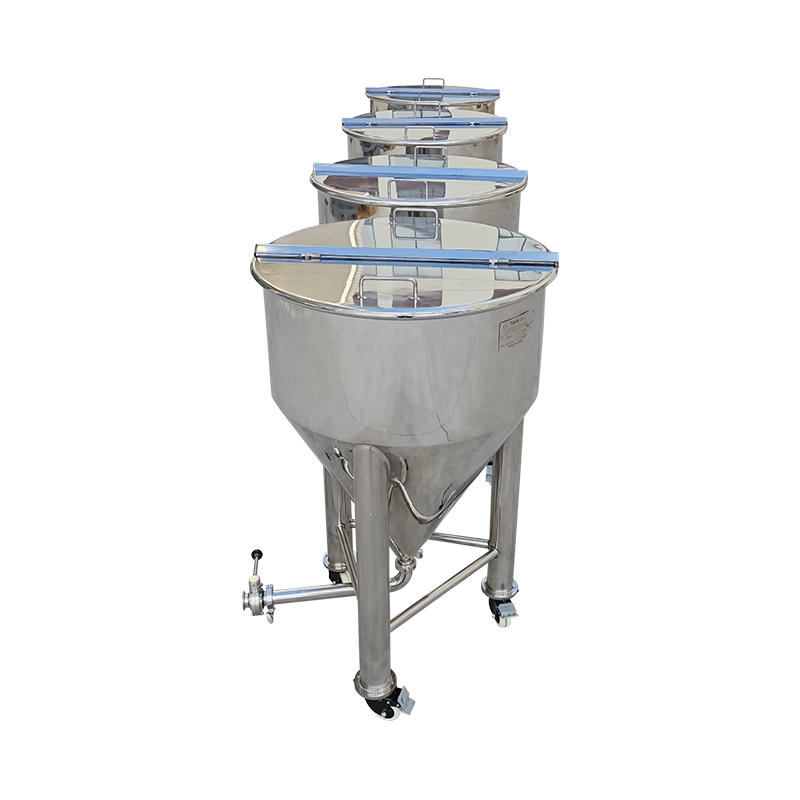

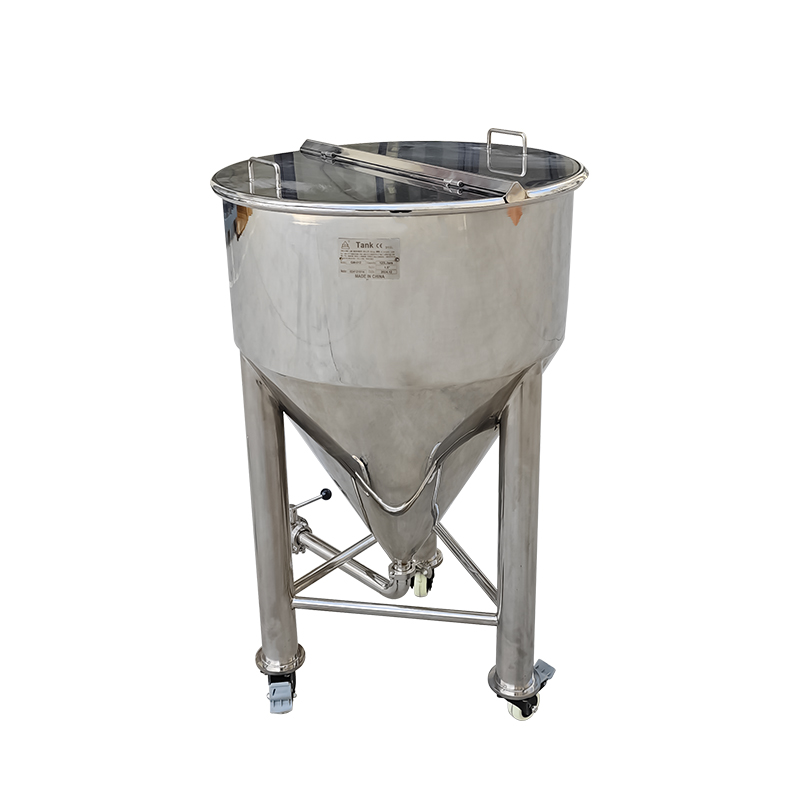

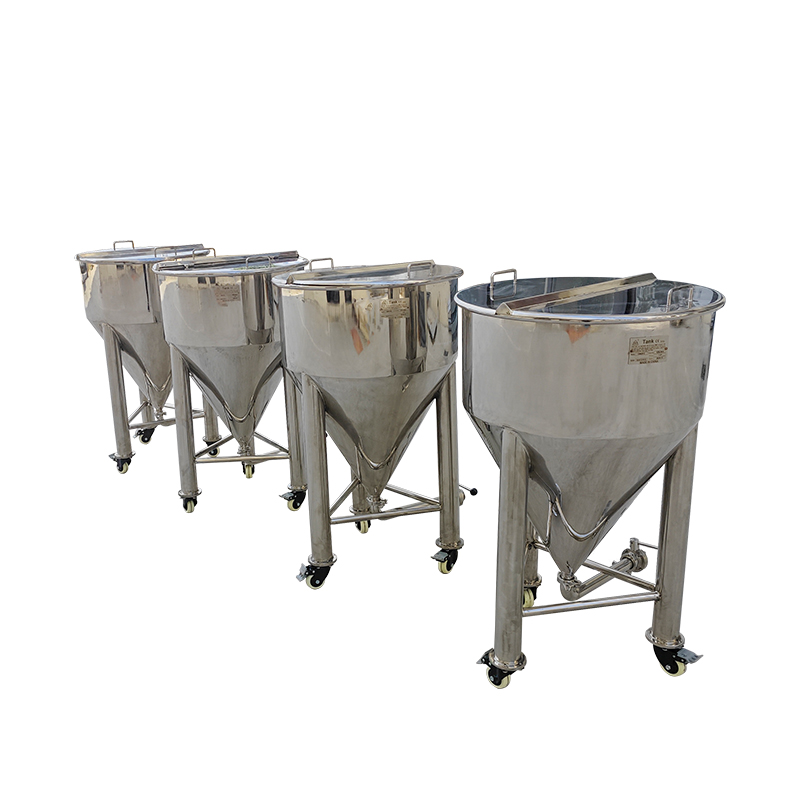

A vertical cylindrical body with a conical bottom. Product-contact surfaces are SS304 or SS316L. The cone lets product collect at the outlet under gravity and reduces residue. A flat cover with handles closes the top. A valve sits on the centre outlet at the cone tip, with a further side outlet and ball valve on the cone. The tank stands on four tubular legs with cross bracing and castors. Temperature sensing and level indication can be configured to the process.
VISIBLE CONFIGURATION (FROM PHOTOS)
| Body form | Vertical cylinder with conical bottom |

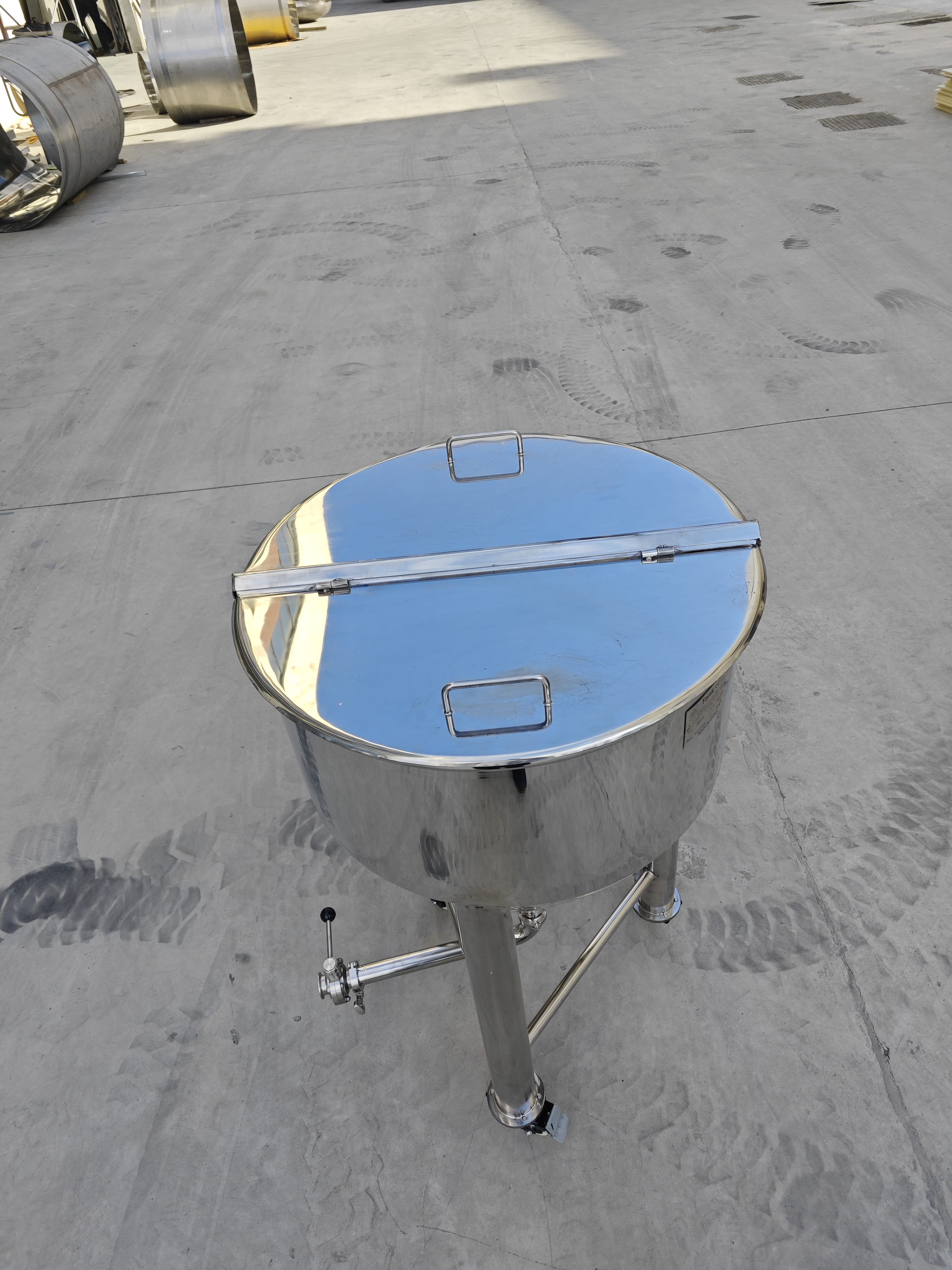

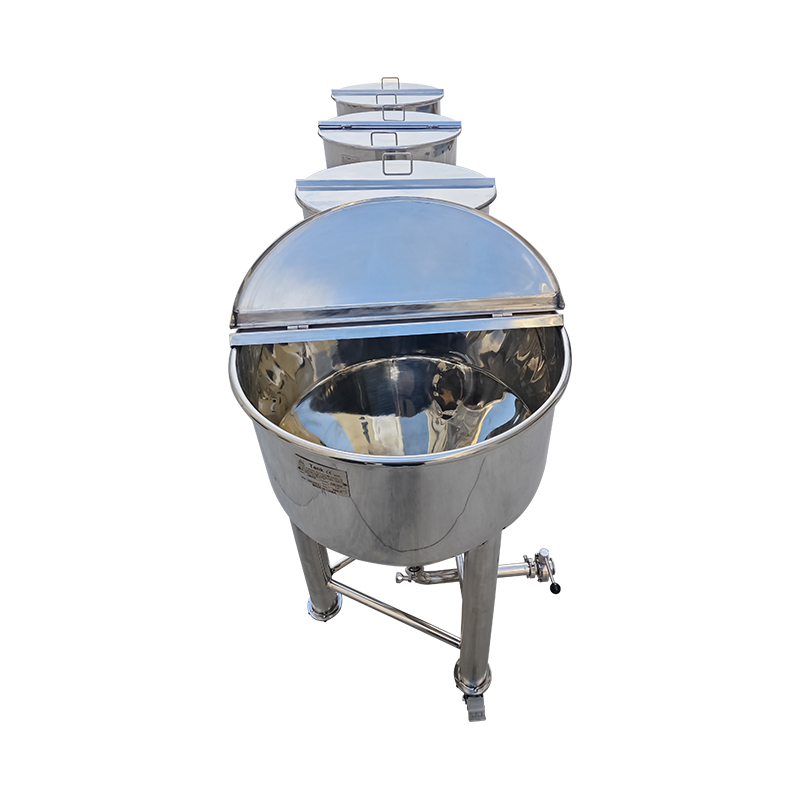

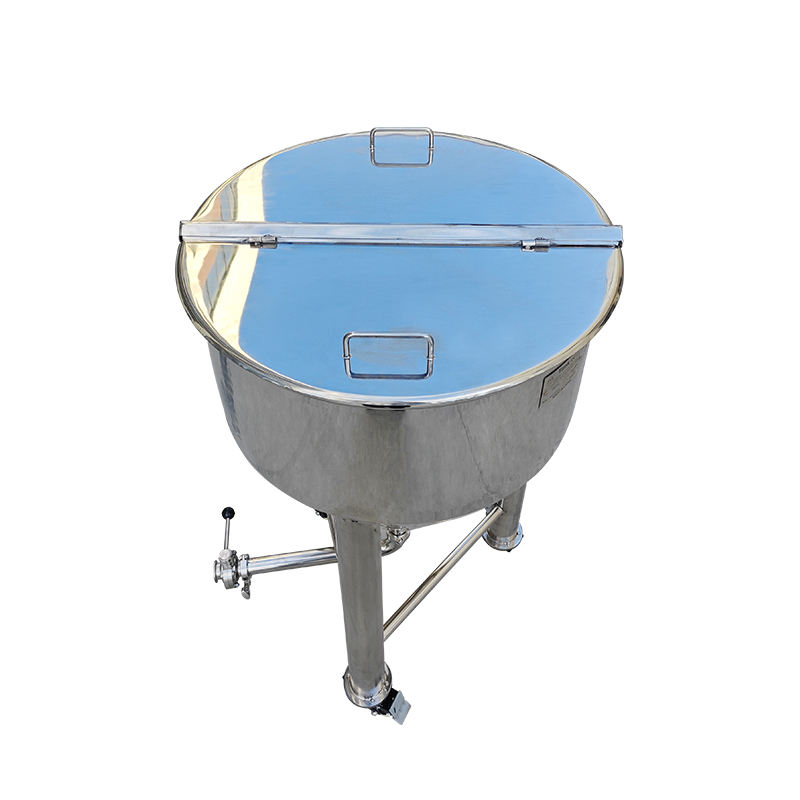

| Top | Flat cover with handles |

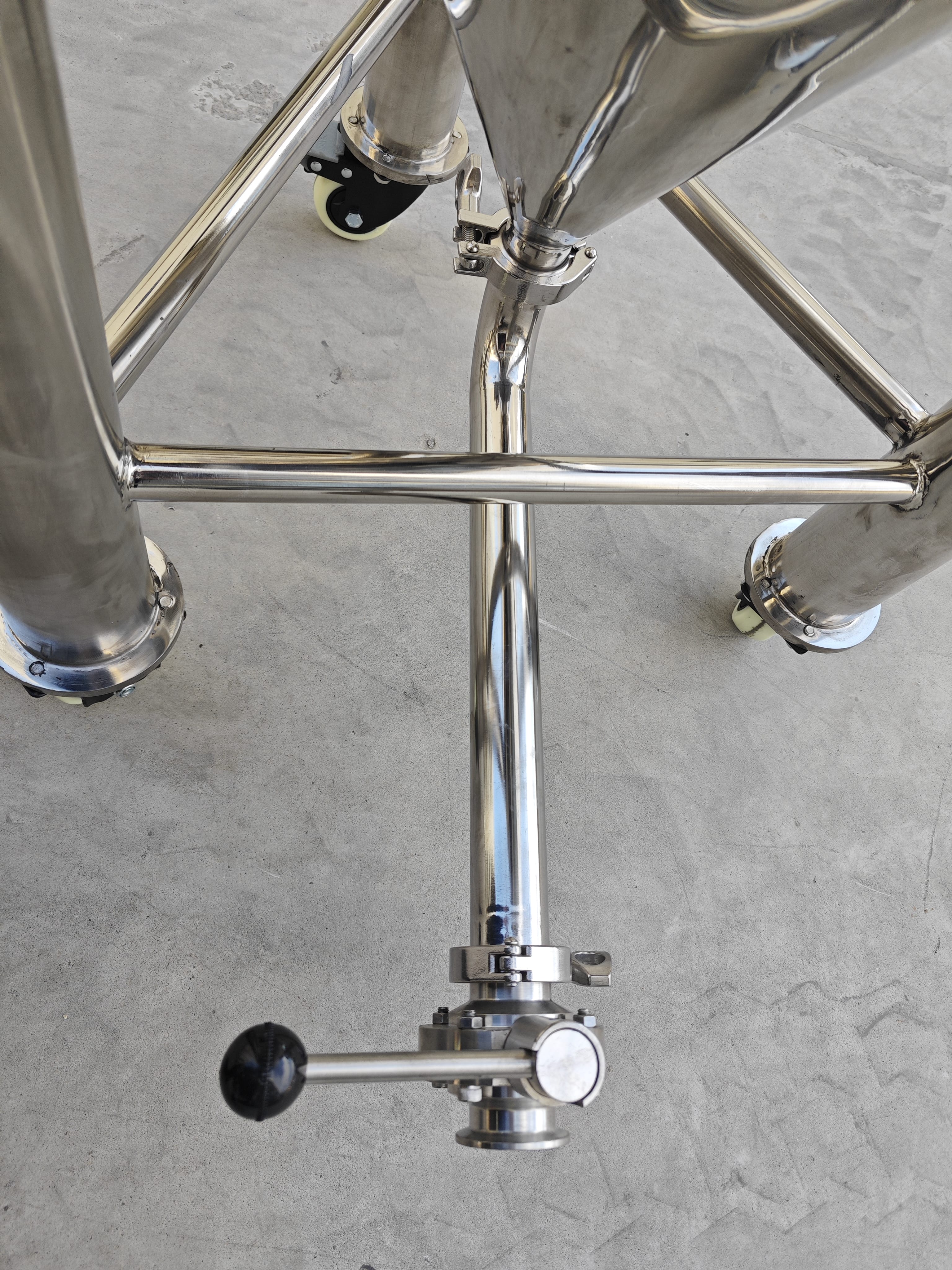

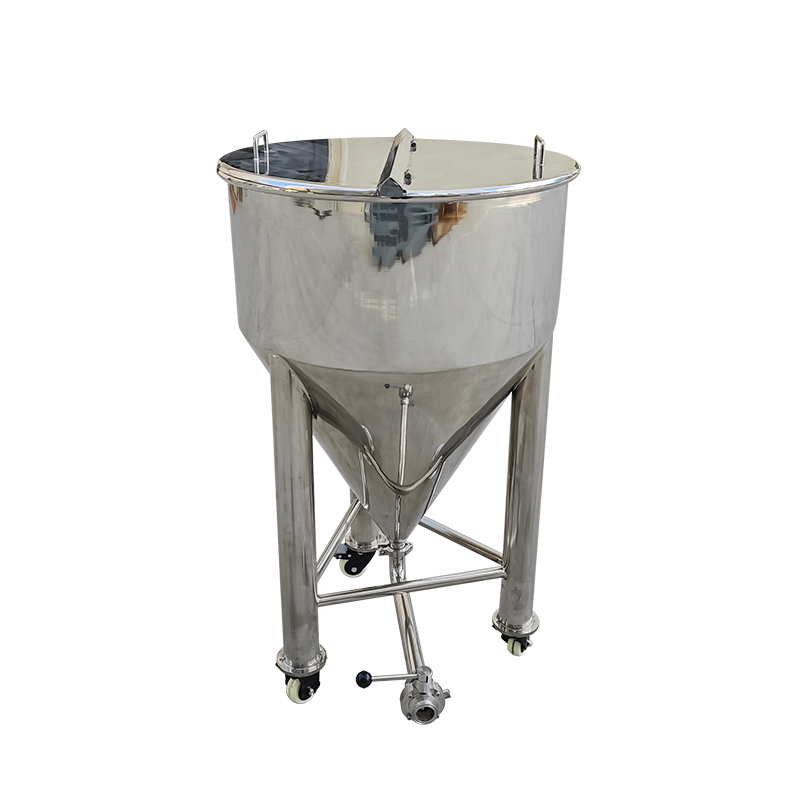

| Outlet | Centre outlet at the cone tip with valve; side outlet on the cone with ball valve |
| Support | Four tubular legs with cross bracing and castors |
| Finish | Mirror-polished outer surface |
Note: the items above are structural features that can be confirmed from the product photographs. Volume, tank dimensions, wall thickness, design pressure and heating power are confirmed per order.
