Square Stainless Steel Storage Tank
- Voltage:
- customized
- Material:
- SUS304/316L
- Processing Types:
- liquid
- Power(w):
- 0.75-75KW
- Heating:
- electric ,steam
- Dimension(I*w*h):
- customized
- Technics:
- Forged
- Type:
- hold-up vessel
- Customization:
- Available
- After-sales Service:
- Online/Spare Parts/Life-Long Aftersale Service
- Warranty:
- 1 Year
- weight (kg):
- 800 KG
PRODUCT OVERVIEW
A square stainless steel storage tank. The rectangular body suits production lines where space is tight or tanks must be arranged compactly. It has a top lid, a sanitary bottom outlet valve and leg supports. Used for storage, holding and blending in food, beverage and personal care production. Dimensions and connections are built to the customer's process.
STRUCTURE AND CONSTRUCTION
The body is rectangular. Product-contact surfaces are SS304 or SS316L. A top lid provides access for charging and inspection, the bottom outlet is fitted with a sanitary valve, and the tank stands on legs. Insulation, heating, level indication and temperature sensing can be added to suit the process.

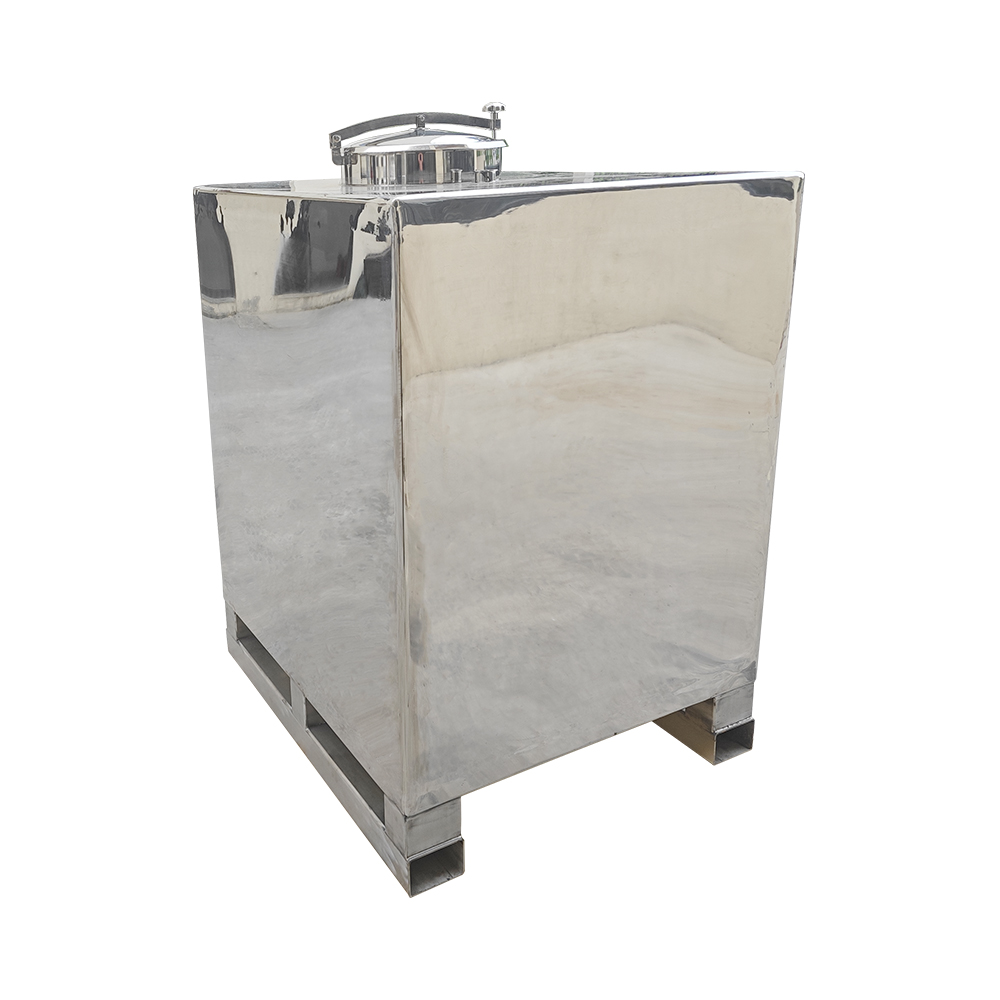

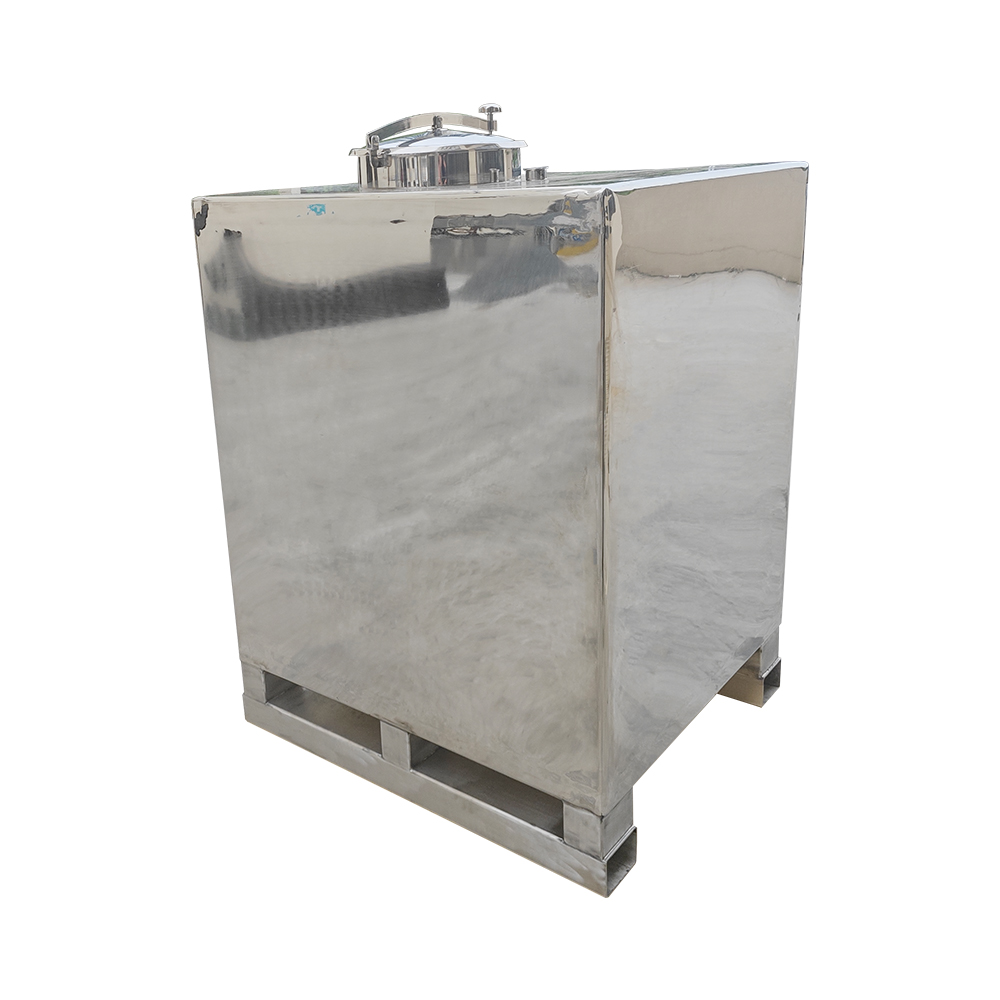

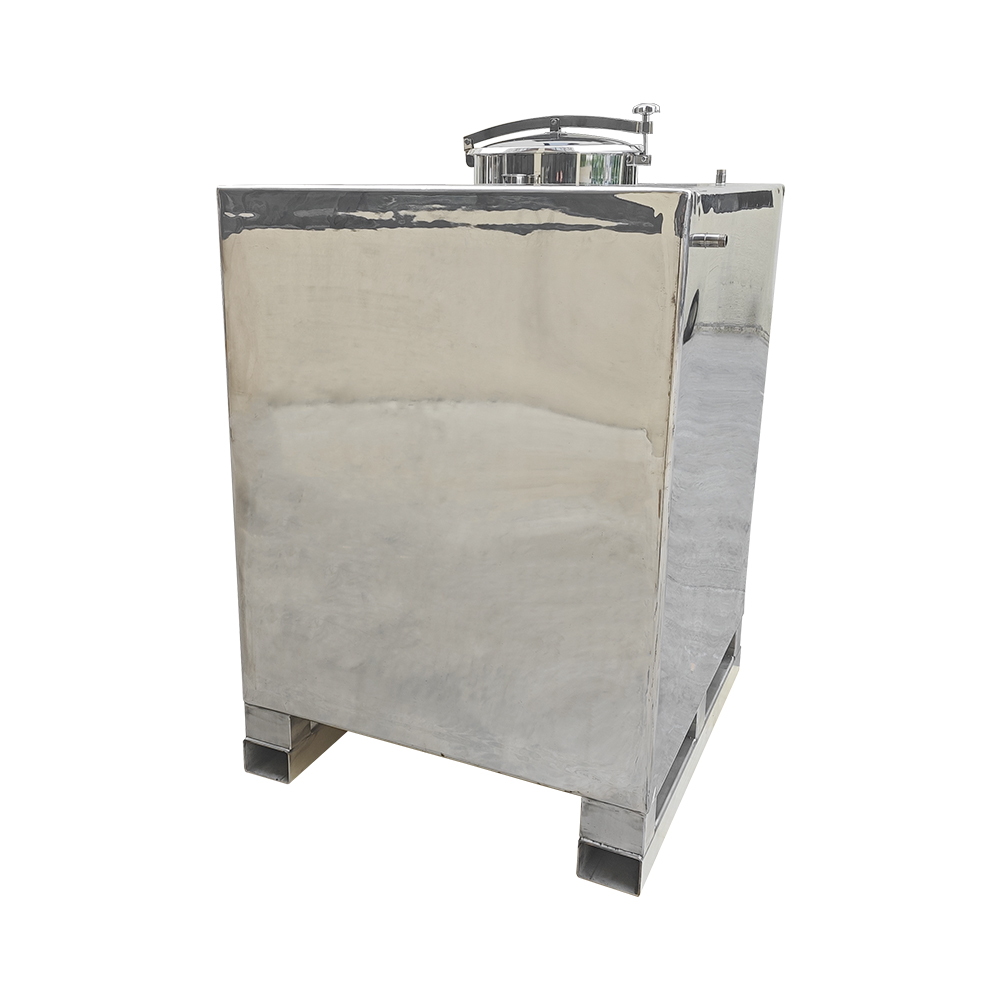

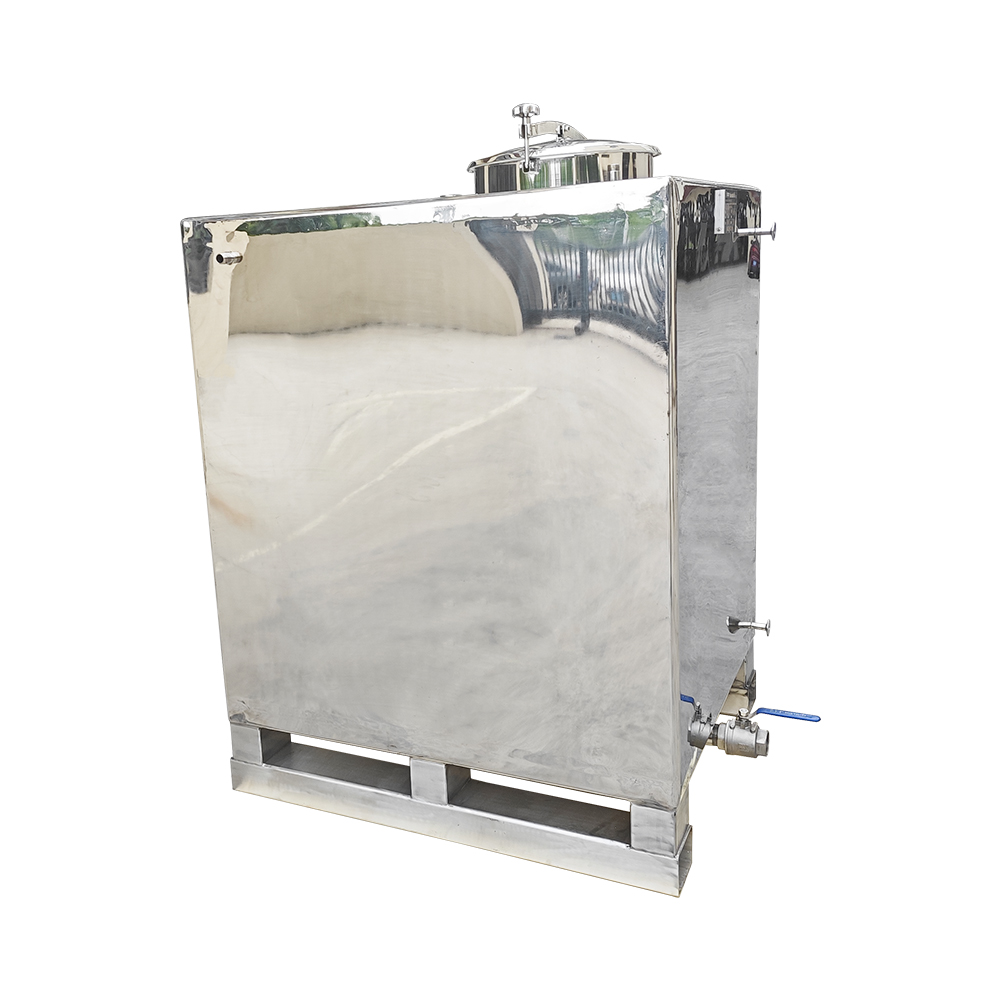

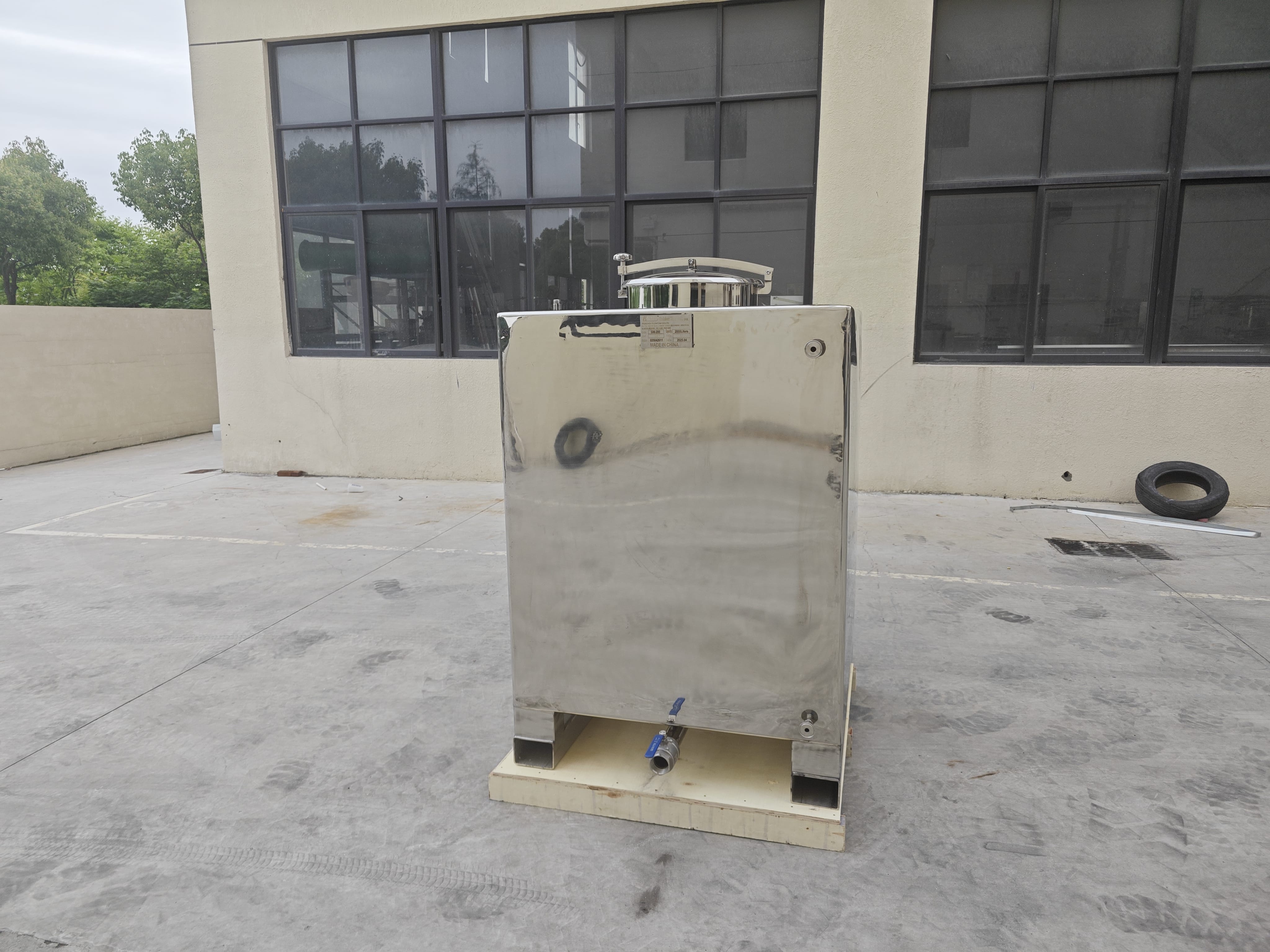

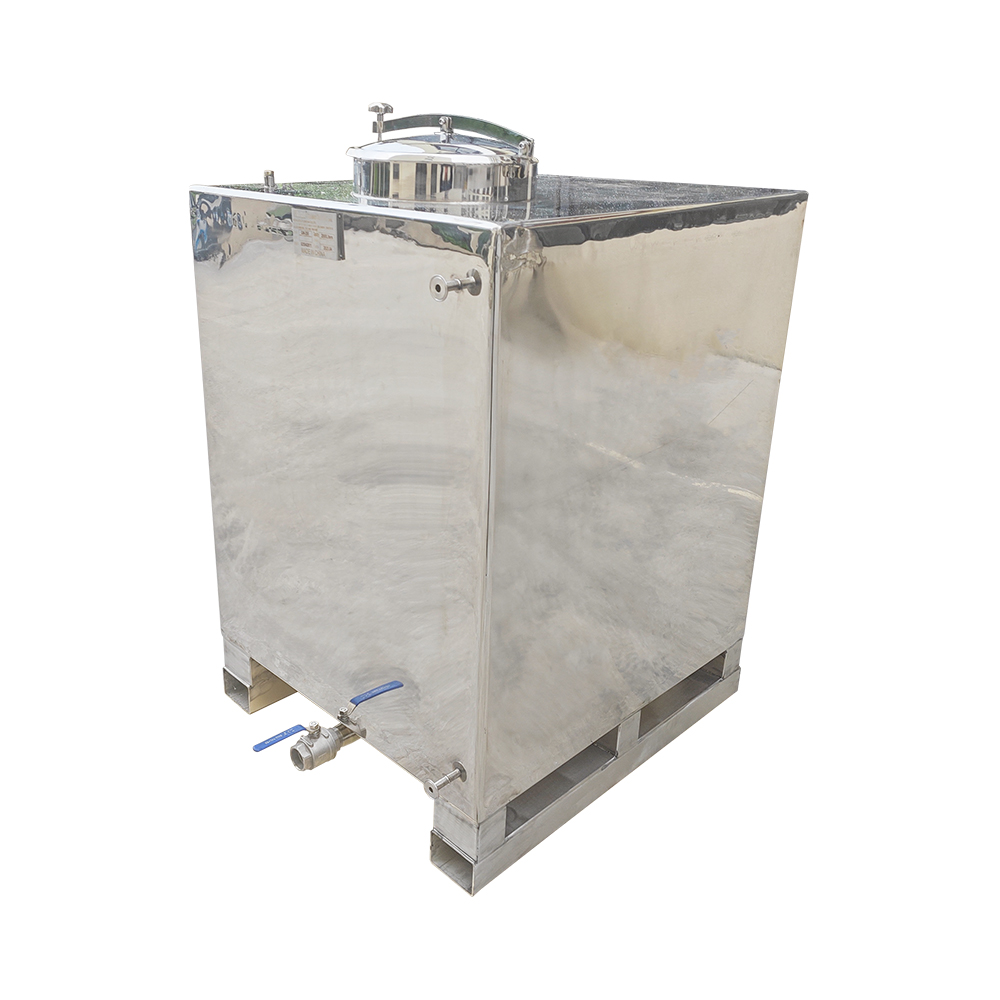

VISIBLE CONFIGURATION (FROM PHOTOS)

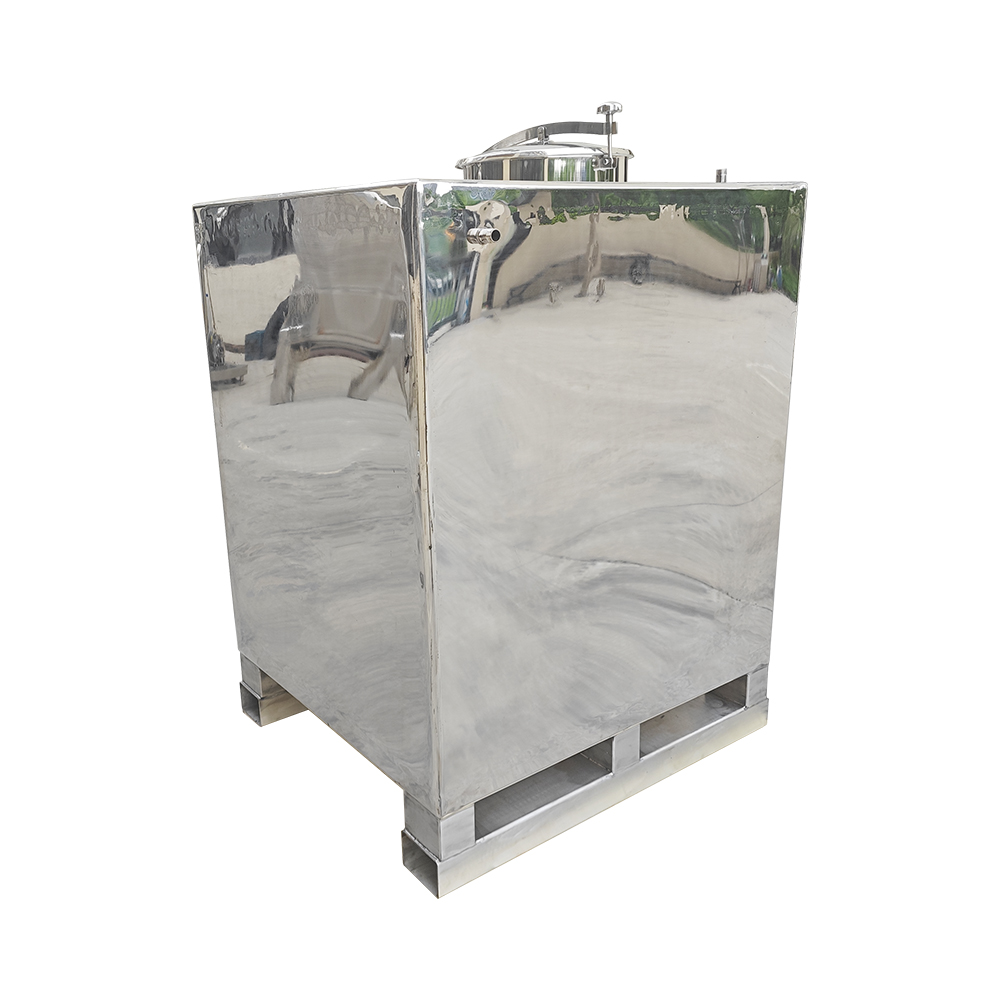

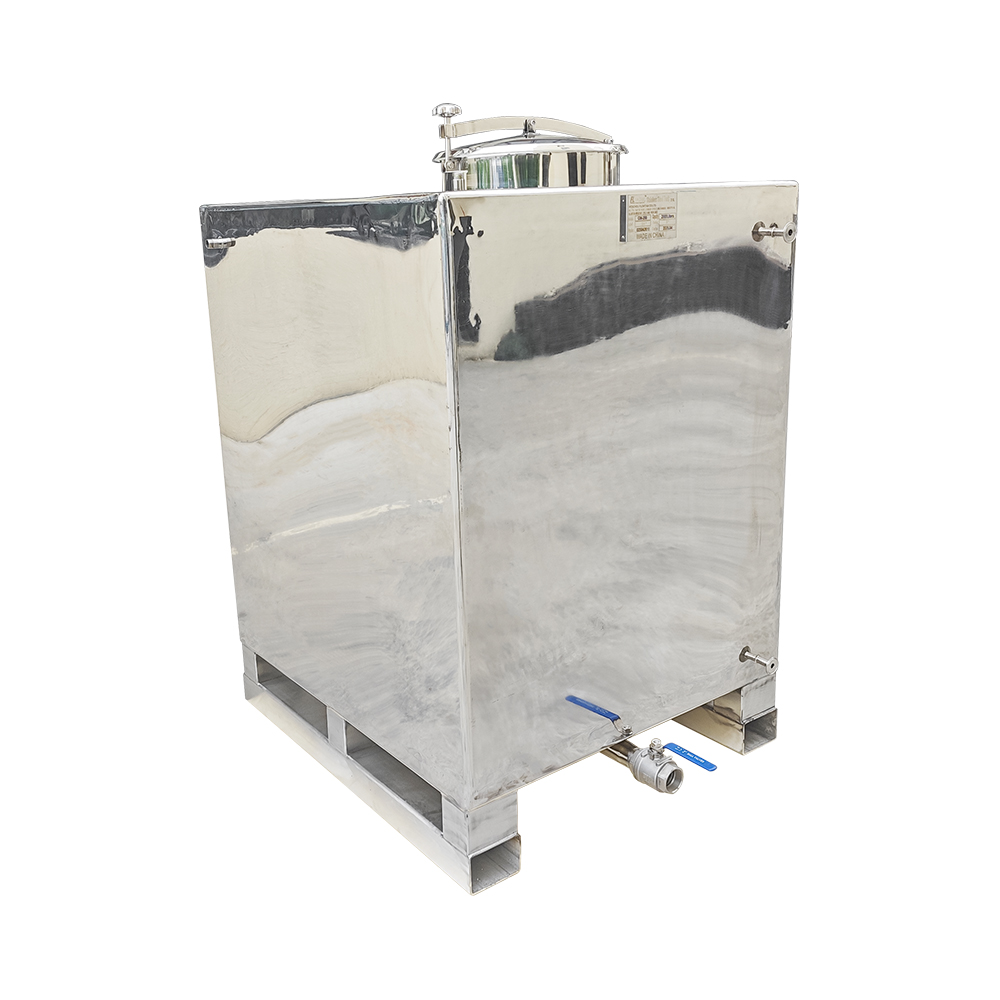

| Body form | Square (rectangular) body |

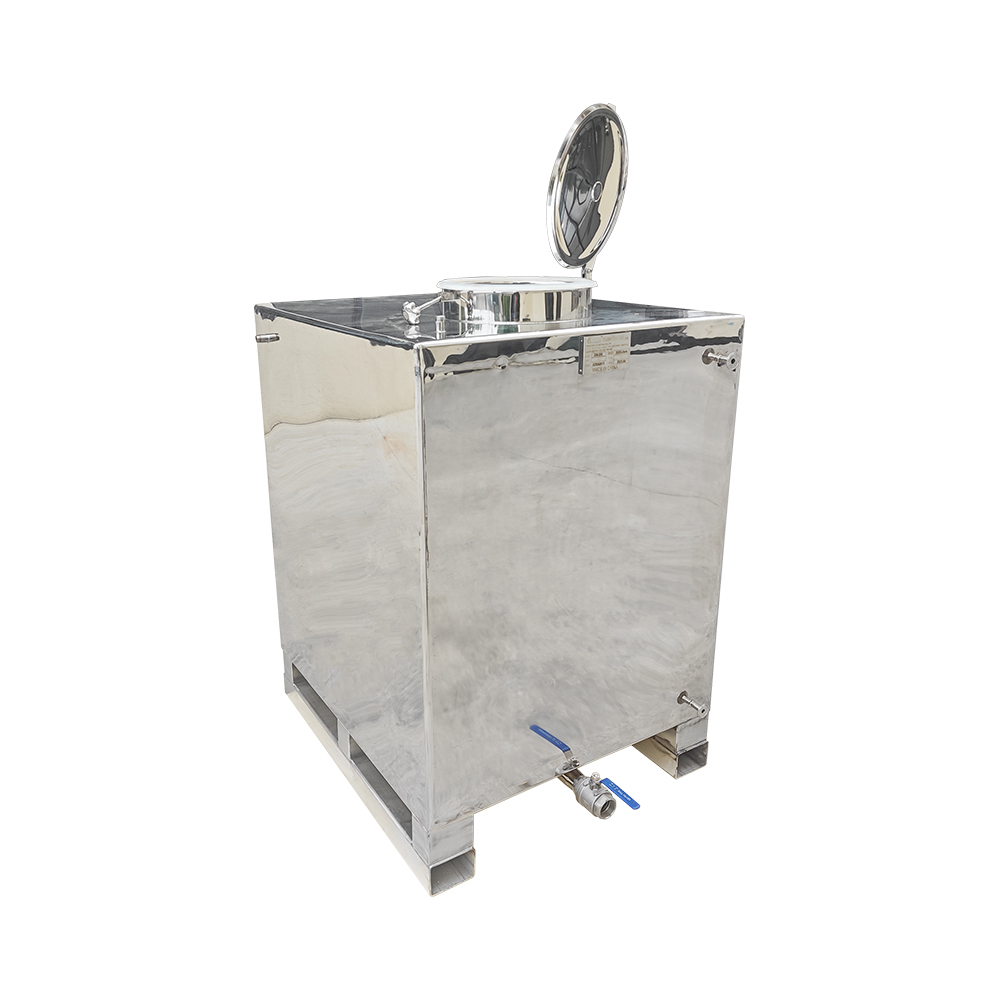

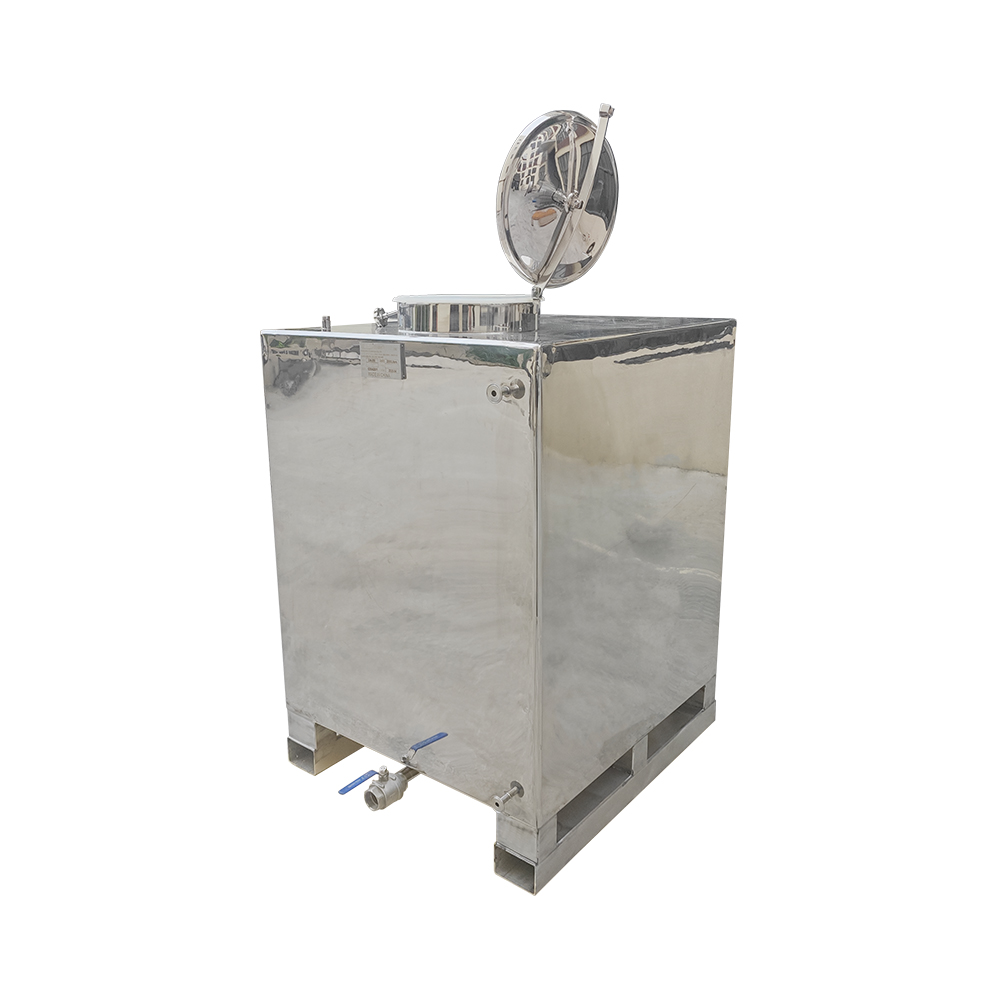

| Top | Round quick-opening manway lid, swing-bolt clamped, with handle |

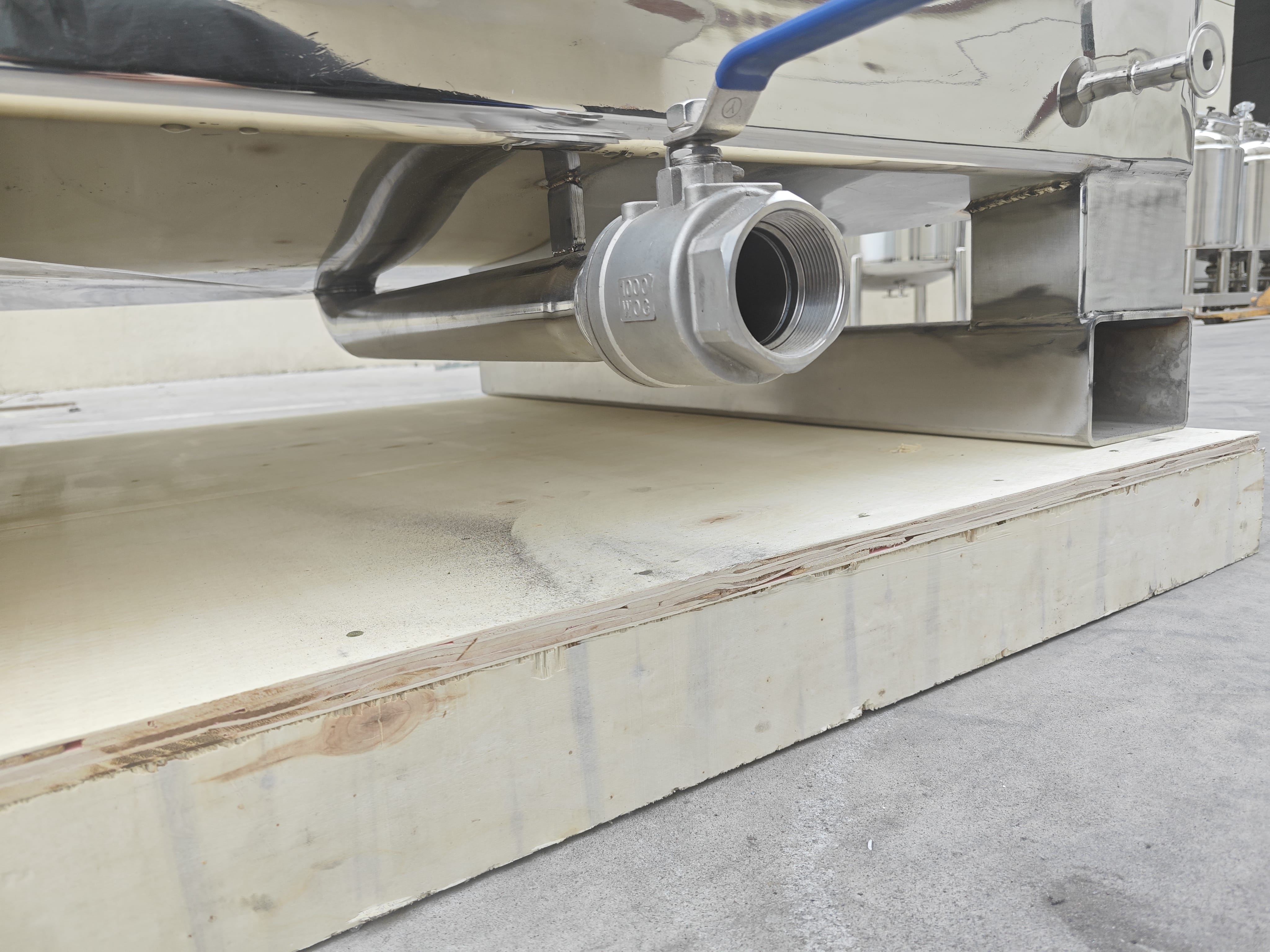

| Outlet | Bottom outlet with ball valve |
| Base | Welded square-tube frame base for forklift handling |
| Finish | Mirror-polished outer surface |
Note: the items above are structural features that can be confirmed from the product photographs. Volume, tank dimensions, wall thickness, design pressure and heating power are confirmed per order.
