Square Stainless Steel Storage Tank with Three Front Connections
- Voltage:
- 220V/380V
- Material:
- SUS304/316L
- Processing Types:
- liquid
- Feature:
- Temperature Control, Double Wall, Adjustable Legs, expandable system
- Power(w):
- 0.75-75KW
- Heating:
- electric ,steam
- Dimension(I*w*h):
- Customized
- Type:
- hold-up vessel
- Customization:
- Available
- After-sales Service:
- Online/Spare Parts/Life-Long Aftersale Service
- Warranty:
- 1 Year
- weight (kg):
- 800 KG
PRODUCT OVERVIEW

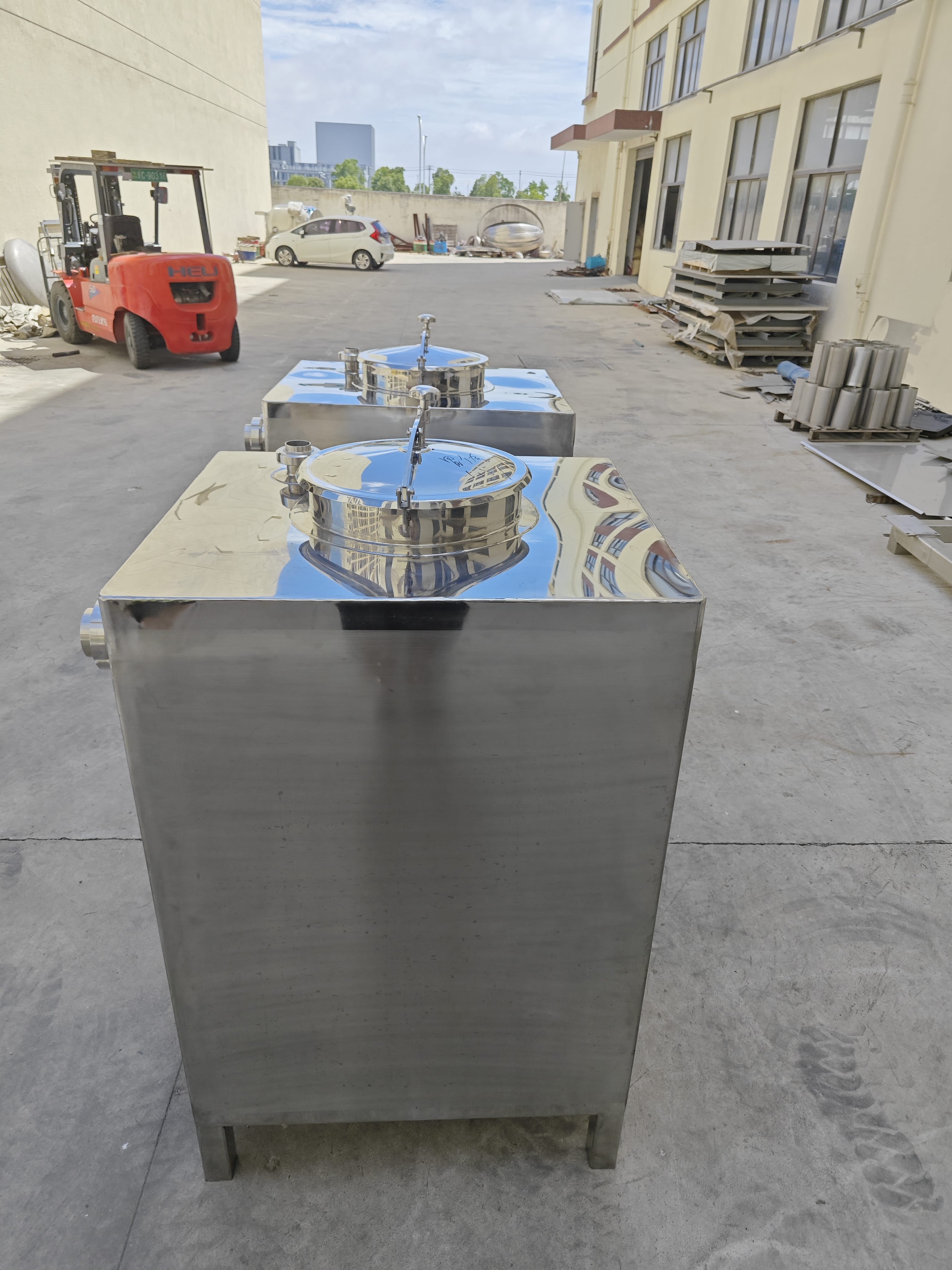

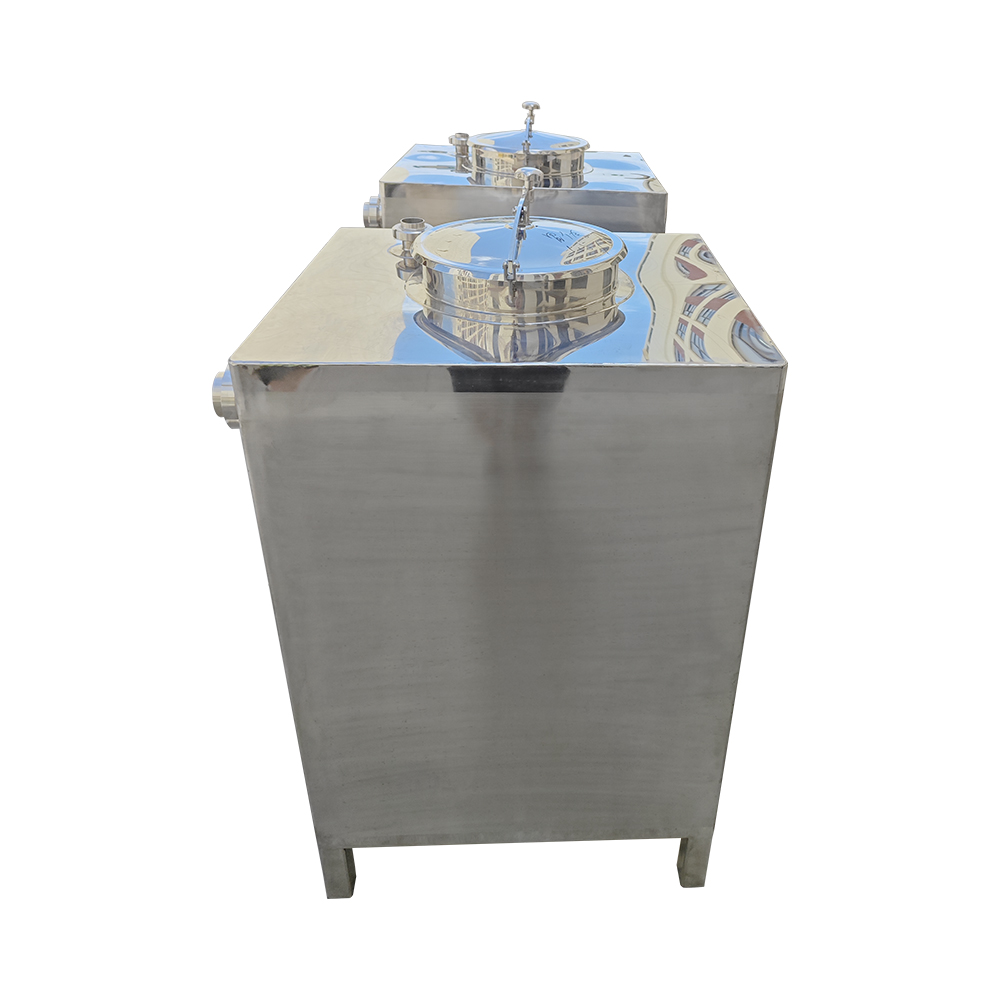

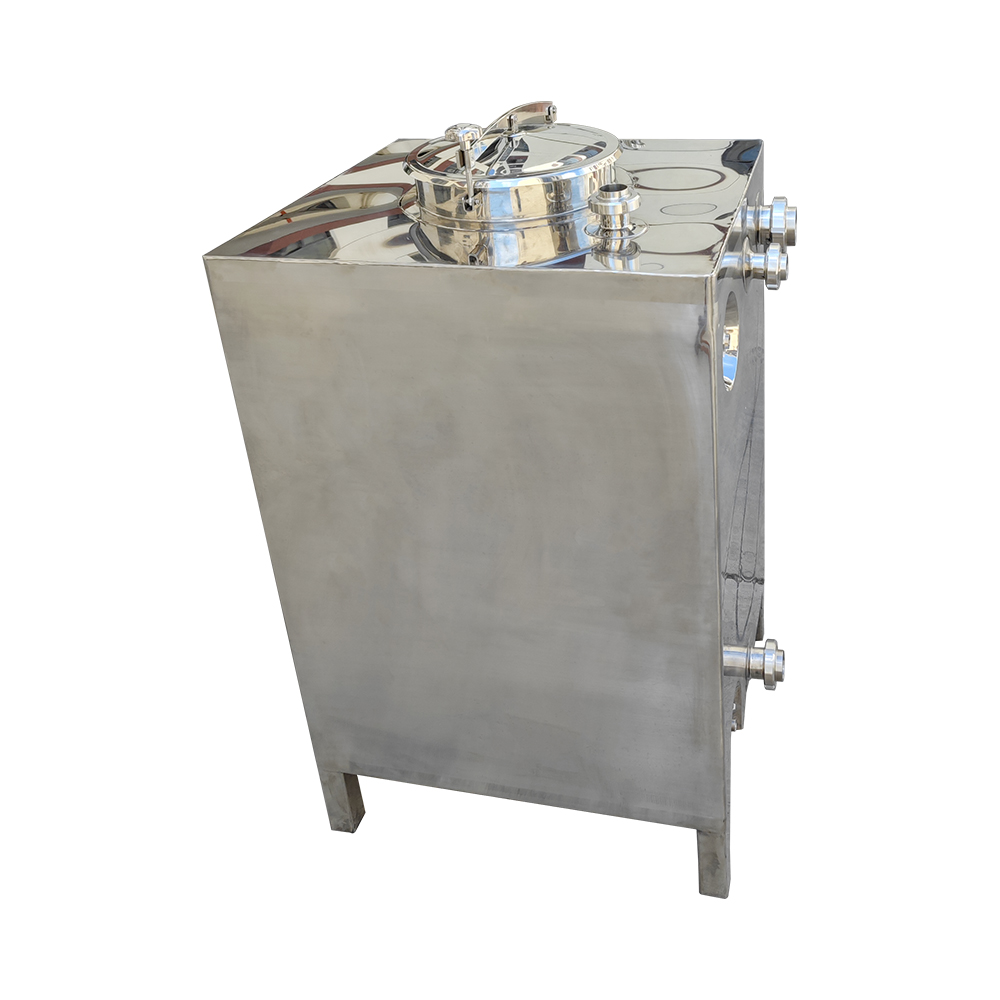

A square stainless steel storage tank. The rectangular body saves floor space where the layout is tight or where tanks must be packed closely. A round quick-opening manway lid sits on top, three round connections are grouped on the front face, and the bottom outlet is fitted with a ball valve. The tank stands on short legs. Used for storage, blending and holding in food, beverage and personal care production.
STRUCTURE AND CONSTRUCTION

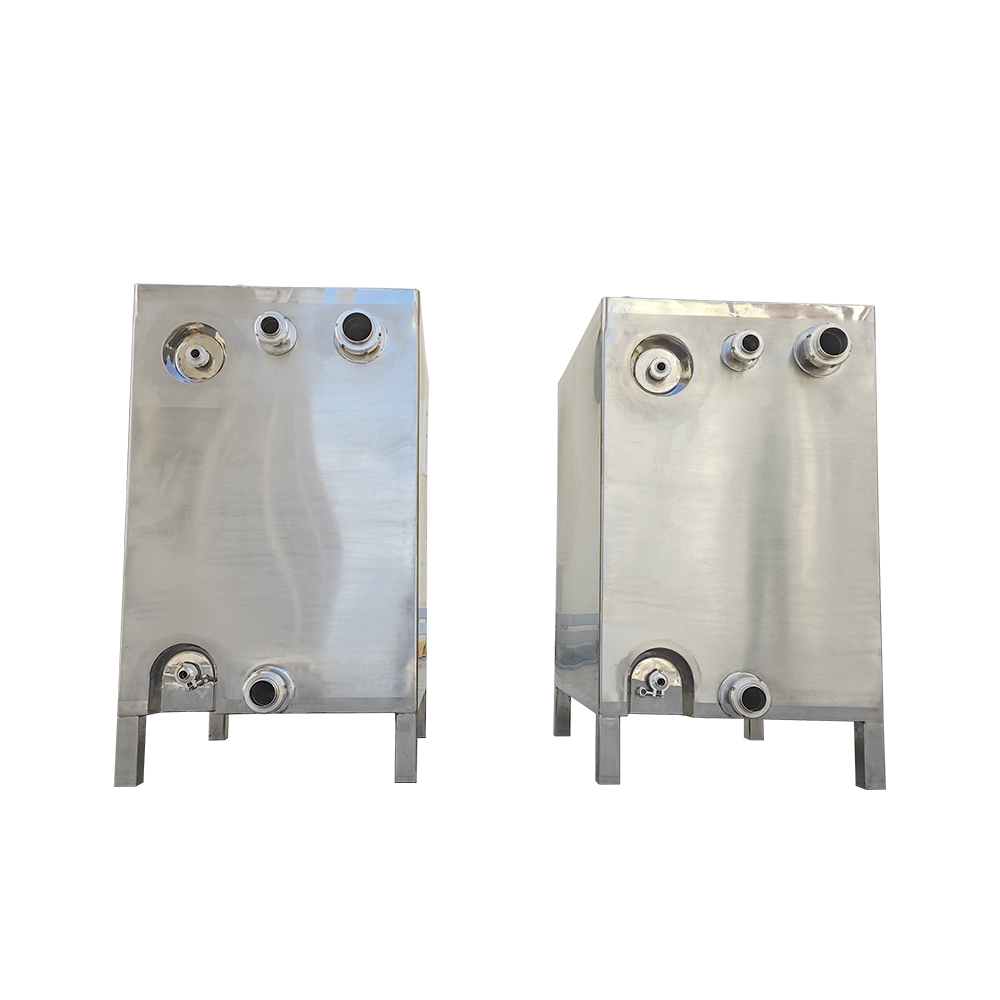

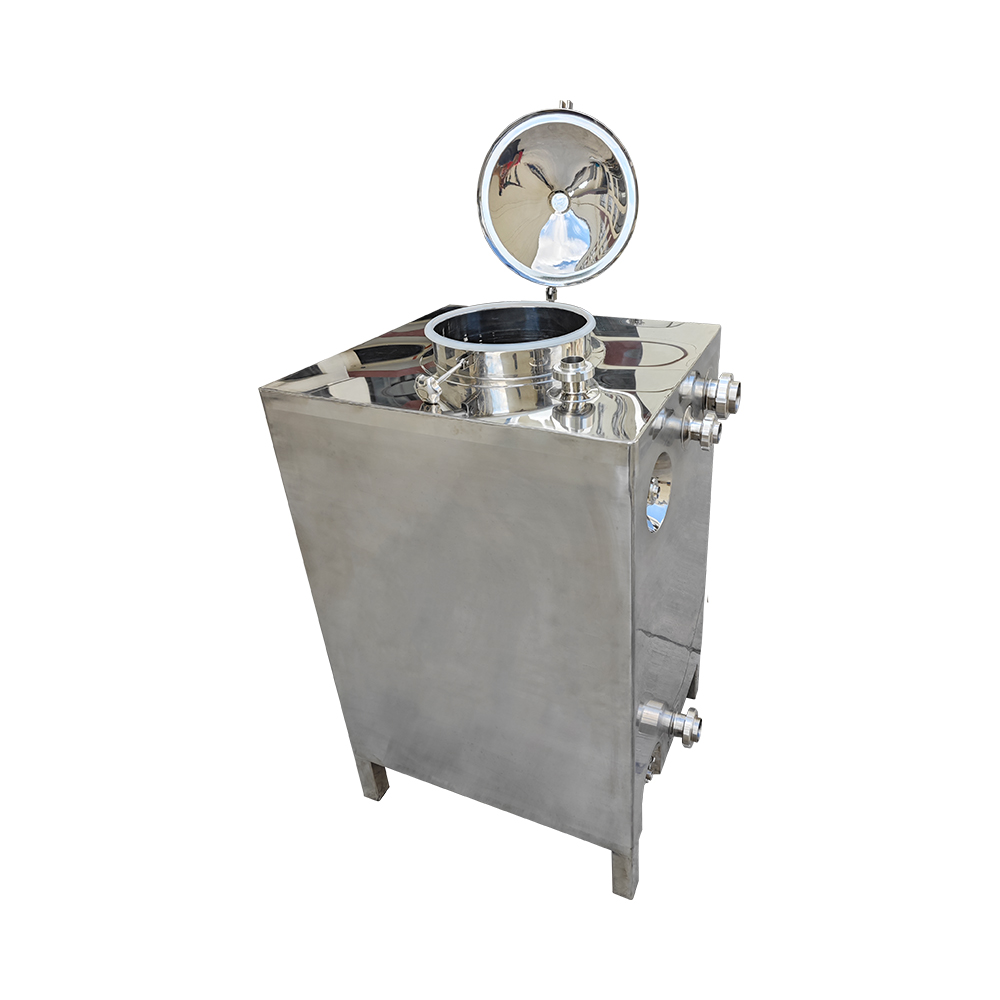

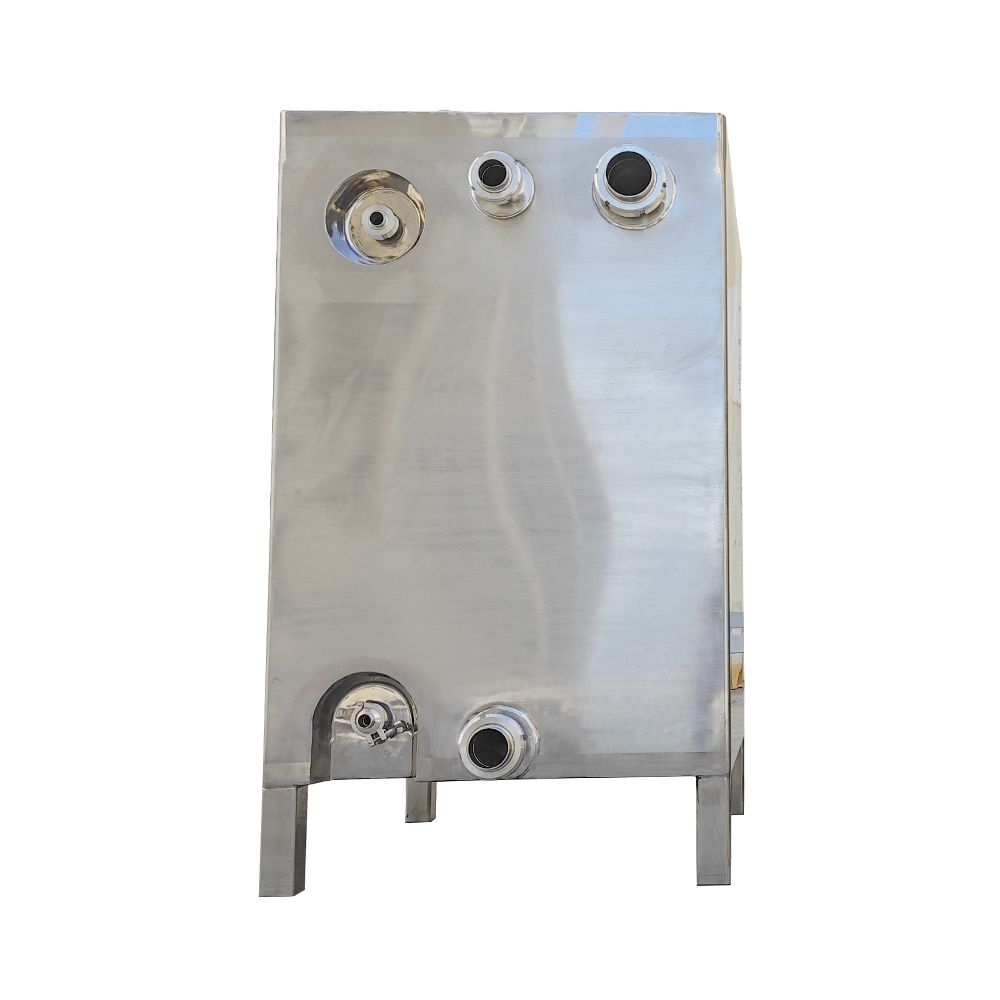

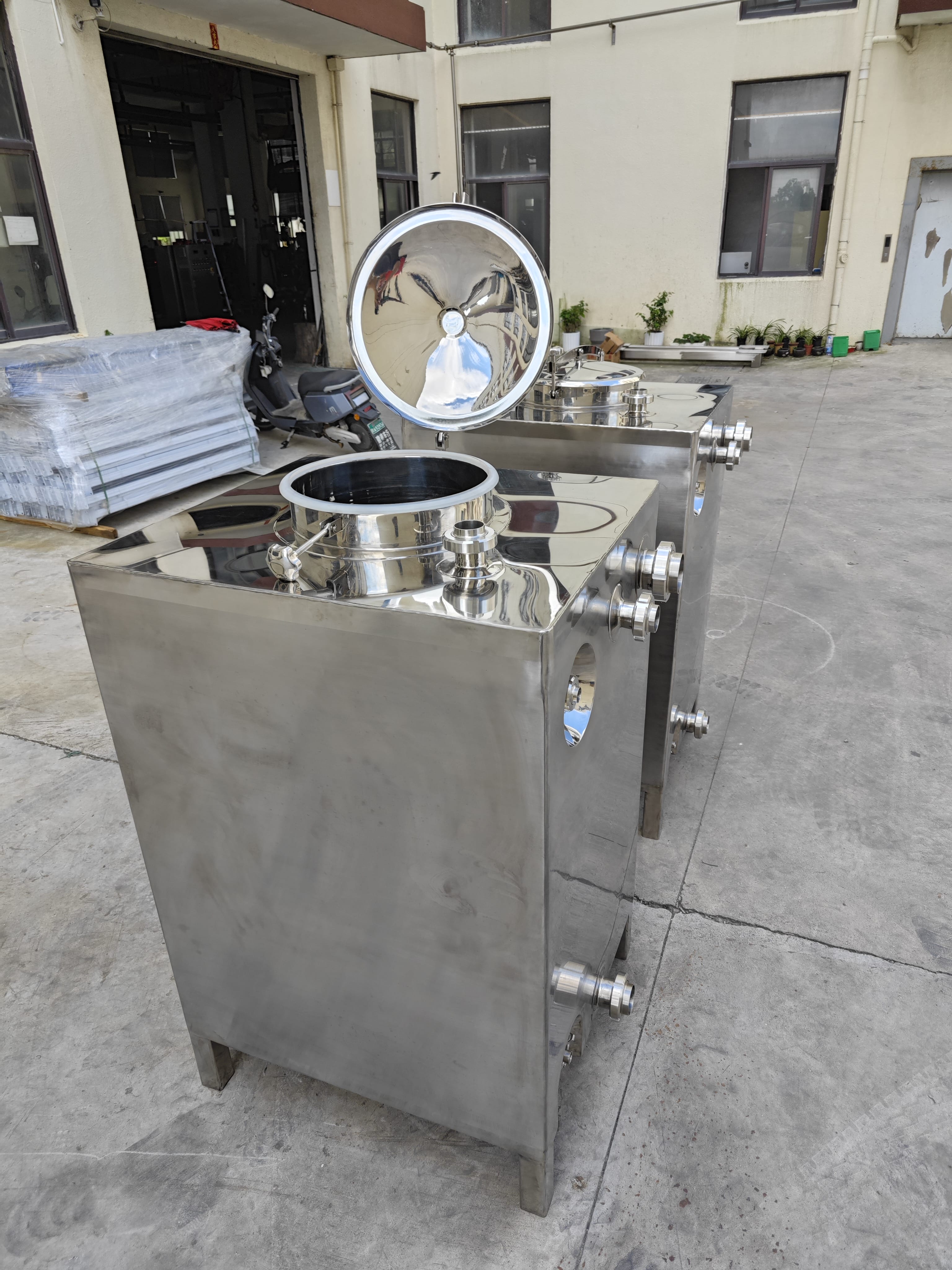

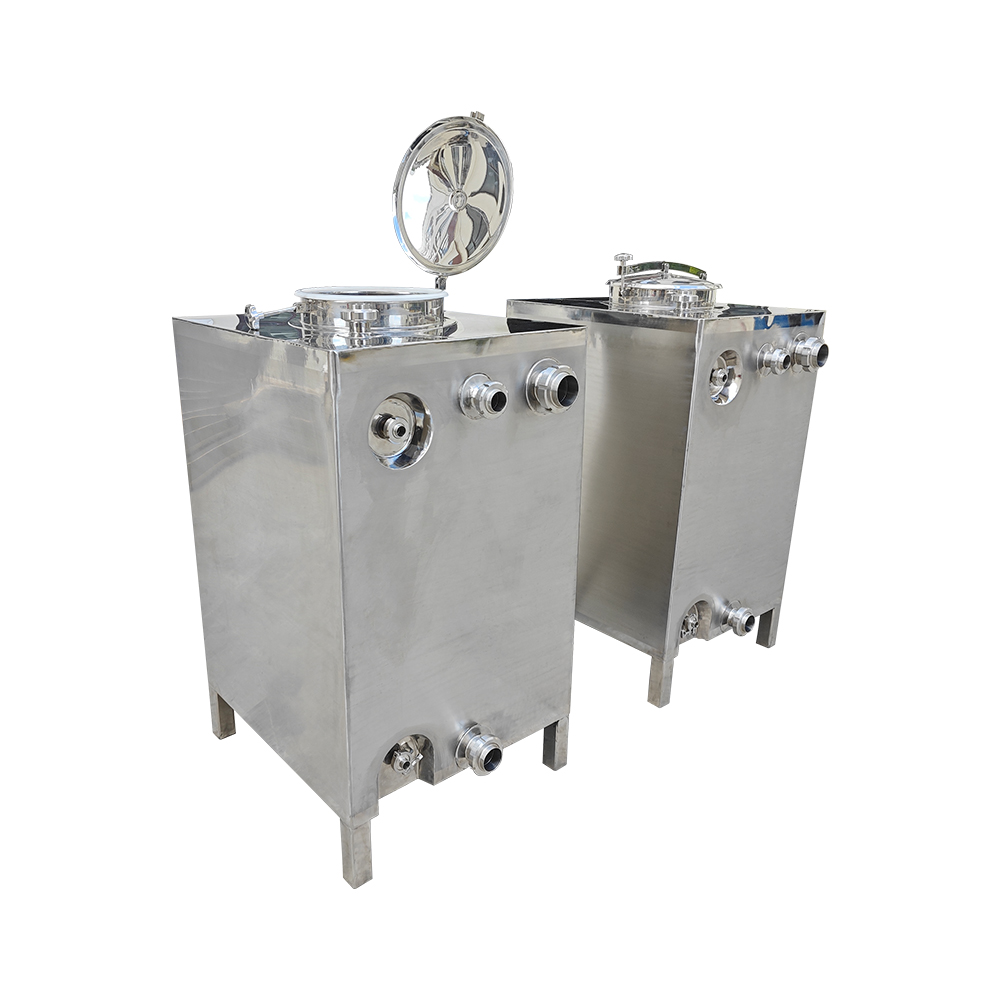

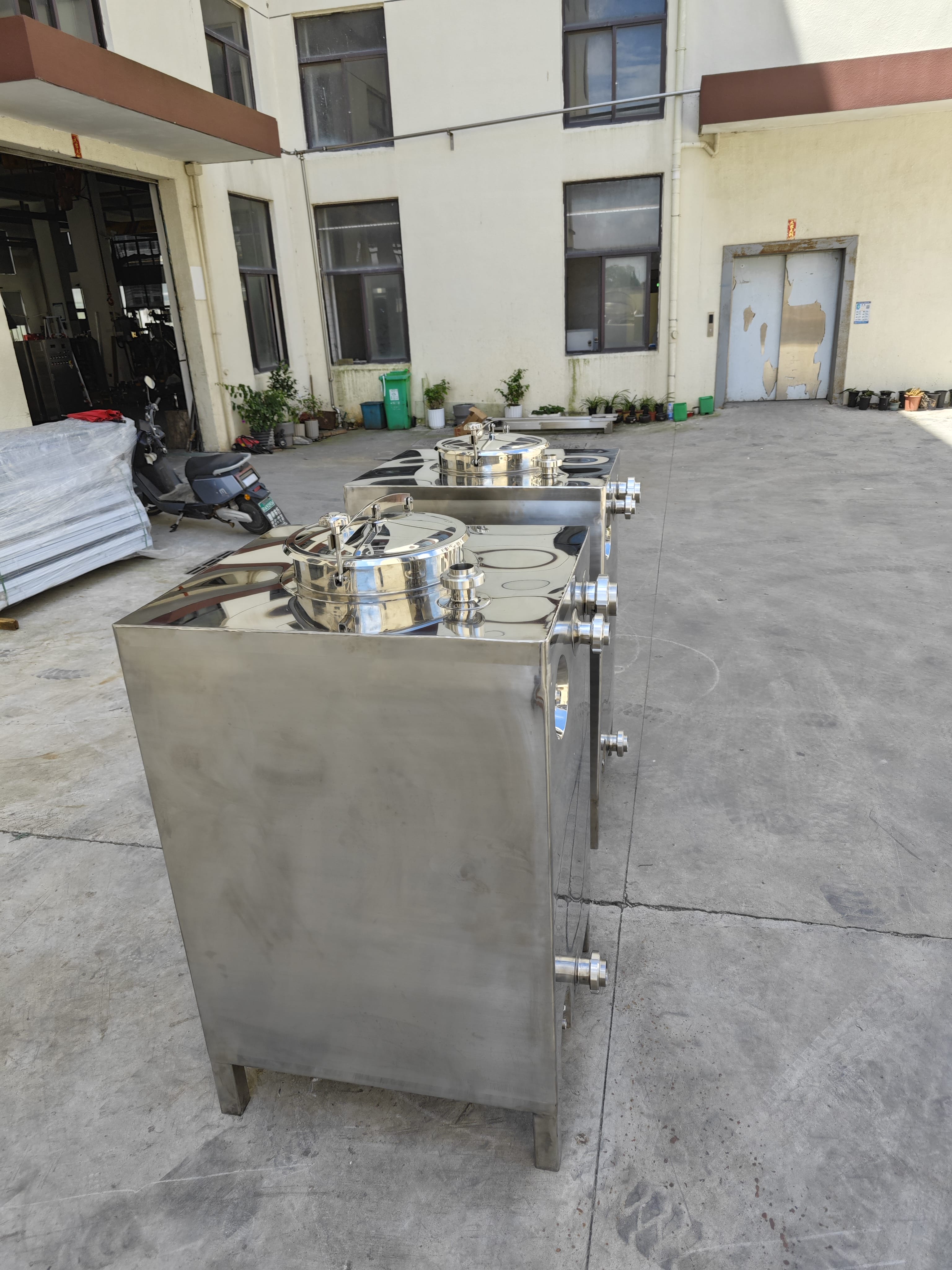

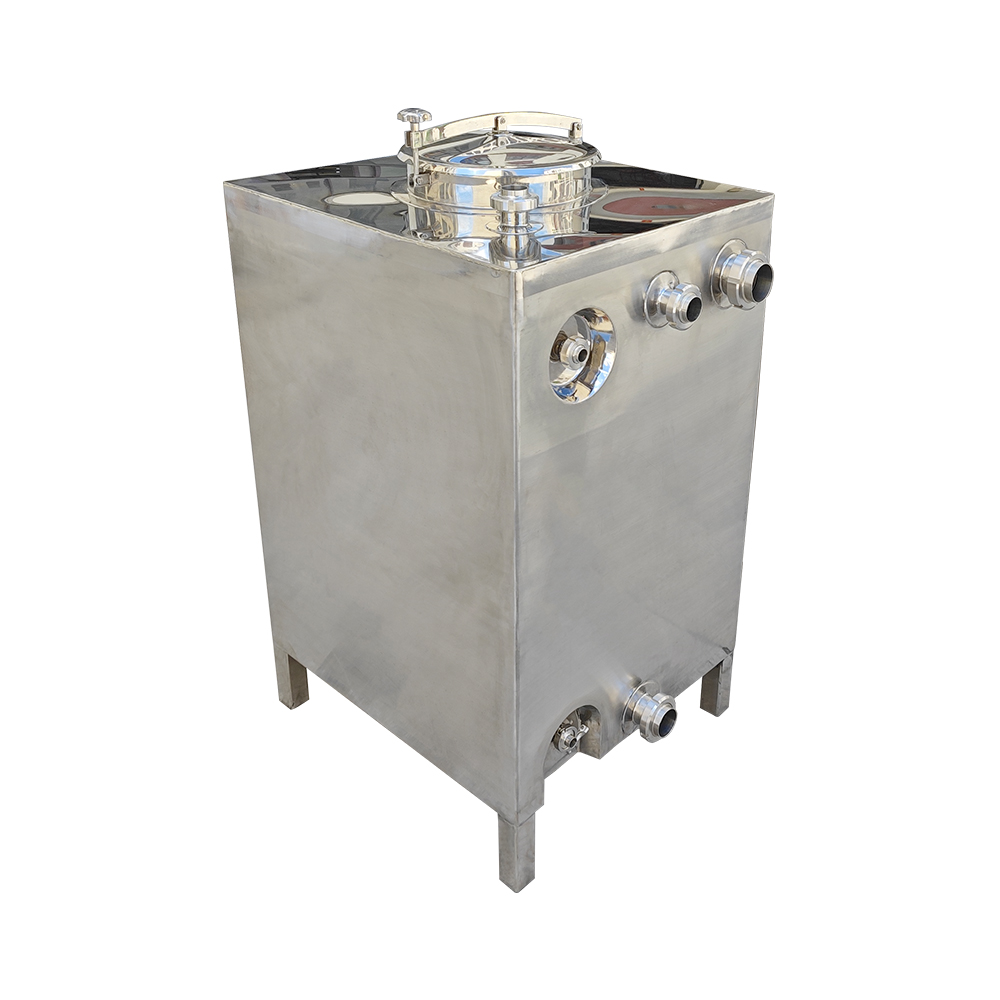

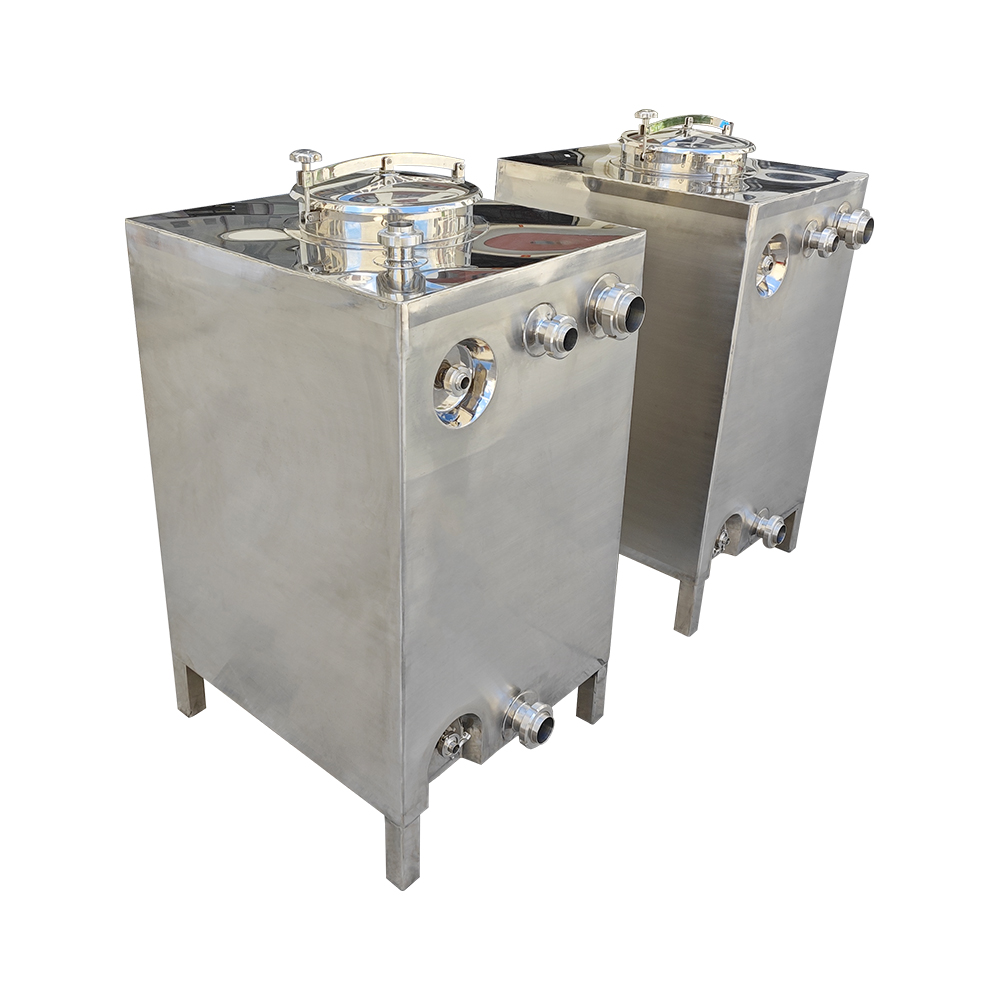

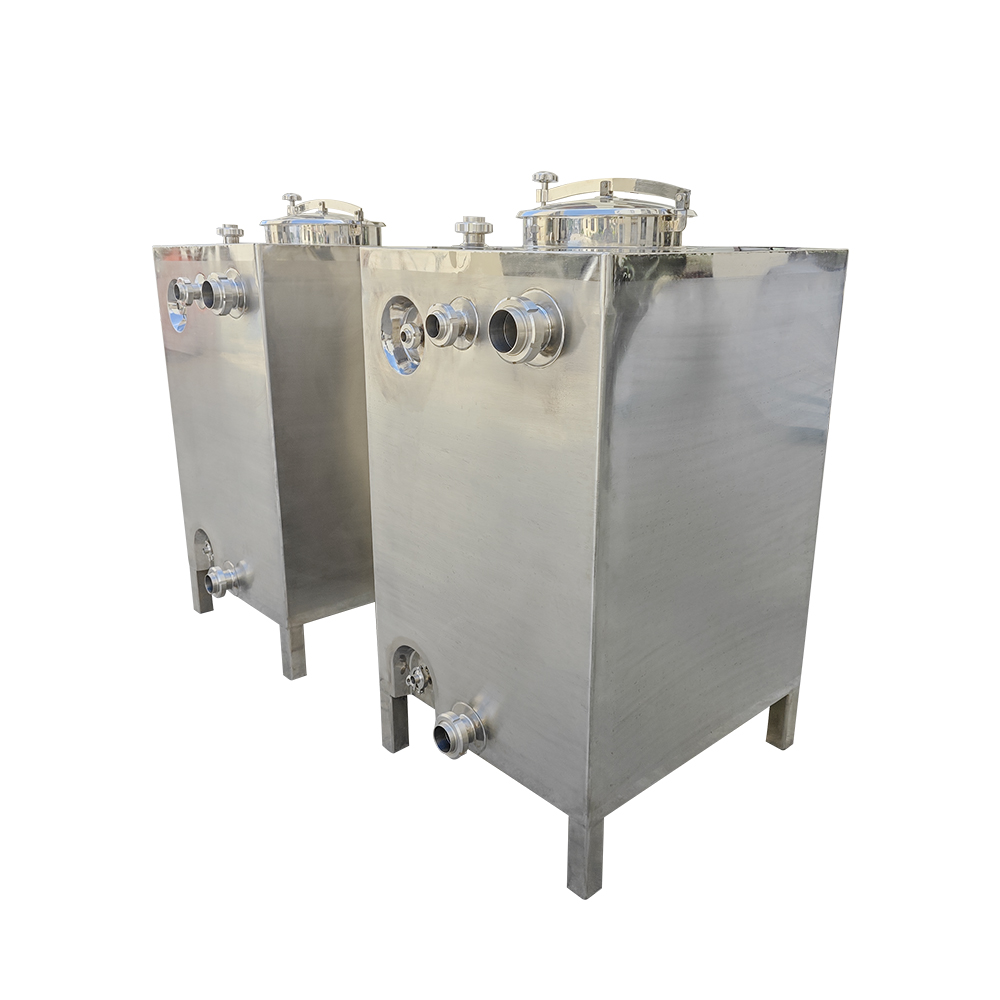

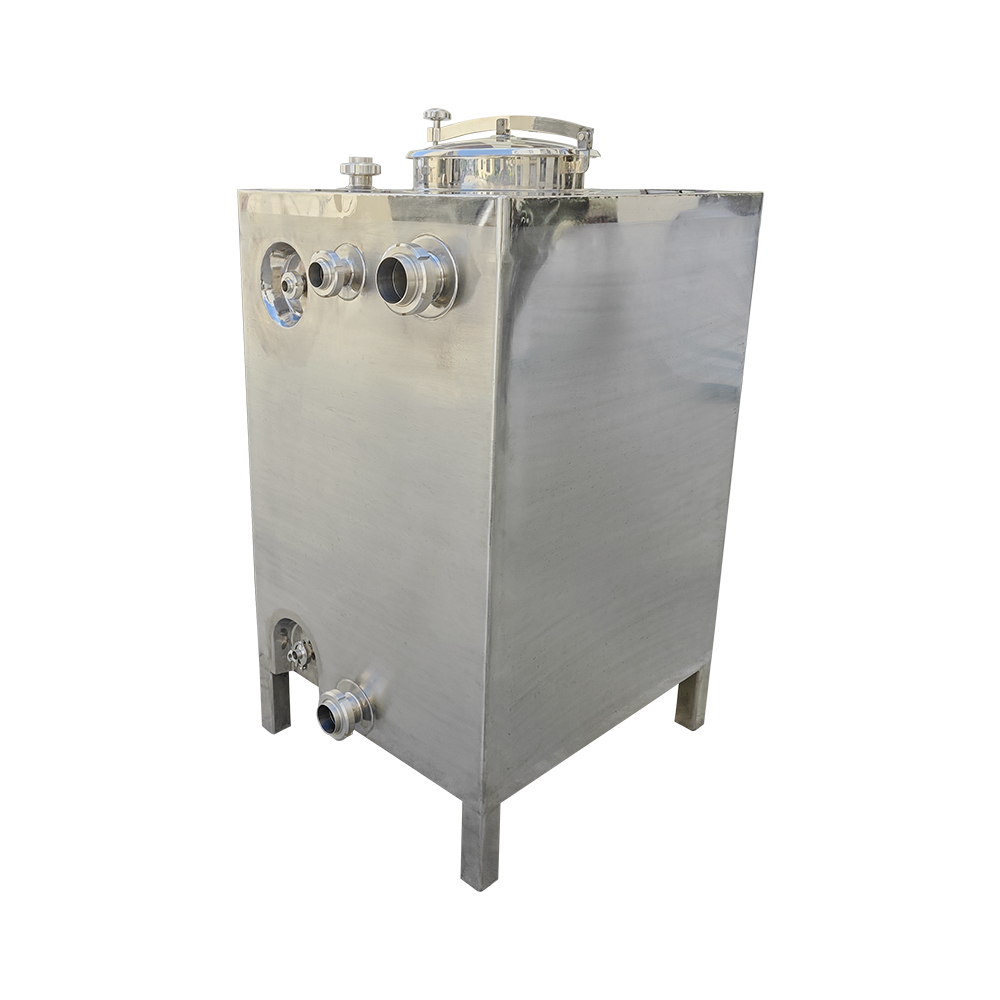

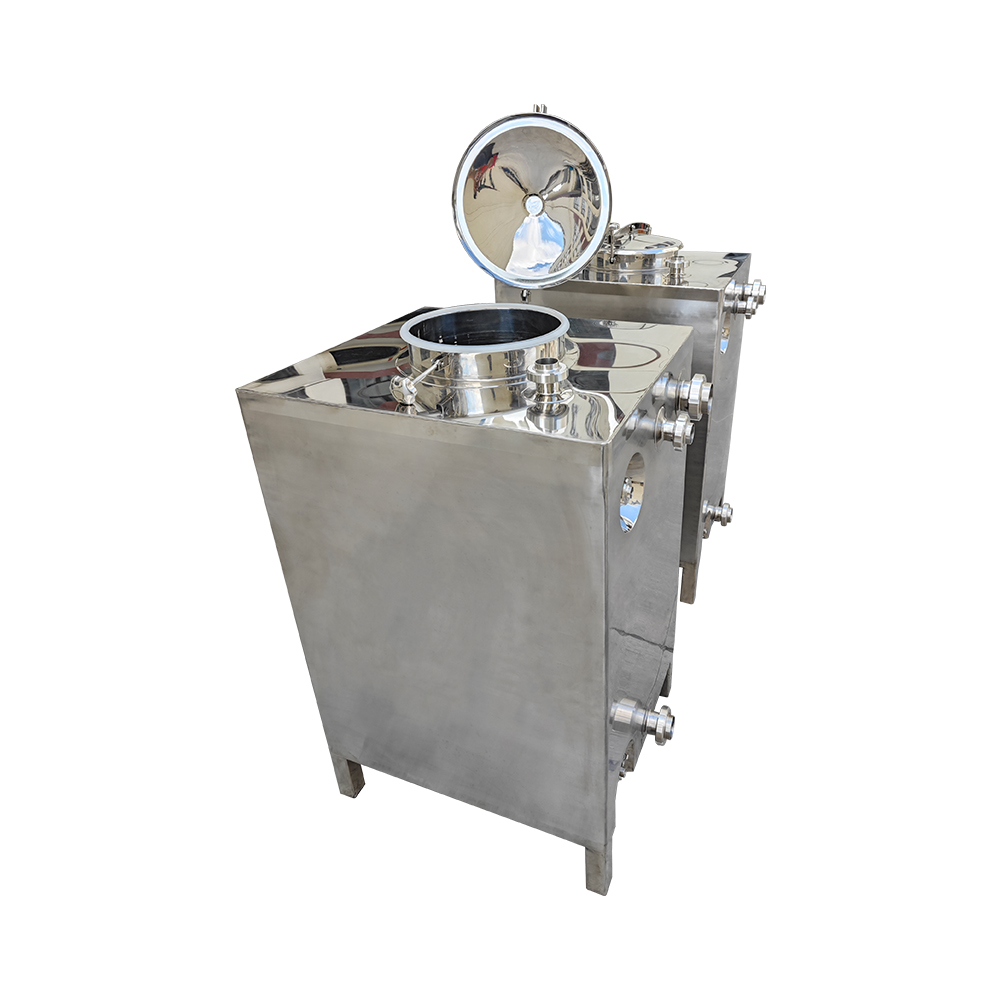

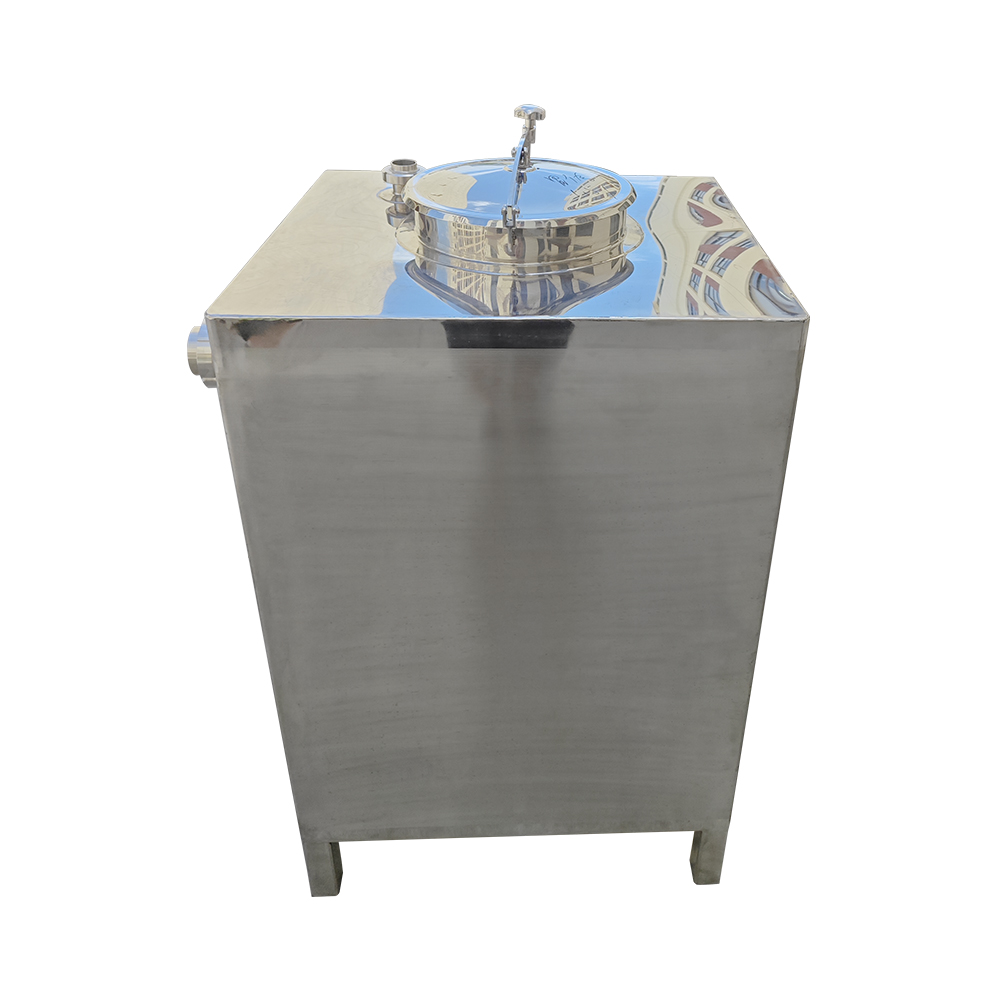

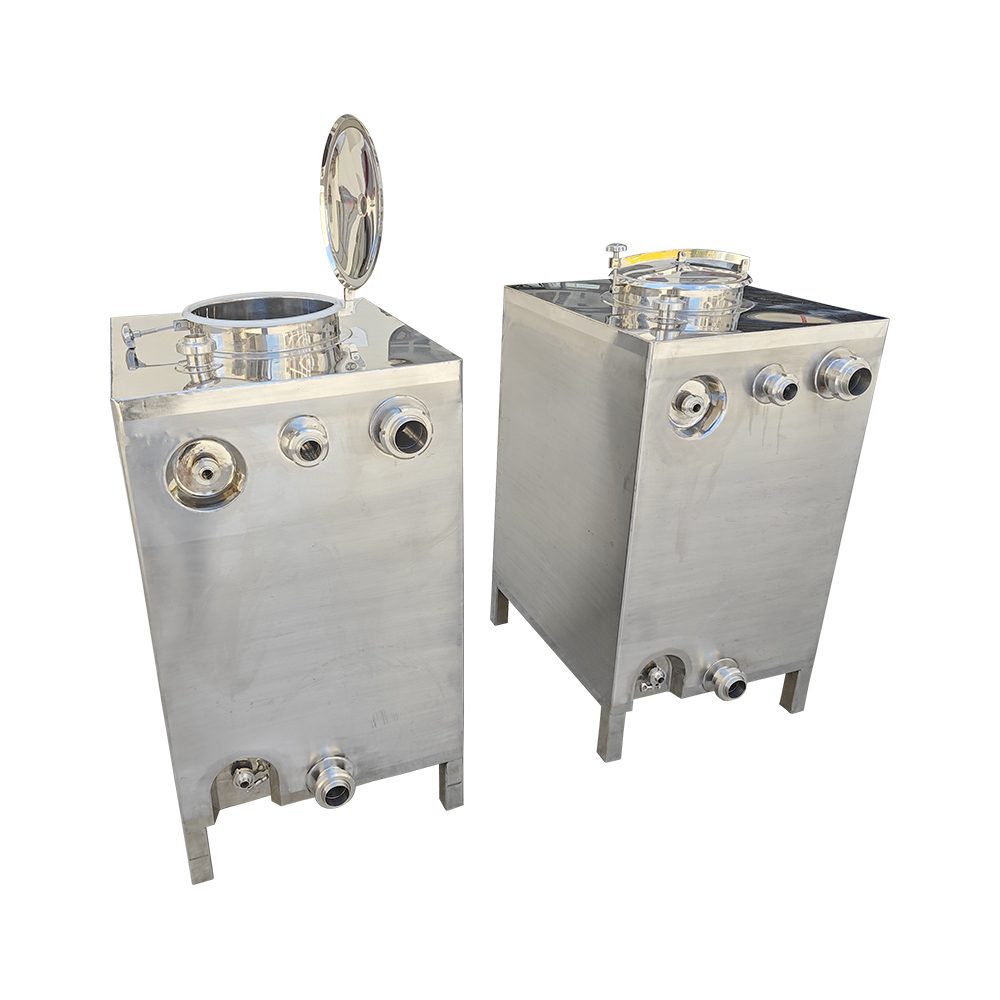

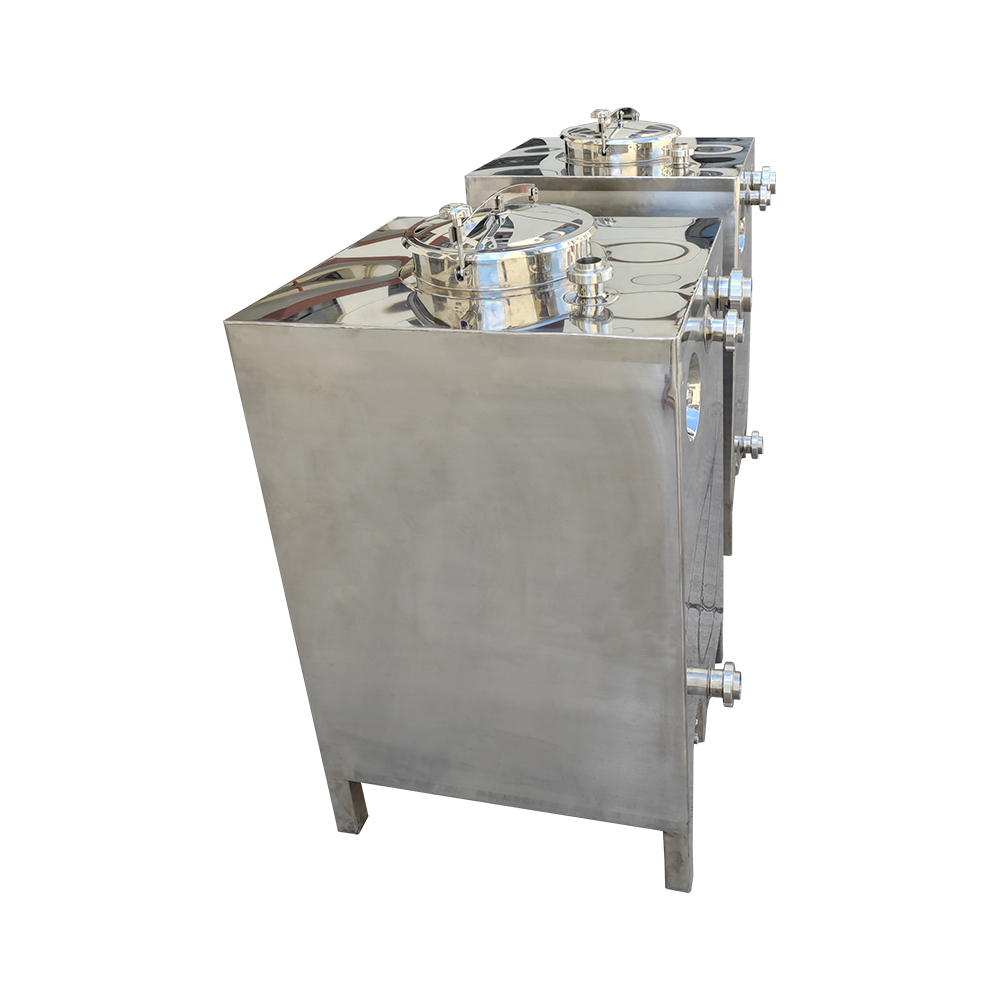

The body is rectangular. Product-contact surfaces are SS304 or SS316L. The round quick-opening manway lid on top is closed with swing bolts and gives access for charging, cleaning and inspection. Three round connections are grouped on the front face, two of them capped, and the bottom outlet is fitted with a ball valve. The tank stands on four short square-tube legs, and insulation and heating can be added as required.
VISIBLE CONFIGURATION (FROM PHOTOS)
| Body form | Square (rectangular) body |

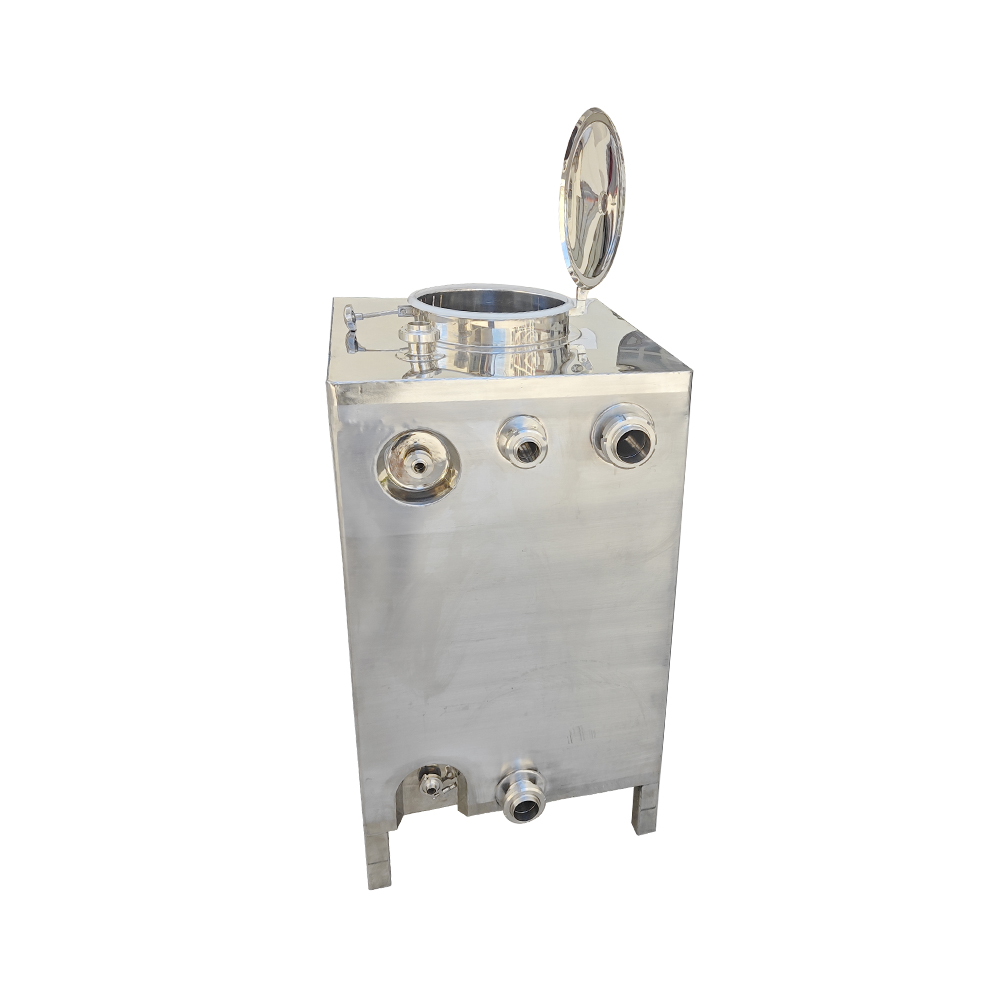

| Top | Round quick-opening manway lid, swing-bolt clamped, with handle |

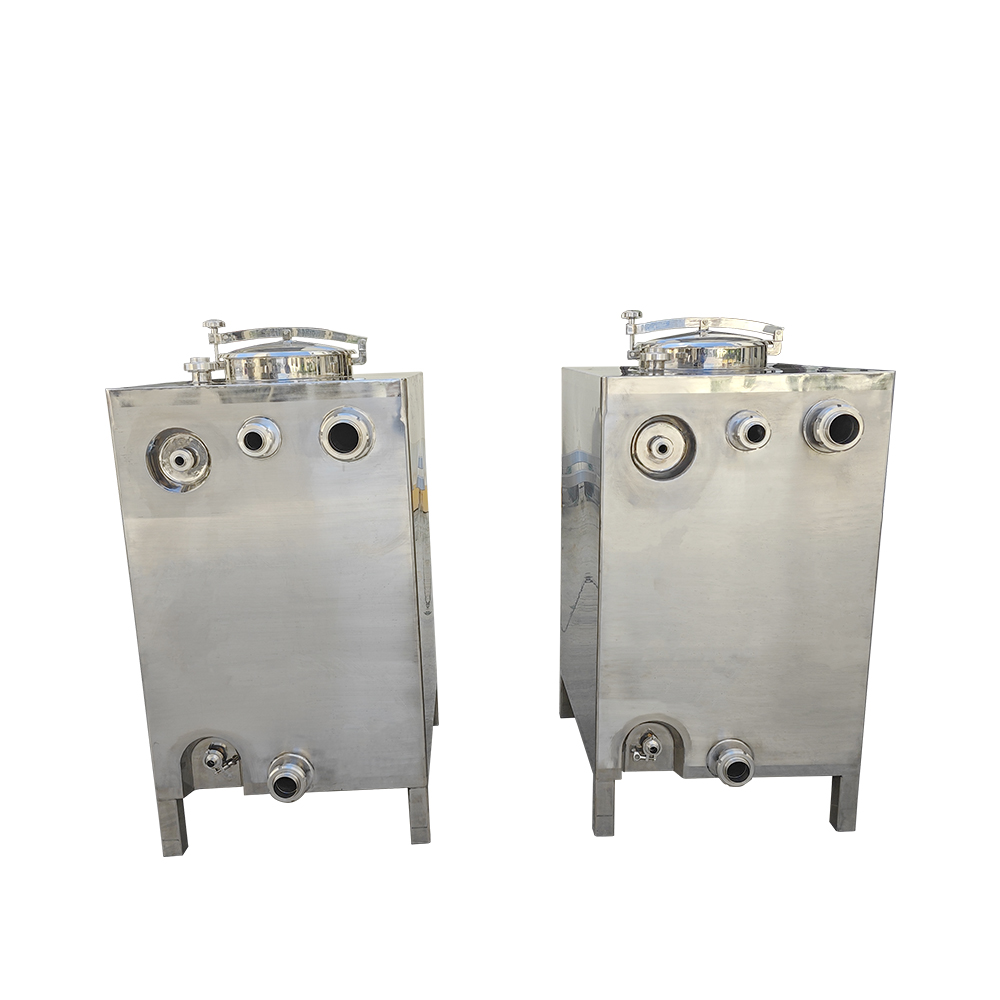

| Front ports | Three round connections, two capped and one larger open port |
| Outlet | Bottom outlet with ball valve |
| Support | Four short square-tube legs |
| Finish | Mirror-polished outer surface |
Note: the items above are structural features that can be confirmed from the product photographs. Volume, tank dimensions, wall thickness, design pressure and heating power are confirmed per order.
