Vertical Stainless Steel Storage Tank
- Voltage:
- customized
- Material:
- SUS304/316L
- Processing Types:
- liquid
- Feature:
- Temperature Control, Adjustable Legs, Double Wall, expandable system
- Power(w):
- 0.75-75KW
- Heating:
- electric ,steam
- Dimension(I*w*h):
- customized
- Customization:
- Available
- After-sales Service:
- Online/Spare Parts/Life-Long Aftersale Service
- Warranty:
- 1 Year
- weight (kg):
- 800 KG
PRODUCT OVERVIEW

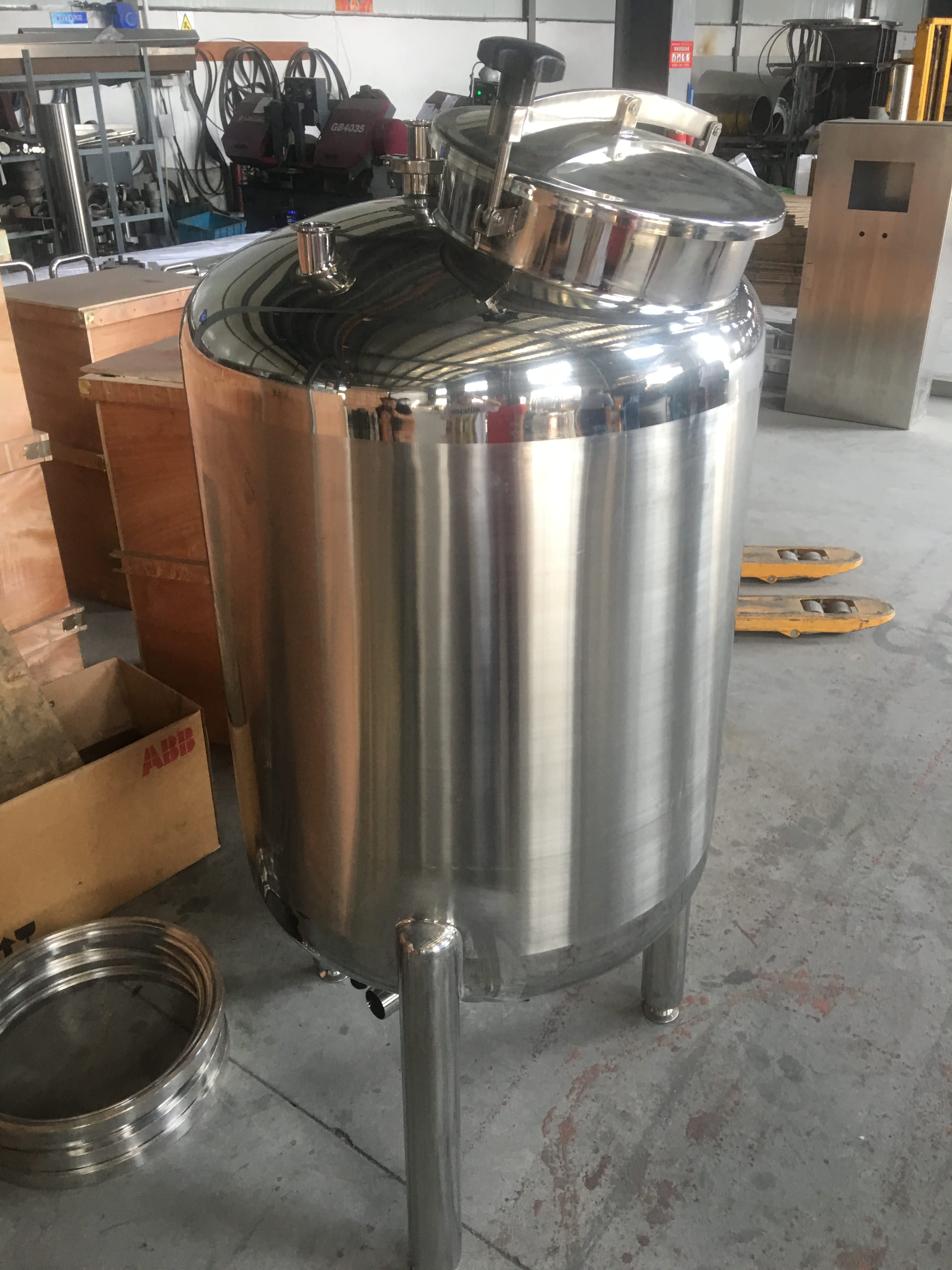

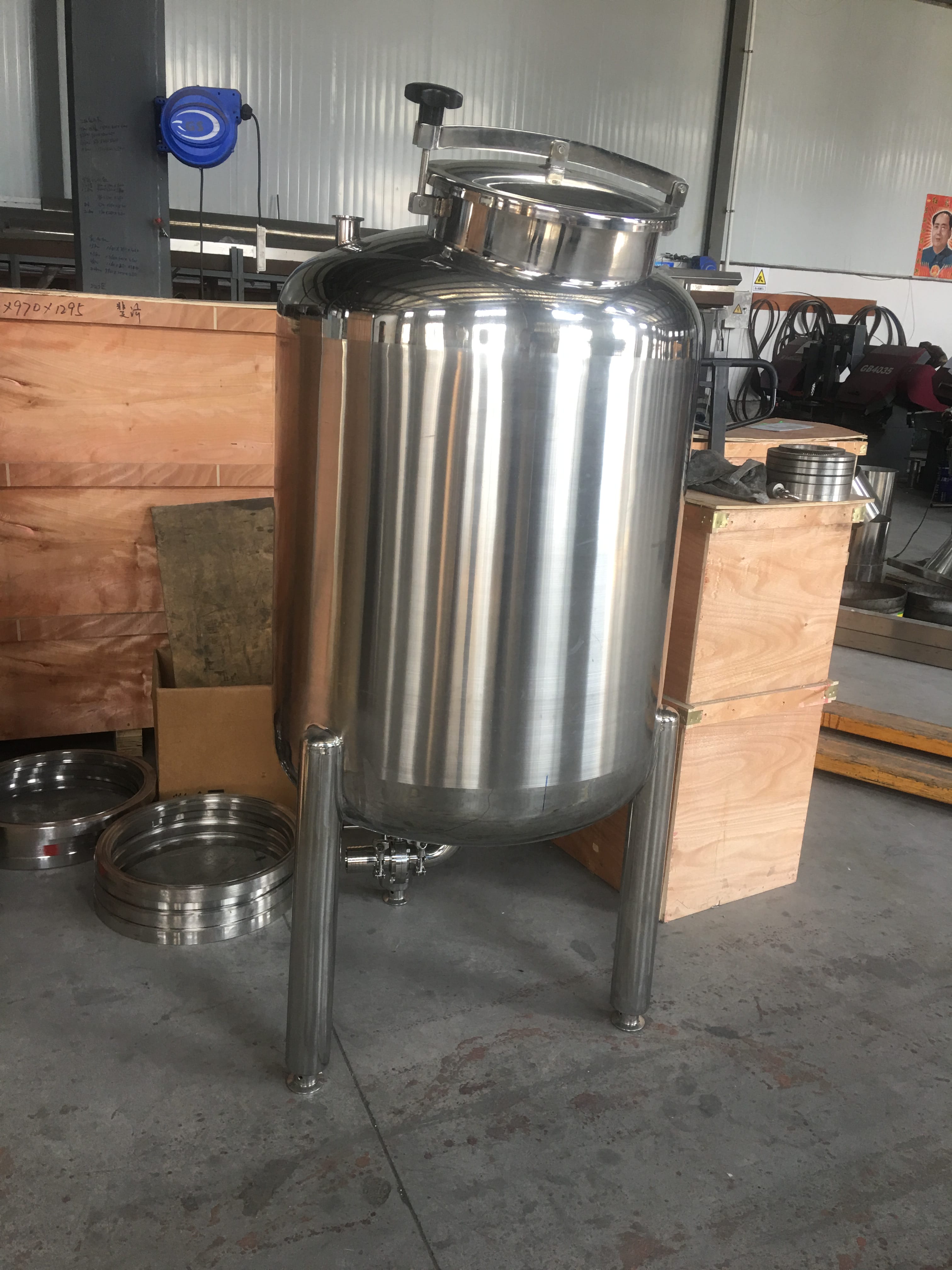

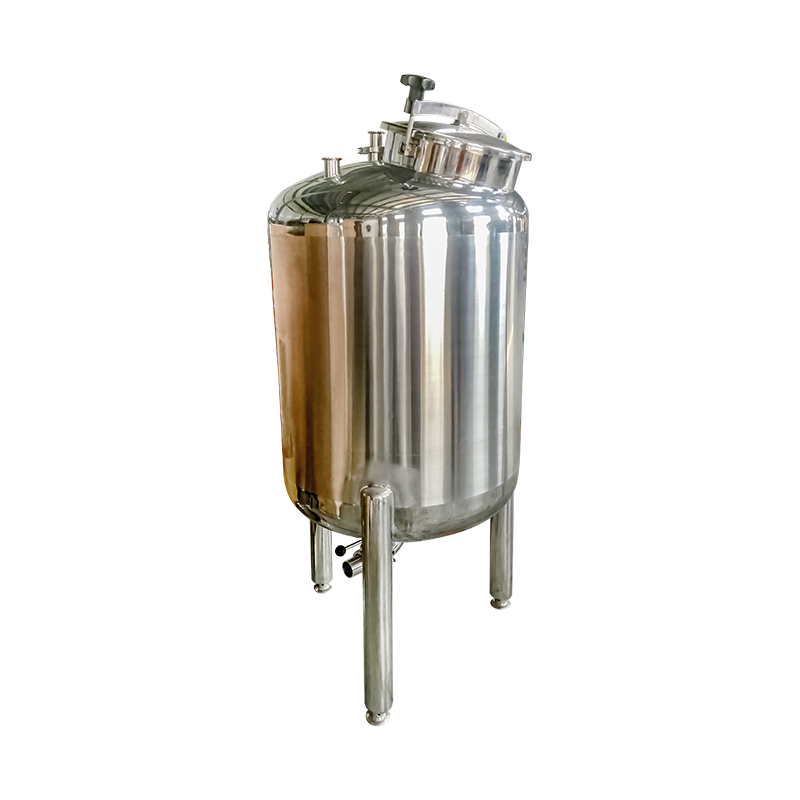

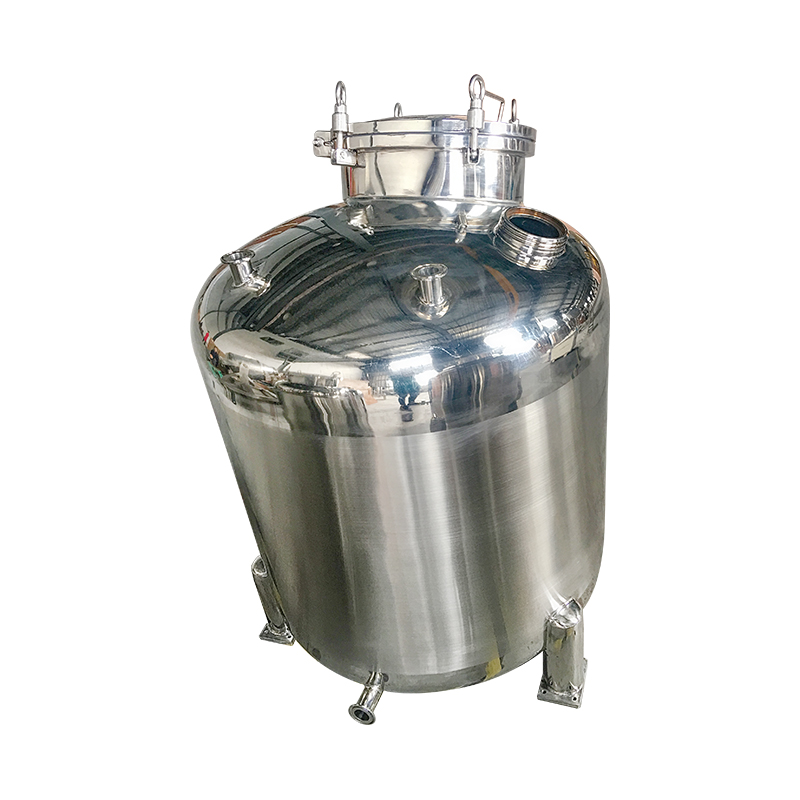

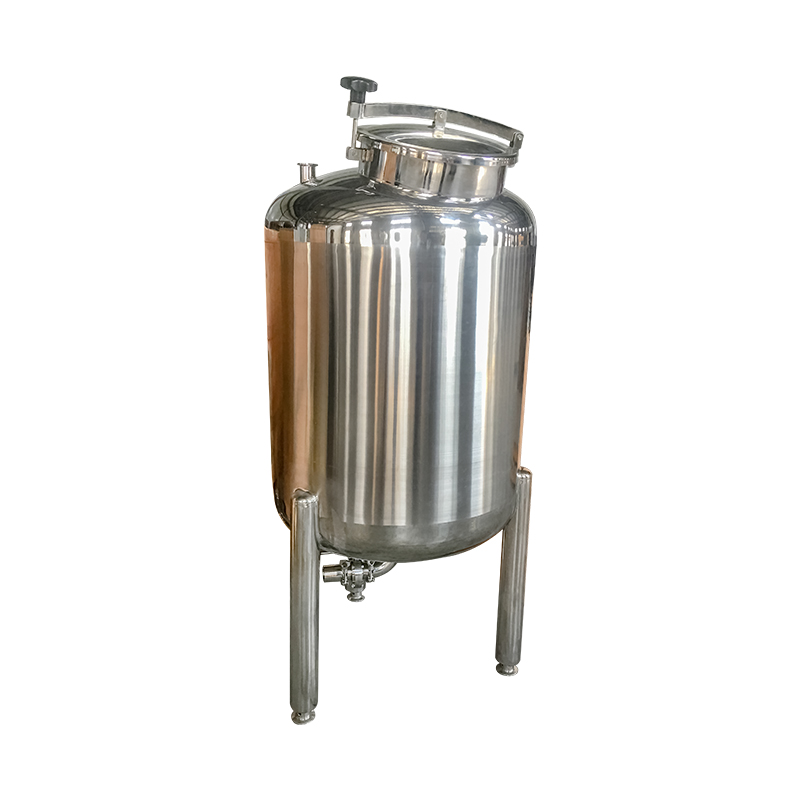

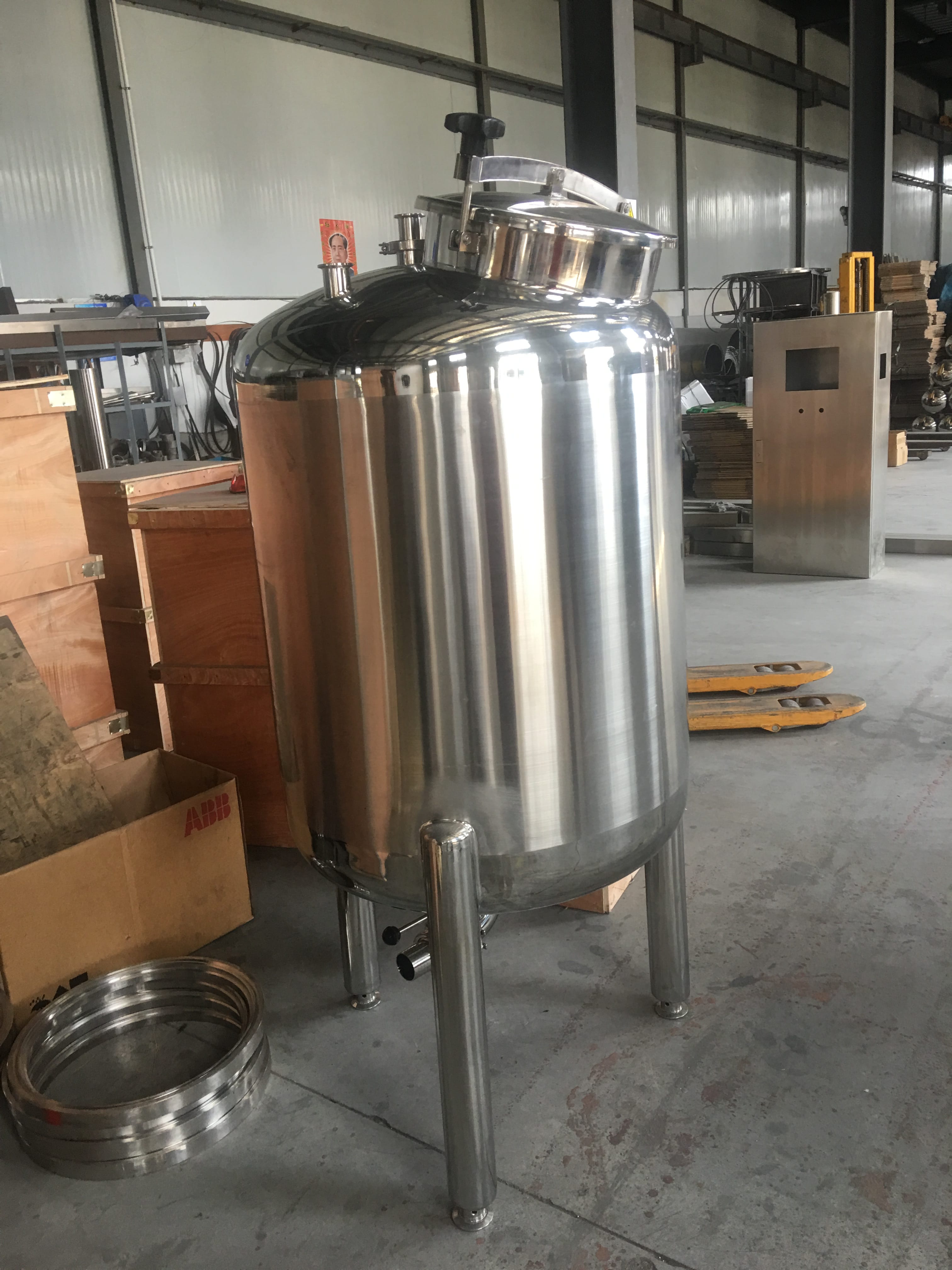

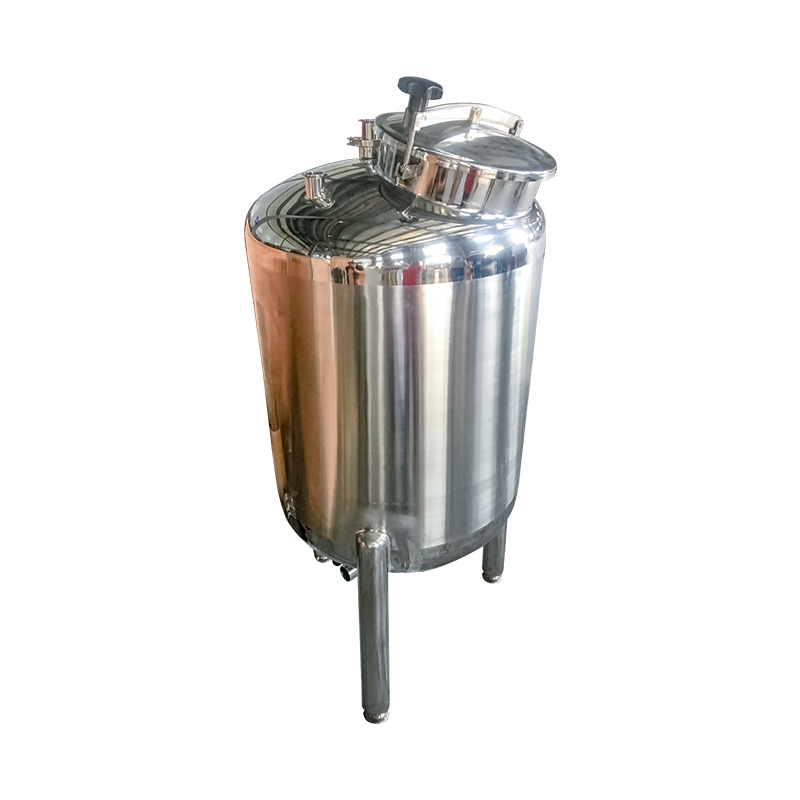

A vertical stainless steel storage tank with a cylindrical body on tubular legs, a quick-opening clamped top lid and a bottom outlet. Used for holding and transferring liquid products in food, beverage and general process industries. Built to order: tank dimensions, nozzle positions and connection layout are defined together with the customer.
STRUCTURE AND CONSTRUCTION
The body is a vertical cylinder. Product-contact surfaces are manufactured in SS304 or SS316L. A quick-opening clamped lid on top gives access for charging and inspection. The tank stands on tubular legs and discharges from a bottom outlet. Insulation, a heating jacket, level indication and additional hygienic connections can be added to suit the process.
VISIBLE CONFIGURATION (FROM PHOTOS)
| Body form | Vertical cylinder, dished heads |
| Top | Round quick-opening manway lid, swing-bolt clamped, with handle |
| Top nozzle | Small nozzle on the top head |
| Outlet | Bottom outlet with valve |
| Support | Three tubular legs, floor standing |
| Finish | Mirror-polished outer surface |
Note: the items above are structural features that can be confirmed from the product photographs. Volume, tank dimensions, wall thickness, design pressure and heating power are confirmed per order.
