Emulsifying Tank With Wall-scraping Agitator
- Capacity:
- 50 L, 100 L, 1000 L, 500 L, 200 L
- Voltage:
- 380/220V or customized
- Material:
- SUS304, SUS316L
- Power(w):
- 0.75KW~45KW/designed
- Type:
- hummus making machine
- Customization:
- Available
- After-sales Service:
- Online/Spare Parts/Life-Long Aftersale Service
- Warranty:
- 1 Year
- Condition:
- New
- Key Selling Points:
- Multifunctional
- Material Processed:
- Food
- Heating Method:
- by gas,by electric,by steam
Product Description

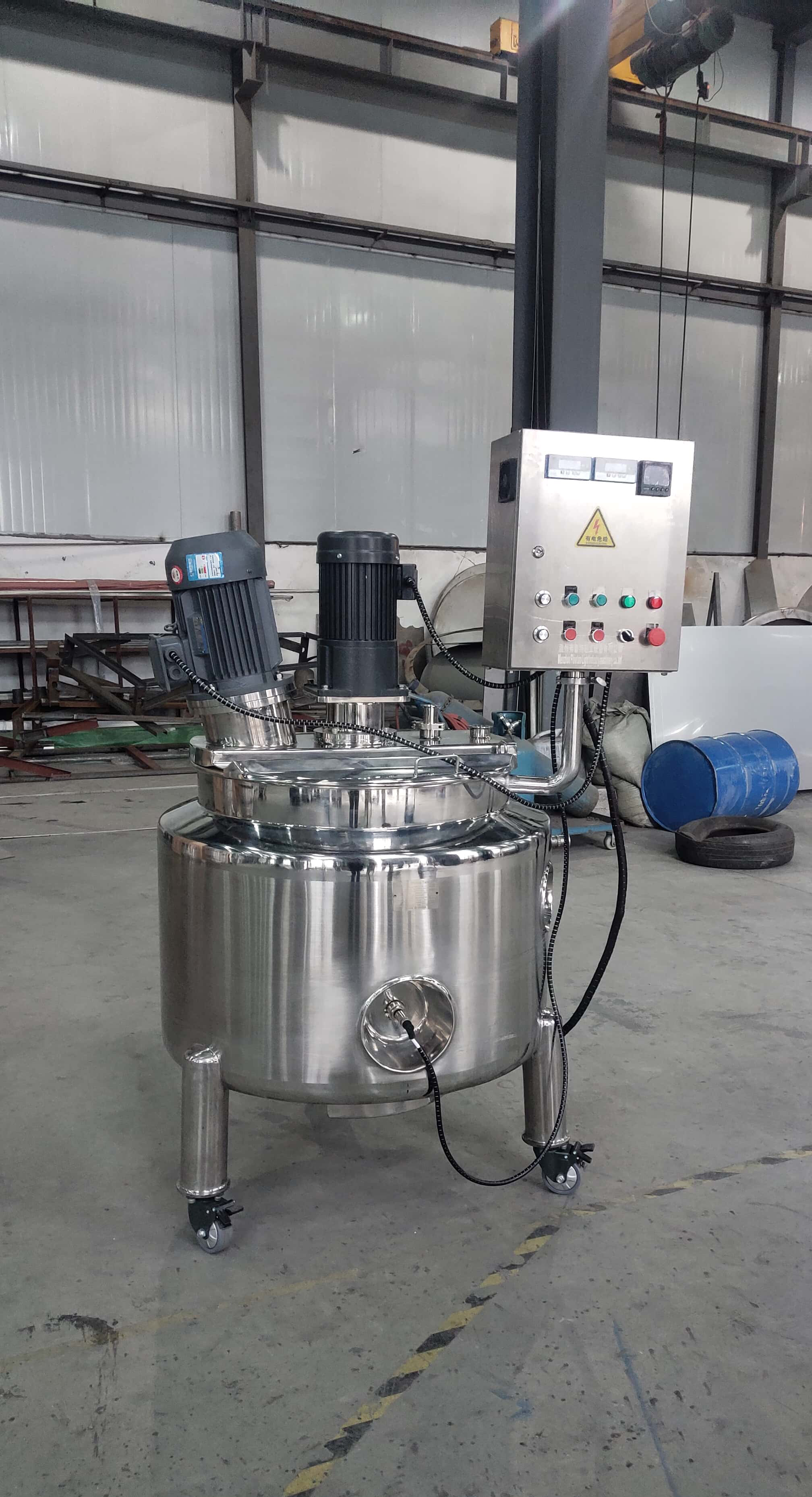

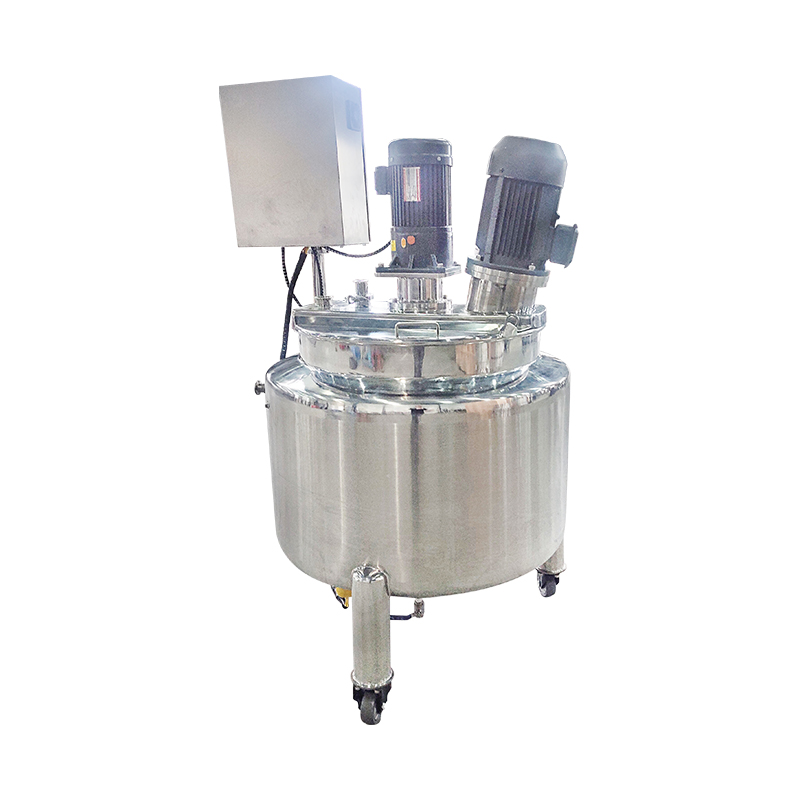

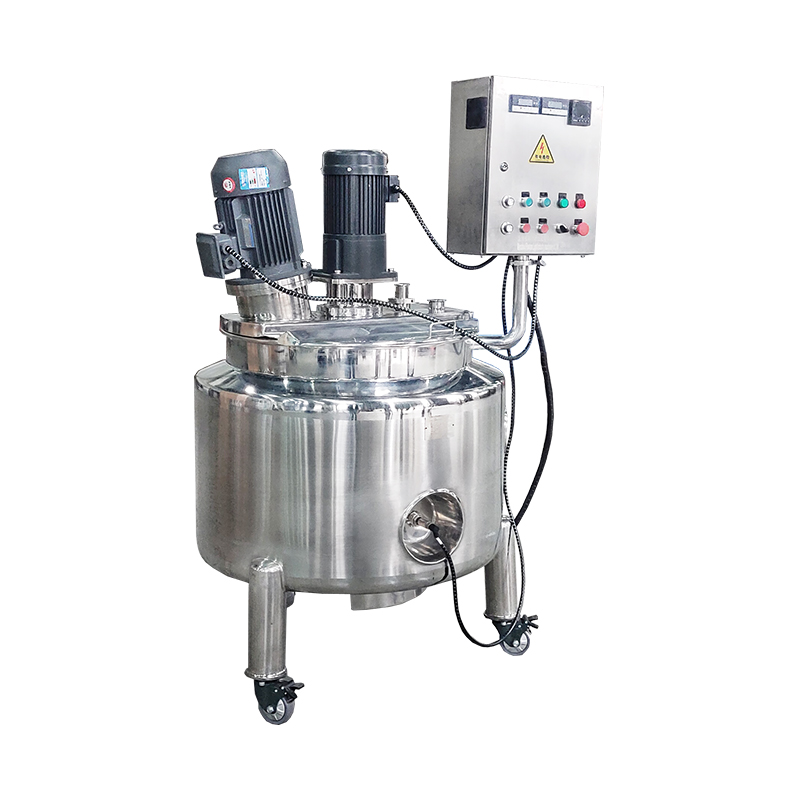

The wall-scraping emulsification tank features a vertical stainless steel vessel; the choice between a single-layer or jacketed design is determined by operating conditions, with optional jacketing and insulation configured according to requirements. It utilizes a mobile, electrically heated design incorporating wall-scraping agitation and emulsification capabilities. The agitation system supports wall-scraping mixing and includes emulsification functionality. The unit is designed for mobility to facilitate transport, while the overall design ensures ease of daily operation, cleaning, and maintenance.
Product Highlights
- Design: Vertical stainless-steel tank; single-layer or jacketed to requirement; Jacket and insulation available to requirement; Mobile electric-heated wall-scraping and emulsifying design
- Mixing and process: wall-scraping agitation; Emulsification capability
- Operation and maintenance: Mobile design for easy transport
Technical Specifications
| Item | Specification |
| Working volume | 200 L |
| Material | 316L body; 304 for legs and selected parts |
| Mixing method | wall-scraping agitation |
| Emulsification | Emulsification capability |
| Motor power | Wall-scraper motor 1.5 kW; emulsifier motor 4 kW |
| Mixing speed | Wall scraper 0-22 rpm; emulsifier 0-320 rpm |
| Heating power | Two electric heating elements, 6 kW total |
| Voltage / frequency | Motors 3P 220 V 60 Hz |
| Connections | 1.5" tri-clamp outlet with ball valve; 1.25" tri-clamp inlet; 2"-1" tri-clamp cleaning port; three cooling/heating/gas connections; two PT100 thermowells; three adjustable feet (drawing GMT-D020) |
| Support / mobility | Fixed legs |
